Panasonic KX-TG1233BXT

Ref.
No.
Part No. Part Name & Description Remarks
(RESISTORS)
R901 ERJ3GEYJ561 560
R902 ERJ3GEYJ820 82
R903 ERJ3GEYJ181 180
(CONNECTOR)
CN901 K1MY30BA0111 CONNECTOR
(OTHERS)
E1 L5DCBCB00017 LIQUID CRYSTAL DISPLAY
E2 PQHS10327Z TAPE, LCD
E3 PQHR11102Z GUIDE, LCD PS-HB
E4 PQJE10145X LEAD WIRE, FFC

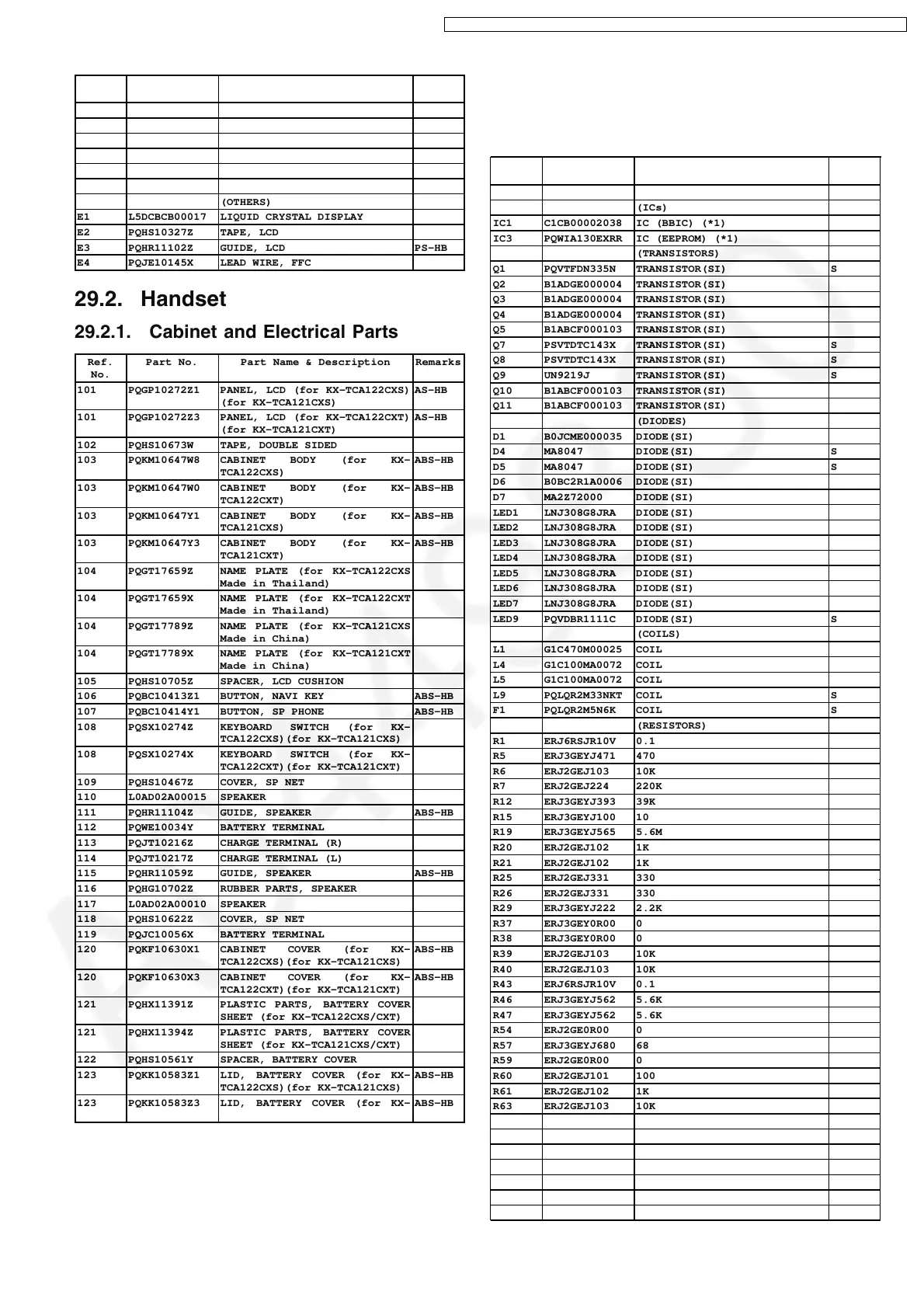

29.2. Handset
29.2.1. Cabinet and Electrical Parts
Ref.
No.
Part No. Part Name & Description Remarks
101 PQGP10272Z1 PANEL, LCD (for KX-TCA122CXS)
(for KX-TCA121CXS)
AS-HB
101 PQGP10272Z3 PANEL, LCD (for KX-TCA122CXT)
(for KX-TCA121CXT)
AS-HB
102 PQHS10673W TAPE, DOUBLE SIDED
103 PQKM10647W8 CABINET BODY (for KX-
TCA122CXS)
ABS-HB
103 PQKM10647W0 CABINET BODY (for KX-
TCA122CXT)
ABS-HB
103 PQKM10647Y1 CABINET BODY (for KX-
TCA121CXS)
ABS-HB
103 PQKM10647Y3 CABINET BODY (for KX-
TCA121CXT)
ABS-HB
104 PQGT17659Z NAME PLATE (for KX-TCA122CXS
Made in Thailand)
104 PQGT17659X NAME PLATE (for KX-TCA122CXT
Made in Thailand)
104 PQGT17789Z NAME PLATE (for KX-TCA121CXS
Made in China)
104 PQGT17789X NAME PLATE (for KX-TCA121CXT
Made in China)
105 PQHS10705Z SPACER, LCD CUSHION
106 PQBC10413Z1 BUTTON, NAVI KEY ABS-HB
107 PQBC10414Y1 BUTTON, SP PHONE ABS-HB
108 PQSX10274Z KEYBOARD SWITCH (for KX-
TCA122CXS)(for KX-TCA121CXS)
108 PQSX10274X KEYBOARD SWITCH (for KX-
TCA122CXT)(for KX-TCA121CXT)
109 PQHS10467Z COVER, SP NET
110 L0AD02A00015 SPEAKER
111 PQHR11104Z GUIDE, SPEAKER ABS-HB
112 PQWE10034Y BATTERY TERMINAL
113 PQJT10216Z CHARGE TERMINAL (R)
114 PQJT10217Z CHARGE TERMINAL (L)
115 PQHR11059Z GUIDE, SPEAKER ABS-HB
116 PQHG10702Z RUBBER PARTS, SPEAKER
117 L0AD02A00010 SPEAKER
118 PQHS10622Z COVER, SP NET
119 PQJC10056X BATTERY TERMINAL
120 PQKF10630X1 CABINET COVER (for KX-
TCA122CXS)(for KX-TCA121CXS)
ABS-HB
120 PQKF10630X3 CABINET COVER (for KX-
TCA122CXT)(for KX-TCA121CXT)
ABS-HB
121 PQHX11391Z PLASTIC PARTS, BATTERY COVER
SHEET (for KX-TCA122CXS/CXT)
121 PQHX11394Z PLASTIC PARTS, BATTERY COVER
SHEET (for KX-TCA121CXS/CXT)
122 PQHS10561Y SPACER, BATTERY COVER
123 PQKK10583Z1 LID, BATTERY COVER (for KX-
TCA122CXS)(for KX-TCA121CXS)
ABS-HB
123 PQKK10583Z3 LID, BATTERY COVER (for KX-
TCA122CXT)(for KX-TCA121CXT)
ABS-HB
29.2.2. Main P.C.Board Parts
Note:
(*1) When replacing IC1 or IC3, data needs to be written to
them with PQZZTG1233BX. Refer to Handset (P.43) of
THINGS TO DO AFTER REPLACING IC .
(*2) When replacing the Handset LCD, see HOW TO
REPLACE THE HANDSET LCD (P.17).
Ref.
No.
Part No. Part Name & Description Remarks
PCB100 PQWPCA122CXR MAIN P.C.BOARD ASS´Y (RTL)
(ICs)
IC1 C1CB00002038 IC (BBIC) (*1)
IC3 PQWIA130EXRR IC (EEPROM) (*1)
(TRANSISTORS)
Q1 PQVTFDN335N TRANSISTOR(SI) S
Q2 B1ADGE000004 TRANSISTOR(SI)
Q3 B1ADGE000004 TRANSISTOR(SI)
Q4 B1ADGE000004 TRANSISTOR(SI)
Q5 B1ABCF000103 TRANSISTOR(SI)
Q7 PSVTDTC143X TRANSISTOR(SI) S
Q8 PSVTDTC143X TRANSISTOR(SI) S
Q9 UN9219J TRANSISTOR(SI) S
Q10 B1ABCF000103 TRANSISTOR(SI)
Q11 B1ABCF000103 TRANSISTOR(SI)
(DIODES)
D1 B0JCME000035 DIODE(SI)
D4 MA8047 DIODE(SI) S
D5 MA8047 DIODE(SI) S
D6 B0BC2R1A0006 DIODE(SI)
D7 MA2Z72000 DIODE(SI)
LED1 LNJ308G8JRA DIODE(SI)
LED2 LNJ308G8JRA DIODE(SI)
LED3 LNJ308G8JRA DIODE(SI)
LED4 LNJ308G8JRA DIODE(SI)
LED5 LNJ308G8JRA DIODE(SI)
LED6 LNJ308G8JRA DIODE(SI)
LED7 LNJ308G8JRA DIODE(SI)
LED9 PQVDBR1111C DIODE(SI) S
(COILS)
L1 G1C470M00025 COIL
L4 G1C100MA0072 COIL
L5 G1C100MA0072 COIL
L9 PQLQR2M33NKT COIL S
F1 PQLQR2M5N6K COIL S
(RESISTORS)
R1 ERJ6RSJR10V 0.1
R5 ERJ3GEYJ471 470
R6 ERJ2GEJ103 10K
R7 ERJ2GEJ224 220K
R12 ERJ3GEYJ393 39K
R15 ERJ3GEYJ100 10
R19 ERJ3GEYJ565 5.6M
R20 ERJ2GEJ102 1K
R21 ERJ2GEJ102 1K
R25 ERJ2GEJ331 330
R26 ERJ2GEJ331 330
R29 ERJ3GEYJ222 2.2K
R37 ERJ3GEY0R00 0
R38 ERJ3GEY0R00 0
R39 ERJ2GEJ103 10K
R40 ERJ2GEJ103 10K
R43 ERJ6RSJR10V 0.1
R46 ERJ3GEYJ562 5.6K
R47 ERJ3GEYJ562 5.6K
R54 ERJ2GE0R00 0
R57 ERJ3GEYJ680 68
R59 ERJ2GE0R00 0
R60 ERJ2GEJ101 100
R61 ERJ2GEJ102 1K
R63 ERJ2GEJ103 10K
R64 ERJ2GEJ103 10K
R68 ERJ2GEJ682 6.8K
R69 ERJ3EKF8203 820K
R70 ERJ3EKF4303 430K
R71 ERJ3GEYJ221 220
R72 ERJ2GEJ102 1K
R73 ERJ3GEYJ104 100K
81
KX-TG1233BXS / KX-TG1233BXT / KX-TCA122CXS / KX-TCA122CXT / KX-TCA121CXS / KX-TCA121CXT
