Panasonic KX-TG1233BXT

1. RTL (Retention Time Limited)
Note:
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability is dependant
on the type of assembly, and in accordance with the
laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
2. Important safety notice
Components identified by the
mark indicates special
characteristics important for safety. When replacing any of
these components, only use specified manufacture’s parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF)P=µµF
*Type & Wattage of Resistor

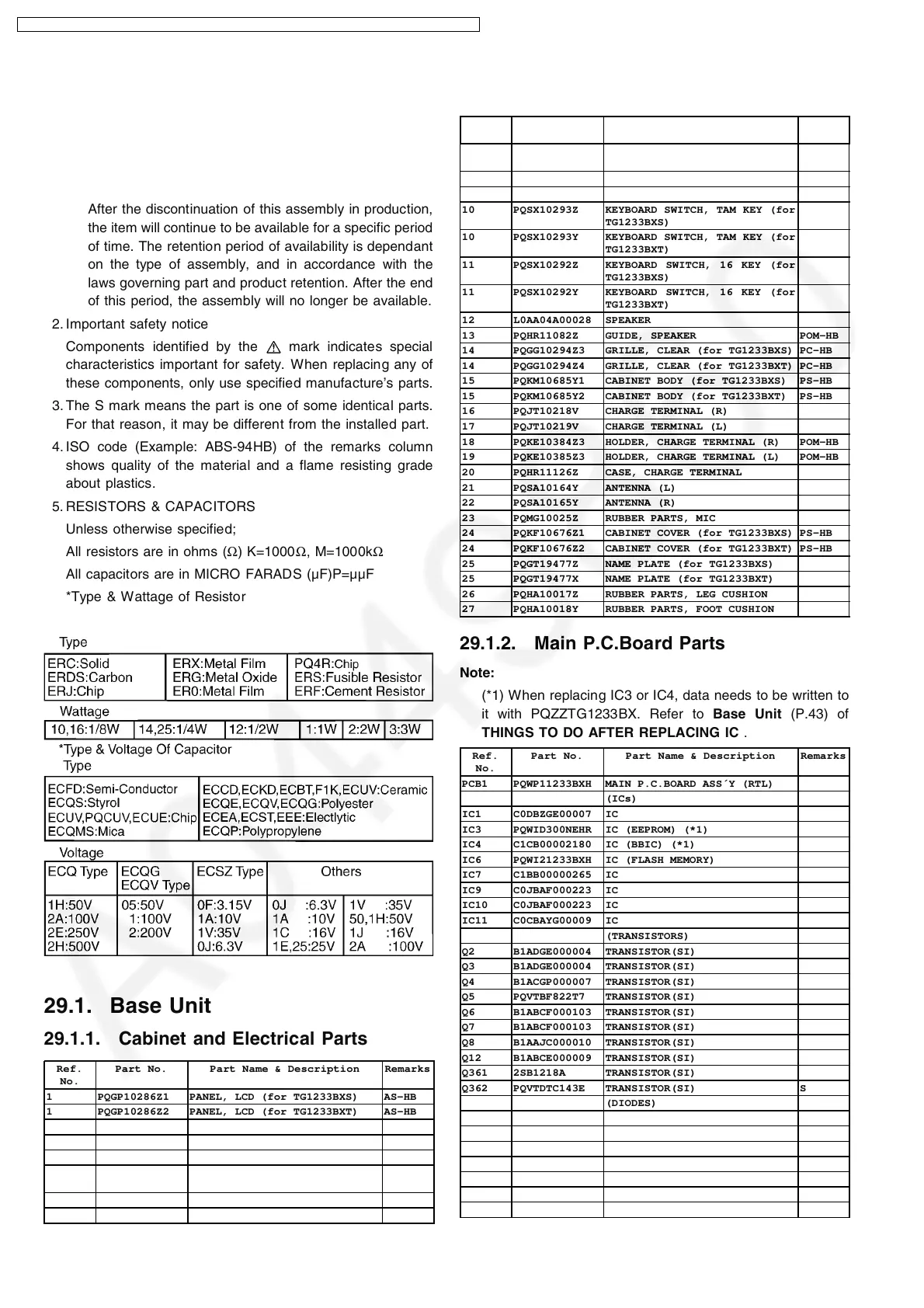

29.1. Base Unit
29.1.1. Cabinet and Electrical Parts
Ref.
No.
Part No. Part Name & Description Remarks
1 PQGP10286Z1 PANEL, LCD (for TG1233BXS) AS-HB
1 PQGP10286Z2 PANEL, LCD (for TG1233BXT) AS-HB
2 PQHS10675Z TAPE, DOUBLE SIDED (LCD )
3 PQGG10293Z1 GRILLE, FRONT (for TG1233BXS) PS-HB
3 PQGG10293Z2 GRILLE, FRONT (for TG1233BXT) PS-HB
4 PQBC10429Z1 BUTTON, NAVI KEY (for
TG1233BXS)
ABS-HB
5 PQHR11125Z GUIDE, NAVI KEY BUTTON POM-HB
6 PQBC10430Z1 BUTTON, PLAY ABS-HB
Ref.
No.
Part No. Part Name & Description Remarks
7 PQHR11124Z OPTIC CONDUCTIVE PARTS, LED
LENDS
PS-HB
8 PQSX10291Z KEYBOARD SWITCH, 6 KEY
9 PQBC10431Z1 BUTTON, ANSWER ON ABS-HB
10 PQSX10293Z KEYBOARD SWITCH, TAM KEY (for
TG1233BXS)
10 PQSX10293Y KEYBOARD SWITCH, TAM KEY (for
TG1233BXT)
11 PQSX10292Z KEYBOARD SWITCH, 16 KEY (for
TG1233BXS)
11 PQSX10292Y KEYBOARD SWITCH, 16 KEY (for
TG1233BXT)
12 L0AA04A00028 SPEAKER
13 PQHR11082Z GUIDE, SPEAKER POM-HB
14 PQGG10294Z3 GRILLE, CLEAR (for TG1233BXS) PC-HB
14 PQGG10294Z4 GRILLE, CLEAR (for TG1233BXT) PC-HB
15 PQKM10685Y1 CABINET BODY (for TG1233BXS) PS-HB
15 PQKM10685Y2 CABINET BODY (for TG1233BXT) PS-HB
16 PQJT10218V CHARGE TERMINAL (R)
17 PQJT10219V CHARGE TERMINAL (L)
18 PQKE10384Z3 HOLDER, CHARGE TERMINAL (R) POM-HB
19 PQKE10385Z3 HOLDER, CHARGE TERMINAL (L) POM-HB
20 PQHR11126Z CASE, CHARGE TERMINAL
21 PQSA10164Y ANTENNA (L)
22 PQSA10165Y ANTENNA (R)
23 PQMG10025Z RUBBER PARTS, MIC
24 PQKF10676Z1 CABINET COVER (for TG1233BXS) PS-HB
24 PQKF10676Z2 CABINET COVER (for TG1233BXT) PS-HB
25 PQGT19477Z NAME PLATE (for TG1233BXS)
25 PQGT19477X NAME PLATE (for TG1233BXT)
26 PQHA10017Z RUBBER PARTS, LEG CUSHION
27 PQHA10018Y RUBBER PARTS, FOOT CUSHION
29.1.2. Main P.C.Board Parts
Note:
(*1) When replacing IC3 or IC4, data needs to be written to
it with PQZZTG1233BX. Refer to Base Unit (P.43) of
THINGS TO DO AFTER REPLACING IC .
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PQWP11233BXH MAIN P.C.BOARD ASS´Y (RTL)
(ICs)
IC1 C0DBZGE00007 IC
IC3 PQWID300NEHR IC (EEPROM) (*1)
IC4 C1CB00002180 IC (BBIC) (*1)
IC6 PQWI21233BXH IC (FLASH MEMORY)
IC7 C1BB00000265 IC
IC9 C0JBAF000223 IC
IC10 C0JBAF000223 IC
IC11 C0CBAYG00009 IC
(TRANSISTORS)
Q2 B1ADGE000004 TRANSISTOR(SI)
Q3 B1ADGE000004 TRANSISTOR(SI)
Q4 B1ACGP000007 TRANSISTOR(SI)
Q5 PQVTBF822T7 TRANSISTOR(SI)
Q6 B1ABCF000103 TRANSISTOR(SI)
Q7 B1ABCF000103 TRANSISTOR(SI)
Q8 B1AAJC000010 TRANSISTOR(SI)
Q12 B1ABCE000009 TRANSISTOR(SI)
Q361 2SB1218A TRANSISTOR(SI)
Q362 PQVTDTC143E TRANSISTOR(SI) S
(DIODES)
D1 B0JAME000095 DIODE(SI)
D3 B0EDER000009 DIODE(SI) S
D4 MA1Z300 DIODE(SI) S
D6 MA8220 DIODE(SI) S
D7 MA112 DIODE(SI) S
D8 B0JCDD000002 DIODE(SI)
D301 MA8047 DIODE(SI) S
29 REPLACEMENT PARTS LIST
78
KX-TG1233BXS / KX-TG1233BXT / KX-TCA122CXS / KX-TCA122CXT / KX-TCA121CXS / KX-TCA121CXT
