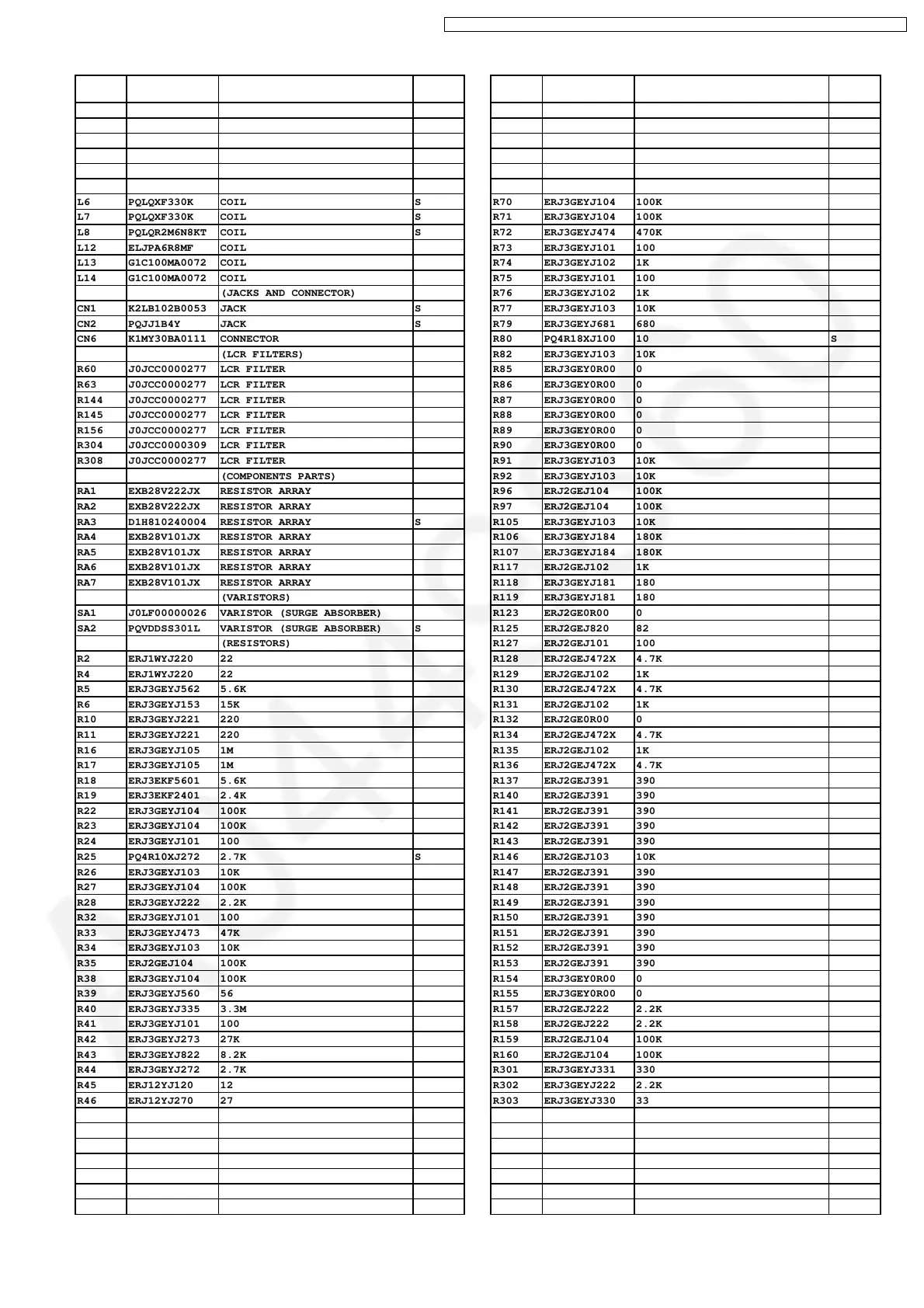

Panasonic KX-TG1233BXT

Ref.
No.
Part No. Part Name & Description Remarks
D311 B0JCDD000002 DIODE(SI)
D361 B0ECKM000008 DIODE(SI)
DA1 B0DDCM000001 DIODE(SI)
(COILS)
L3 PQLQR2M33NKT COIL S
L5 PQLQR2M6N8KT COIL S
L6 PQLQXF330K COIL S
L7 PQLQXF330K COIL S
L8 PQLQR2M6N8KT COIL S
L12 ELJPA6R8MF COIL
L13 G1C100MA0072 COIL
L14 G1C100MA0072 COIL
(JACKS AND CONNECTOR)
CN1 K2LB102B0053 JACK S
CN2 PQJJ1B4Y JACK S
CN6 K1MY30BA0111 CONNECTOR
(LCR FILTERS)
R60 J0JCC0000277 LCR FILTER
R63 J0JCC0000277 LCR FILTER
R144 J0JCC0000277 LCR FILTER
R145 J0JCC0000277 LCR FILTER
R156 J0JCC0000277 LCR FILTER
R304 J0JCC0000309 LCR FILTER
R308 J0JCC0000277 LCR FILTER
(COMPONENTS PARTS)
RA1 EXB28V222JX RESISTOR ARRAY
RA2 EXB28V222JX RESISTOR ARRAY
RA3 D1H810240004 RESISTOR ARRAY S
RA4 EXB28V101JX RESISTOR ARRAY
RA5 EXB28V101JX RESISTOR ARRAY
RA6 EXB28V101JX RESISTOR ARRAY
RA7 EXB28V101JX RESISTOR ARRAY
(VARISTORS)
SA1 J0LF00000026 VARISTOR (SURGE ABSORBER)
SA2 PQVDDSS301L VARISTOR (SURGE ABSORBER) S
(RESISTORS)
R2 ERJ1WYJ220 22
R4 ERJ1WYJ220 22
R5 ERJ3GEYJ562 5.6K
R6 ERJ3GEYJ153 15K
R10 ERJ3GEYJ221 220
R11 ERJ3GEYJ221 220
R16 ERJ3GEYJ105 1M
R17 ERJ3GEYJ105 1M
R18 ERJ3EKF5601 5.6K
R19 ERJ3EKF2401 2.4K
R22 ERJ3GEYJ104 100K
R23 ERJ3GEYJ104 100K
R24 ERJ3GEYJ101 100
R25 PQ4R10XJ272 2.7K S
R26 ERJ3GEYJ103 10K
R27 ERJ3GEYJ104 100K
R28 ERJ3GEYJ222 2.2K
R32 ERJ3GEYJ101 100
R33 ERJ3GEYJ473 47K
R34 ERJ3GEYJ103 10K
R35 ERJ2GEJ104 100K
R38 ERJ3GEYJ104 100K
R39 ERJ3GEYJ560 56
R40 ERJ3GEYJ335 3.3M
R41 ERJ3GEYJ101 100
R42 ERJ3GEYJ273 27K
R43 ERJ3GEYJ822 8.2K
R44 ERJ3GEYJ272 2.7K
R45 ERJ12YJ120 12
R46 ERJ12YJ270 27
R47 ERJ3GEYJ104 100K
R48 ERJ3GEYJ473 47K
R49 ERJ3GEYJ560 56
R52 ERJ3GEYJ820 82
R54 ERJ3GEYJ821 820
R55 ERJ3GEYJ473 47K
R56 ERJ3GEYJ103 10K
Ref.
No.
Part No. Part Name & Description Remarks
R57 ERJ3GEYJ103 10K
R61 ERJ2GEJ181 180
R62 ERJ2GEJ102 1K
R64 ERJ2GEJ684 680K
R65 ERJ2GEJ103 10K
R69 ERJ3GEYJ104 100K
R70 ERJ3GEYJ104 100K
R71 ERJ3GEYJ104 100K
R72 ERJ3GEYJ474 470K
R73 ERJ3GEYJ101 100
R74 ERJ3GEYJ102 1K
R75 ERJ3GEYJ101 100
R76 ERJ3GEYJ102 1K
R77 ERJ3GEYJ103 10K
R79 ERJ3GEYJ681 680
R80 PQ4R18XJ100 10 S
R82 ERJ3GEYJ103 10K
R85 ERJ3GEY0R00 0
R86 ERJ3GEY0R00 0
R87 ERJ3GEY0R00 0
R88 ERJ3GEY0R00 0
R89 ERJ3GEY0R00 0
R90 ERJ3GEY0R00 0
R91 ERJ3GEYJ103 10K
R92 ERJ3GEYJ103 10K
R96 ERJ2GEJ104 100K
R97 ERJ2GEJ104 100K
R105 ERJ3GEYJ103 10K
R106 ERJ3GEYJ184 180K
R107 ERJ3GEYJ184 180K
R117 ERJ2GEJ102 1K
R118 ERJ3GEYJ181 180
R119 ERJ3GEYJ181 180
R123 ERJ2GE0R00 0
R125 ERJ2GEJ820 82
R127 ERJ2GEJ101 100
R128 ERJ2GEJ472X 4.7K
R129 ERJ2GEJ102 1K
R130 ERJ2GEJ472X 4.7K
R131 ERJ2GEJ102 1K
R132 ERJ2GE0R00 0
R134 ERJ2GEJ472X 4.7K
R135 ERJ2GEJ102 1K
R136 ERJ2GEJ472X 4.7K
R137 ERJ2GEJ391 390
R140 ERJ2GEJ391 390
R141 ERJ2GEJ391 390
R142 ERJ2GEJ391 390
R143 ERJ2GEJ391 390
R146 ERJ2GEJ103 10K
R147 ERJ2GEJ391 390
R148 ERJ2GEJ391 390
R149 ERJ2GEJ391 390
R150 ERJ2GEJ391 390
R151 ERJ2GEJ391 390
R152 ERJ2GEJ391 390
R153 ERJ2GEJ391 390
R154 ERJ3GEY0R00 0
R155 ERJ3GEY0R00 0
R157 ERJ2GEJ222 2.2K
R158 ERJ2GEJ222 2.2K
R159 ERJ2GEJ104 100K
R160 ERJ2GEJ104 100K
R301 ERJ3GEYJ331 330
R302 ERJ3GEYJ222 2.2K
R303 ERJ3GEYJ330 33
R305 ERJ3GEYJ330 33
R306 ERJ3GEYJ471 470
R307 ERJ3GEYJ471 470
R311 ERJ3GEYJ154 150K
R312 ERJ3GEYJ101 100
R314 ERJ3GEYJ393 39K
R361 ERJ3GEYJ332 3.3K
79
