22
DVQX2448 (ENG)
1. Introduction

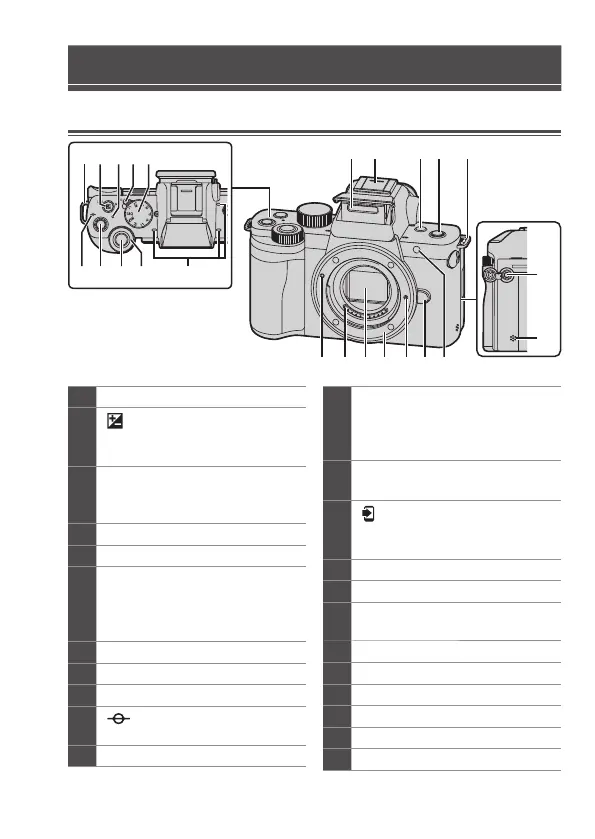

Names of Parts
Camera
1
Shoulder strap eyelet (25)
2
[ ] (Exposure compensation)
button (62)/
Fn button (Fn1) (81)
3
Charging lamp (29)/
WIRELESS connection lamp
(88)
4
Camera on/off switch (36)
5
Mode dial (40)
6
Stereo microphone
• Do not block the microphone
with a finger. Audio will be
difficult to record.
7
Front dial (41)
8
Shutter button (38)
9
Video rec. button (39, 68)
10
[ ] (Recording distance
reference mark)
11
Flash (38, 67)
12
Hot shoe (hot shoe cover)
• Keep the hot shoe cover out
of reach of children to prevent
swallowing.
13
[LVF] button (43)
Fn button (Fn3) (81)
14
[ ] ([Send Image (Smartphone)])
button/
Fn button (Fn4) (81)
15
[MIC] socket
16
Speaker
17
Self-timer light/
AF assist light
18
Lens release button (33)
19
Lens lock pin
20
Mount
21
Sensor
22
Contact points
23
Lens fitting mark (33)
15
16
6
1
8 9
23 22 21 20 19 18 17
10 7
2 4 5
11 12 13 14 1
3
