Before Use

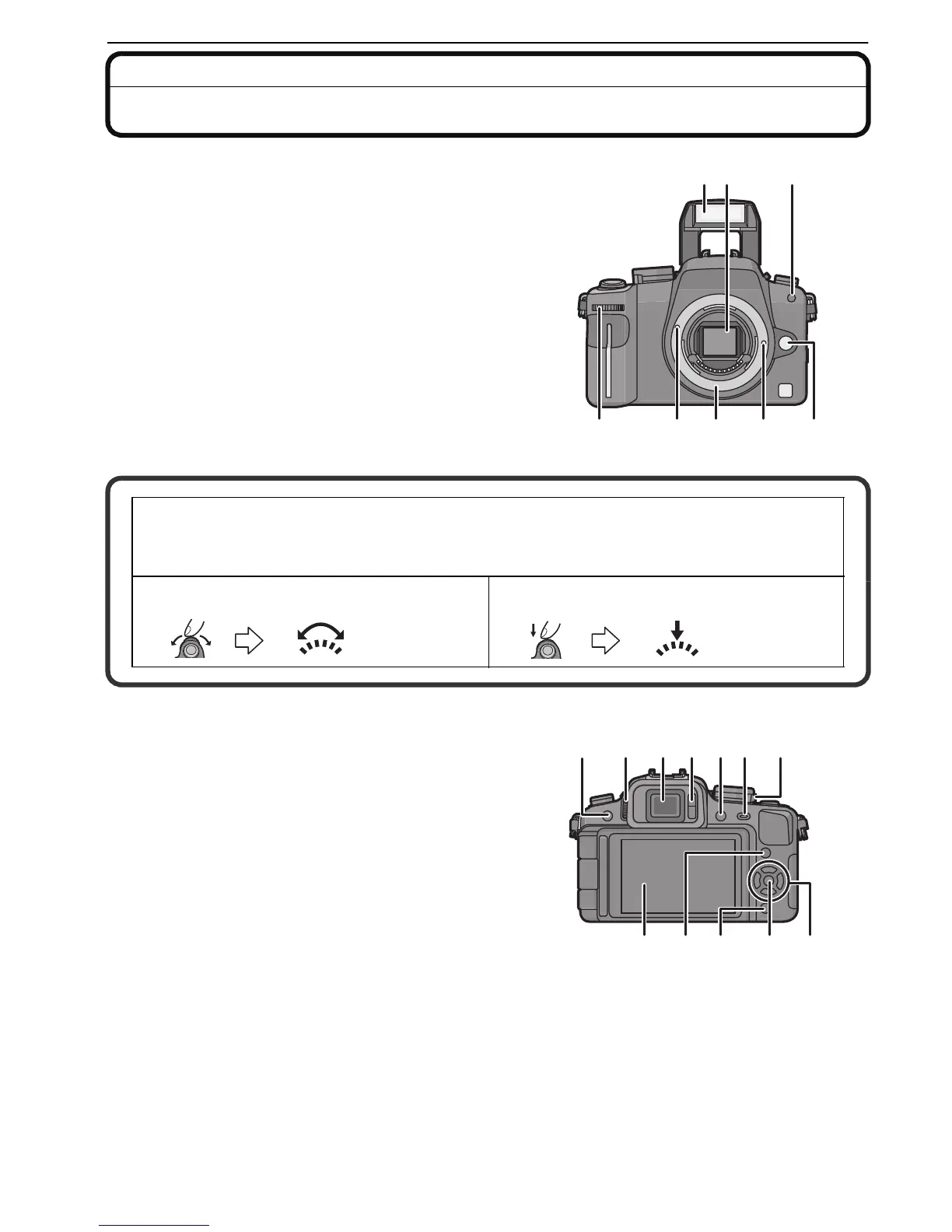

Names of the Components
∫ Camera body
1 Flash (P58)
2 Sensor
3 Self-timer indicator (P68)
AF assist lamp (P107)
4 Lens release button (P16)
5 Lens lock pin
6 Mount
7 Lens fitting mark (P15)
8 Front dial (P27, 42, 47, 50, 51, 63, 84, 85)
9 [LVF/LCD] button (P37)
10 Diopter adjustment dial (P37)
11 Viewfinder (P37, 55, 134)
12 Eye sensor (P37)
13 Playback button (P49, 52, 124, 125)
14 [AF/AE LOCK] button (P74)
15 Camera ON/OFF switch (P25)
16 LCD monitor (P35, 50, 54, 134)
17 [DISPLAY] button (P50, 54, 87)
18 Delete button (P52)/
Preview button (P87)
19 [MENU/SET] button (P25)
20 Cursor buttons
3/ISO (P79)
2/AF mode (P69)
4/Function button (P30)
Assign Menu to 4 button. It is convenient to register Menu that is used often.
[ASPECT RATIO]/[QUALITY]/[METERING MODE]/[I.EXPOSURE]/[GUIDE LINE]
1/WB (White balance) (P76)
There are 2 ways to operate the front dial, rotating left or right, and deciding by
pressing.
Front dial is described as following in these operating instructions.
e.g.: Rotating left or right e.g.: Pressing the front dial
