44

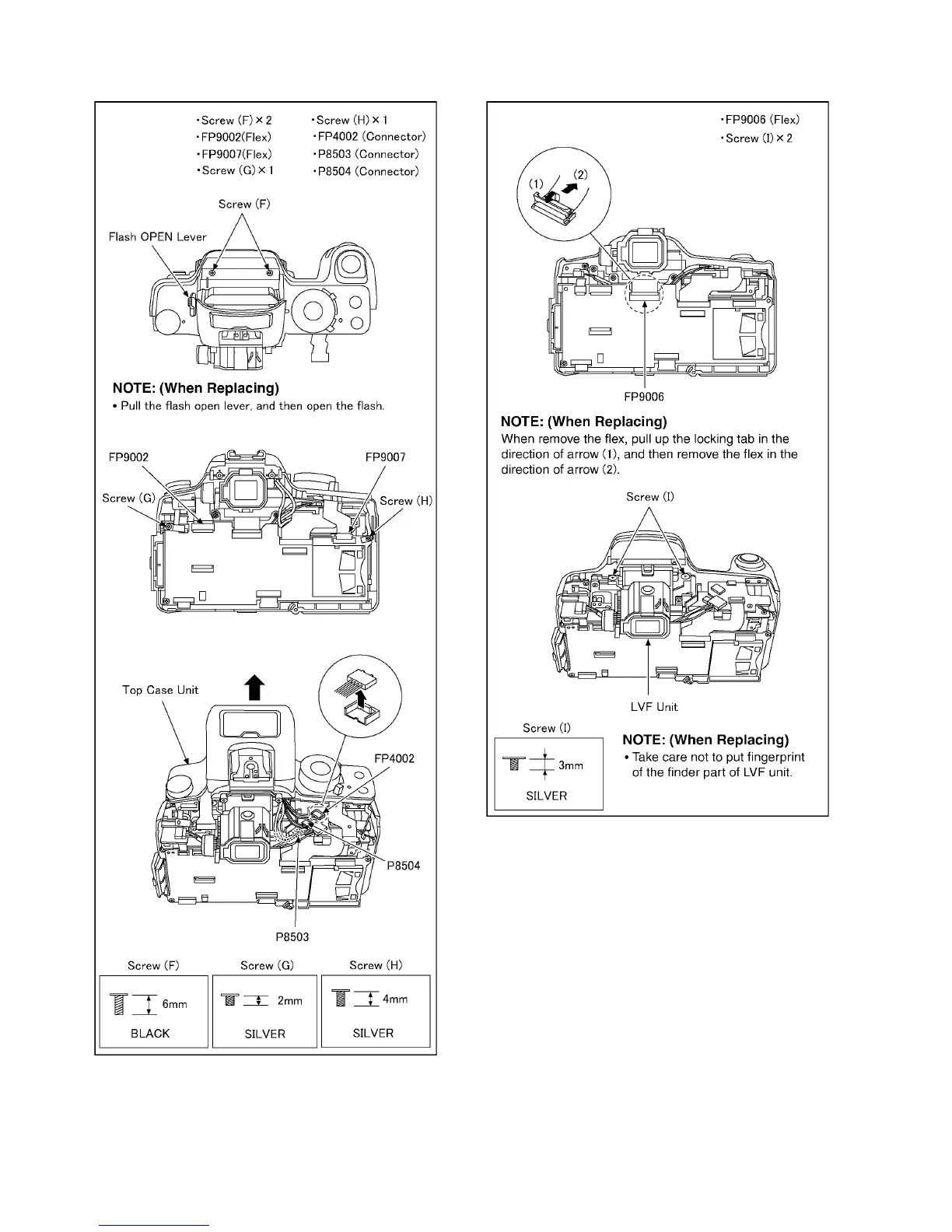

9.3.2.
Removal of the T
op Case Unit
(Fig.D3)
9.3.3.
Removal of the L
VF Unit
(Fig.D4)
43
45
Table of Contents
Table of Contents
2
1 Safety Precaution
3
General Guidelines
3
Leakage Current Cold Check
3
Leakage Current Hot Check (See Figure 1.)
3
How to Discharge the Capacitor on Flash Sub PCB
4
2 Warning
5
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
5
How to Recycle the Lithium Ion Battery (U.S. Only)
5
Caution for AC Cord(for EB/GC
6
Information for Your Safety
6
Before Use
6
How to Replace the Lithium Battery
7
3 Service Navigation
8
Introduction
8
Important Notice
8
Lens Unit
10
General Description about Lead Free Solder (Pbf)
11
How to Define the Model Suffix (NTSC or PAL Model)
12
Initial Settings
13
4 Specifications
15
5 Location of Controls and Components
16
Names of the Components
16
About the Lens
19
Cautions for Use
20
Message Display
24
About the Battery
31
6 Service Mode
32
Error Code Memory Function
32
7 Troubleshooting Guide
34
8 Service Fixture & Tools
38
Service Fixture and Tools
38
Clean Box
39
Service Position
40
9 Disassembly and Assembly Instructions
41
Disassembly Flow Chart
41
PCB Location
41
Disassembly Procedure
42
Disassembly and Assemble Procedure for the Lens
53
10 Measurements and Adjustments
55
Matrix Chart for Replaced Part and Necessary Adjustment
55
11 Maintenace
57
Notice in External Cleaning
57
General Description (Lens Cleaning)
58
Method of Cleaning Inside of Lens (H-VS014140: Included in DMC-GH1K)
59
Assembly Procedure
60
Parts List
62
S2. Voltage Chart
63
S2.1. EXT MIC P.C.B
63
S2.3. MIC P.C.B
63
S3. Block Diagram
64
S3.1. Overall Block Diagram
64
S4. Schematic Diagram
65
S4.1. Interconnection Diagram
65
S4.2. AF Assist Schematic Diagram
66
S4.4. Remote Schematic Diagram
67
S4.5. Flash Schematic Diagram
68
S4.6. Flash Sub Schematic Diagram
69
S4.7. Hinge SW Schematic Diagram
69
S4.8. LCD if Schematic Diagram
69
S4.9. MIC Schematic Diagram
70
S5. Print Circuit Board
71
S5.1. AF Assist P.C.B
71
S5.3. Remote P.C.B
72
S5.4. Flash P.C.B
73
S5.5. Flash Sub P.C.B
74
S5.7. Lcd if P.C.b
75
S5.7.1. LCD if P.C.B. (Component Side
75
S5.7.2. LCD if P.C.B. (Foil Side
76
S5.8. MIC P.C.B
77
S6. Replacement Parts List
78
S7. Exploded View
84
S7.1. Frame and Casing Section
84
S7.2. Camera Lens Section
85
S7.3. Packing Parts and Accessories Section
86
