Panasonic Lumix DMC-GH1KPP - Remote Schematic Diagram

S-6

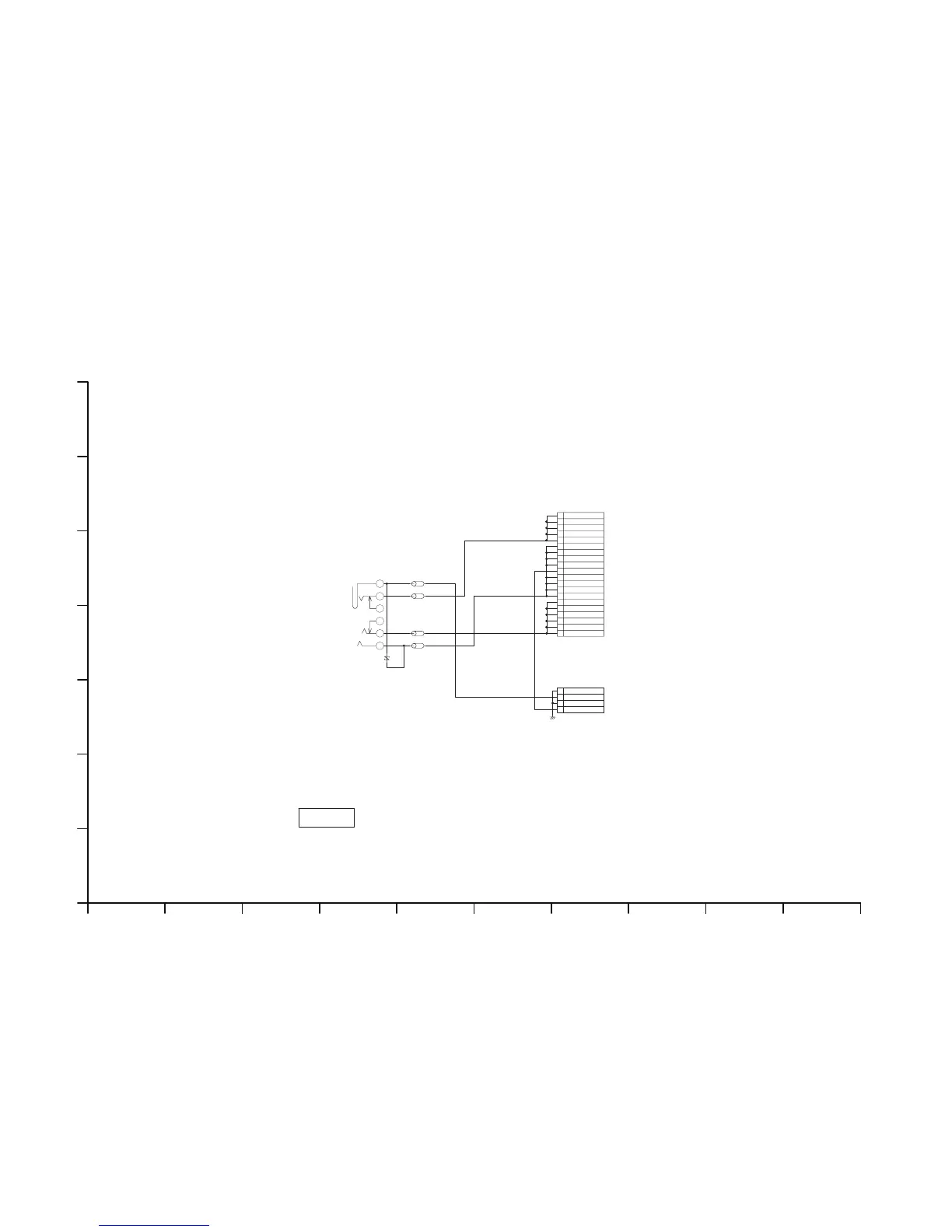

S4.4. Remote Schematic Diagram
Confidential
Until
J0JBC0000107
LB7353
J0JBC0000107
LB7352
J0JBC0000107
LB7350
J0JBC0000107
LB7351
VA7350
D4ED18R00008
135642
K2HD104D0002
JK7350
1
3
4
2
K1MN04BA0208
FP7351
1
9
7
5
3
2
4
6
8
19
20
14
15
13
18
16
17
10
12
11
FP7350
K1KA20A00306
20P3.5JMCS-G-B-TF(N)
[EXTMIC]
MIC[R]
MIC[R]
MIC[R]
MIC[R]
MIC[R]
MIC[R]
REMOTE
REMOTE
MIC[L]
MIC[L]
MIC[L]
MIC[L]
MIC[L]
MIC[L]
MIC[L]
AD_GND
AD_GND
AD_GND
AD_GND
AD_GND
AD_GND
AD_GND
AD_GND
AD_GND
(FF14-4A-R11B-C3)
EXTMIC_ON
EXTMIC_ON
GND
GND
DMC-GH1K
Remote
Schematic Diagram
