3Service Navigation
3.1. Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.
3.2. Important Notice
*When servicing, it is recommended dealing with Clean box. (Refer to "8.2. Clean Box" section of this service manual for details.)
3.2.1. Camera Body Unit

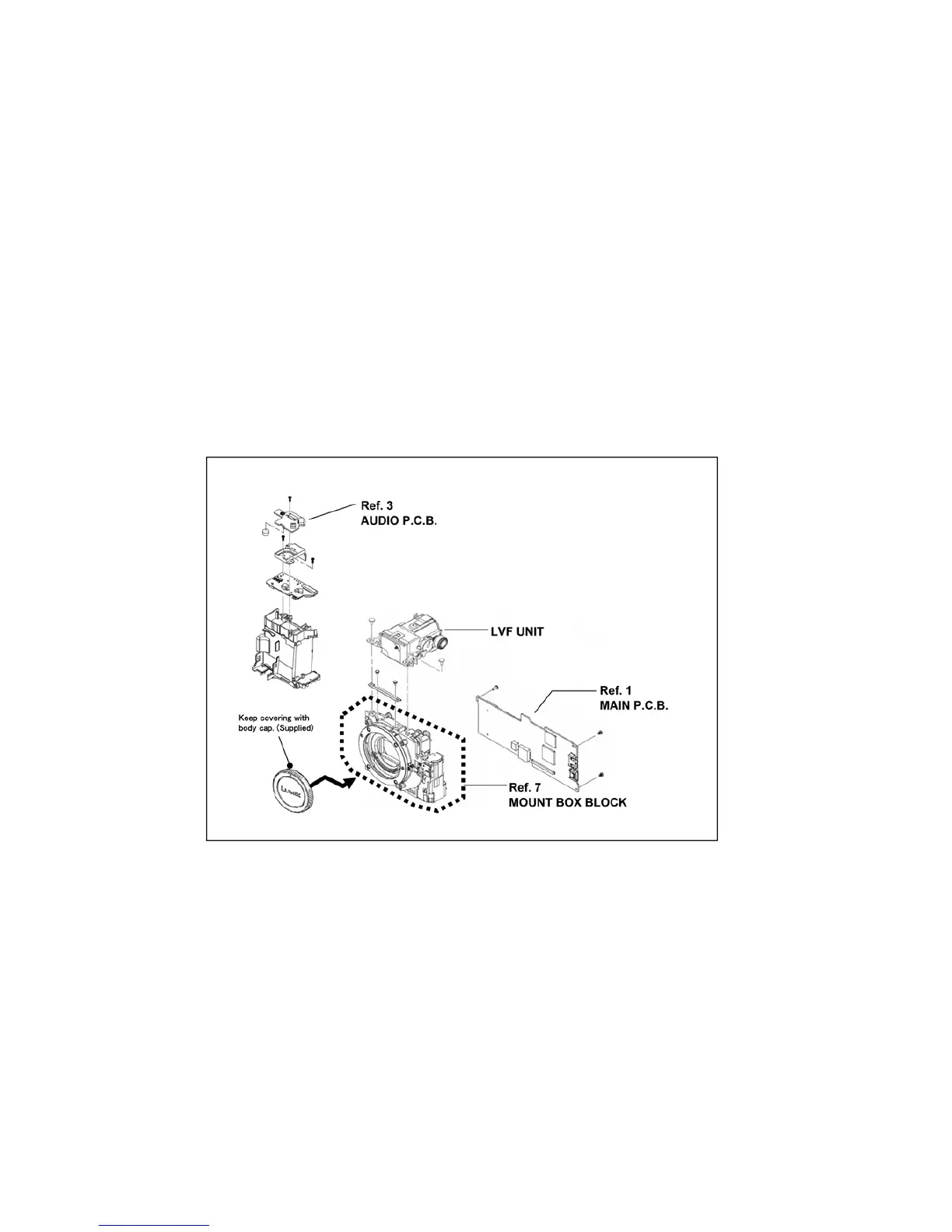

3.2.1.1. About Mount Box Block (Ref. 7)
1. This Service Manual does not contain the repair service information for "MOUNT BOX BLOCK"(Ref.7), because it requires
special facilities and equipment.
a. Schematic diagram, Block diagram and P. C. B . l a yo ut of " M OU NT BO X B LO CK " .
b. Parts list for individual parts of "MOUNT BOX BLOCK"
2. If the "MOUNT BOX BLOCK" is confirmed as defective, exchange the "MOUNT BOX BLOCK" as a unit (supplied as service
parts size).
3. Before exchange the "MOUNT BOX BLOCK", the performances must be carefully checked, by following the "7.Troubleshoot-
ing Guide" section of this service manual.
Fig. S1
