52

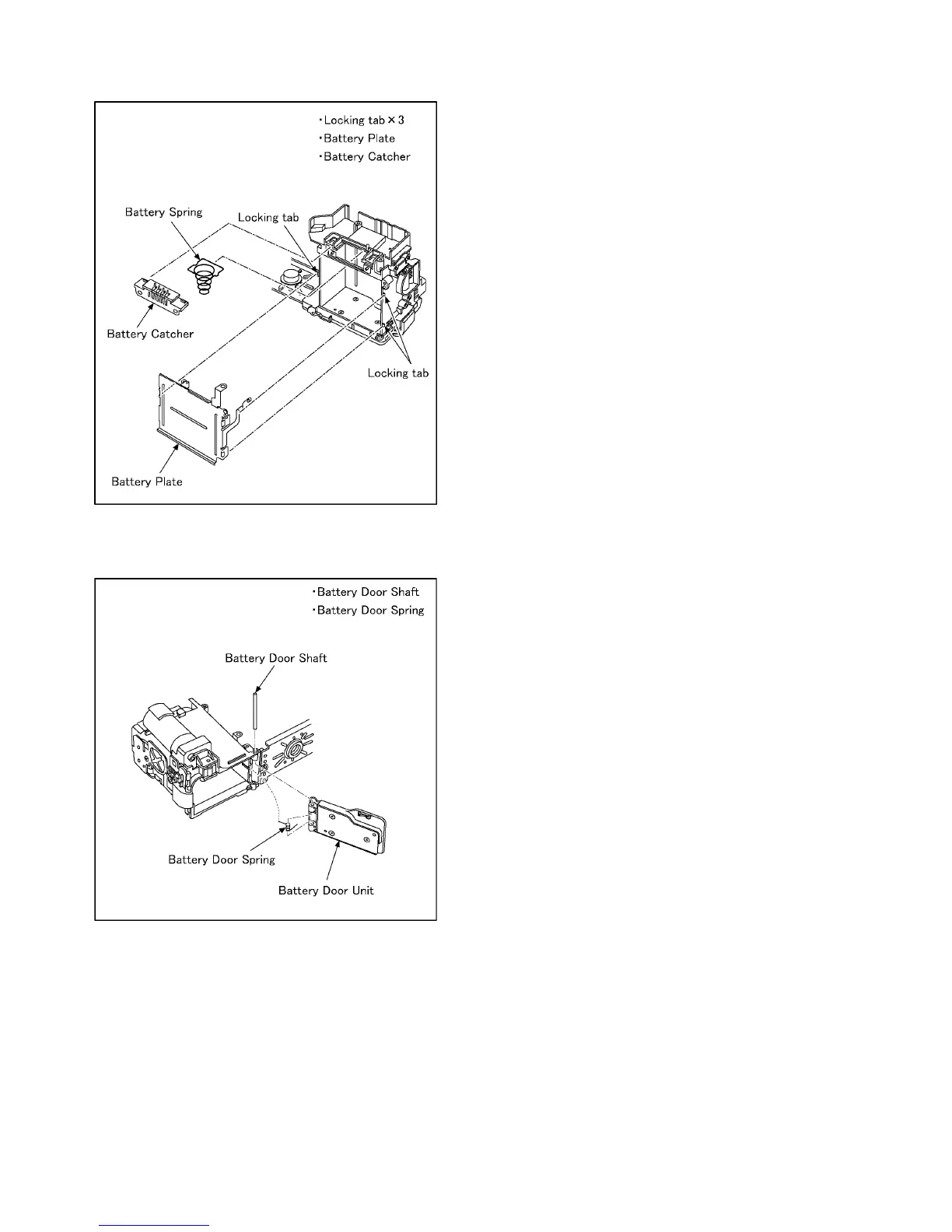

9.3.16. Removal of the Battery Spring
(Fig.D24)
9.3.17. Removal of the Battery Door Unit
(Fig.D25)
NOTE: (When Assembling)
Be sure to confirm the following points when assembling.
•The Screw is tightened enough.
•Assembling conditions are fine. (No distortion, no illegal-
space.)
•No dust and/or dirt on every Lens surfaces.
•LCD image is fine. (No dust and dirt on it, and no gradient
images.)
To Next Page
