61

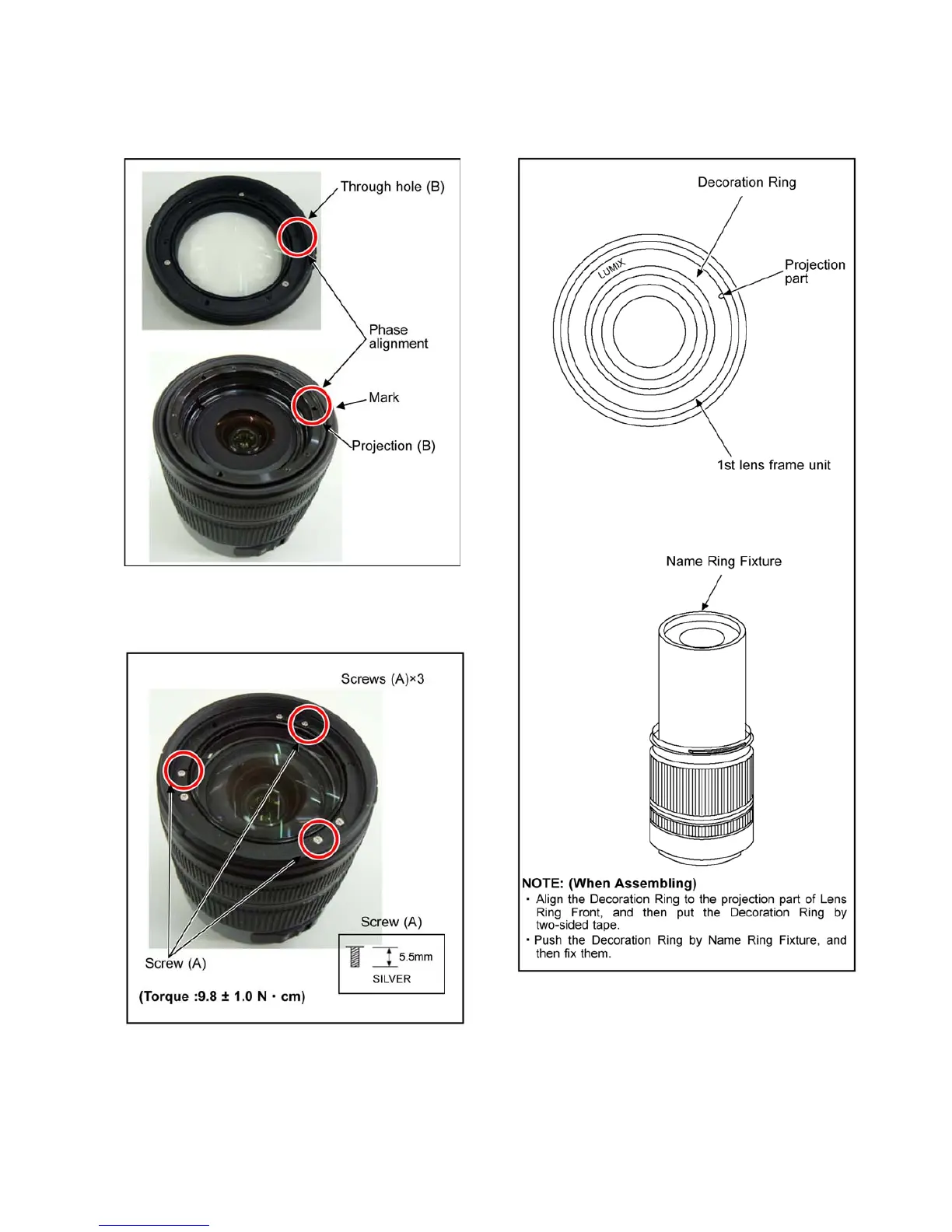

11.3.2.2. Installation of the 1st lens frame
unit
1. Install the 1st lens frame unit onto the lens unit to meet
the through hole (B) with projection (B).
2. Tighten the 3 screws (A) by using torque driver with spec-
ified torque.
(Torque :11.8 ± 1.0 N-cm)
11.3.2.3. Installation of the Decoration Ring
1. Use the Name Ring fixture (RFKZ0423)
2. Use new Decoration ring. (Do not use the one which is
removed.)
To Next Page
