Before Use

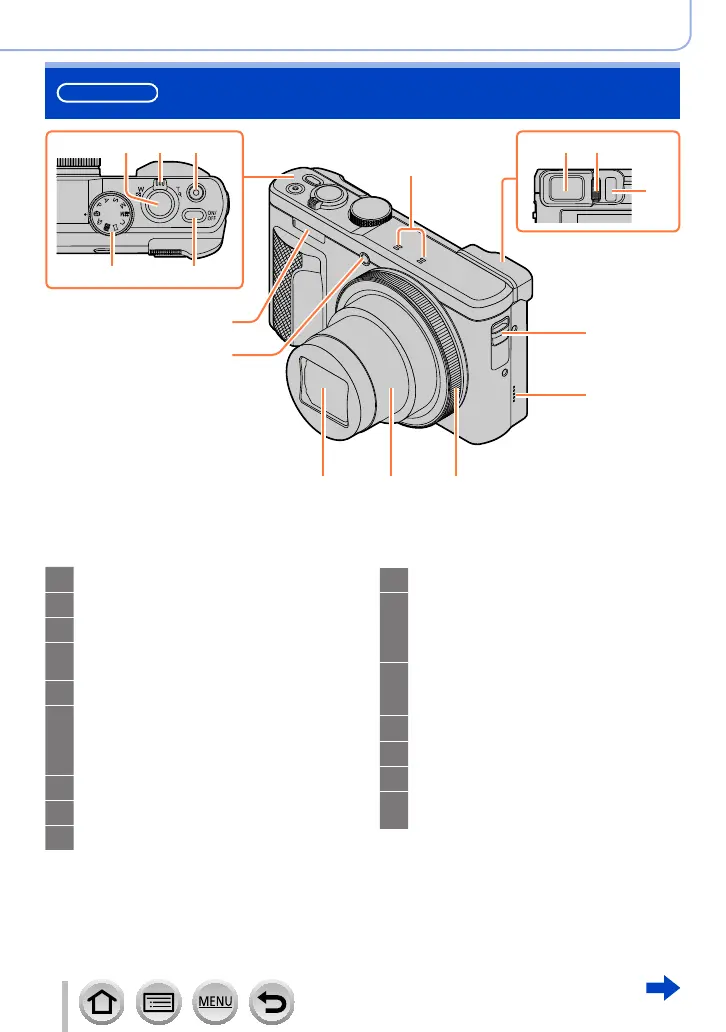

Names and Functions of Main Parts
1 2
54
7 8
9
10
1314
15
16
6
11
12
3
1
Shutter button (→46)
2
Zoom lever (→45)
3
Motion picture button (→48)
4
Mode dial (→49)
Use this to select the recording mode.
5
Camera [ON/OFF] button (→42)
6
Stereo microphone (→44)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
7
Viewfinder (→58)
8
Diopter adjustment dial (→60)
9
Eye sensor (→58, 60)
10
Strap eyelet (→23)
11
Speaker (→44)
Be careful not to cover the speaker with
your finger. Doing so may make sound
difficult to hear.
12
Control ring (→51)
Allows you to zoom and adjust settings
when recording.
13
Lens barrel
14
Lens
15
Flash (→241)
16
Self-timer indicator (→208) /
AF Assist Lamp (→164)
