22
SQW0547
Before Use

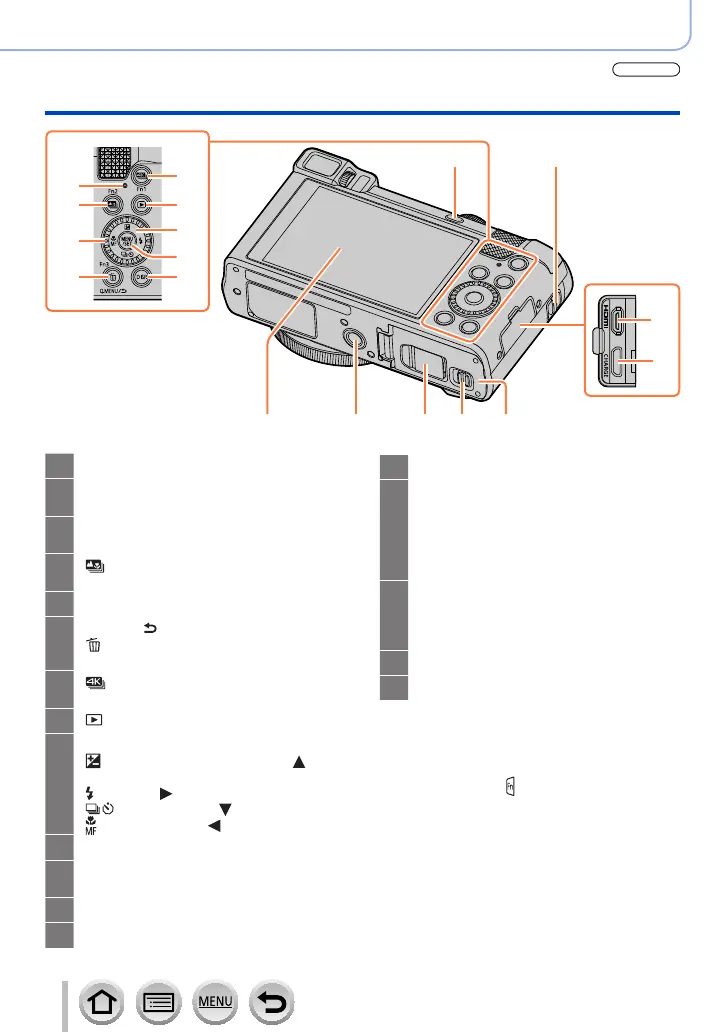

Names and Functions of Main Parts
22
19
21
23
26
24
25
18
27
28
17
30 31 32 33
20
10
10
Strap eyelet (→23)
17
[LVF] button (→58) /
[Fn4] button (→70)
18
Charging lamp (→30) /
Wi-Fi
®
connection lamp (→302)
19
[ ] ([Post Focus]) button (→210) /
[Fn2] button (→70)
20
Control dial (→51)
21
[Q.MENU/ ] (Cancel) button (→68) /
[
] (Delete) button (→277) /
[Fn3] button (→70)
22
[ ] (4K photo mode) button (→184) /
[Fn1] button (→70)
23
[ ] (Playback) button (→268)
24
Cursor button (→52)
[
] (Exposure compensation) ( )
(→177)
[
] (Flash) ( ) (→244)
[
] (Drive Mode) ( ) (→201)
[
] (Focus Mode) ( ) (→146, 165, 167)
25
[MENU/SET] button (→52)
26
[DISP.] button (→53)
Use this to change display.
27
[HDMI] socket (→348)
28
[CHARGE] socket (→29)
29
Touch screen (→61) / monitor (→369)
30
Tripod mount (→401)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
31
DC coupler cover (→362)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
32
Release lever (→27)
33
Card/Battery door (→27)
■
Function buttons [Fn5] to [Fn9]
• Buttons [Fn5] to [Fn9] (→70) are
touch icons. They can be displayed by
touching the [
] tab on the recording
screen.
29
To Next Page
