Panasonic MDDLN45BL - Size C, D 100 V; 200 V

No. SX-DSV03335 - 9-
R2.0 Industrial Device Solution Business Unit, Panasonic Corporation

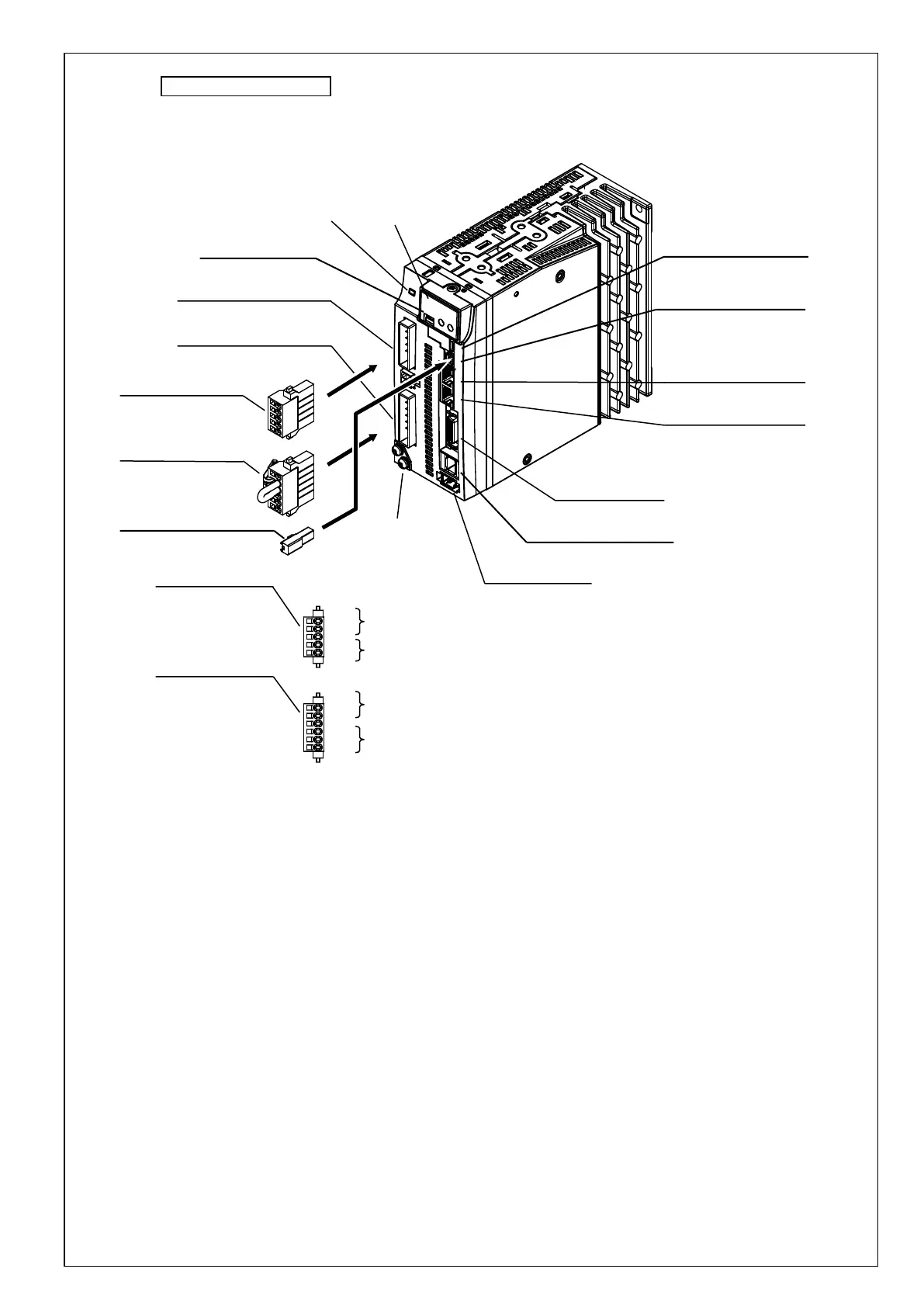

Size C, D 100 V / 200 V
*Remove the safety bypass plug when wiring to X3.
X1: USB connector
UB-M5BR-S14-4S(LF)(SN) (JST)
or equivalent
X4: Parallel I/O connector
DF02R026NA2 (JAE)
or equivalent
X6: CS signal connector
3E106-2230KV (3M)
or equivalent
XA: Power supply input connector
05JFAT-SAXGGKK-A (JST)
or equivalent
XB: Motor output connector
06JFAT-SAXGGKK-A (JST)
or equivalent
XA: Power supply input connector
S05B-F32SK-GGXR (JST)
or equivalent
XB: Motor output connector
S06B-F32SK-GGXR (JST)
or equivalent
Charge lamp
Front panel
Earth connection screw
XA: Power input connector
XB: Motor output connector
L1
L2
L3
L1C
L2C
P
RB
B
U
V
W
Main power supply input
Control power supply input
Regenerative resistor connection
Motor output
X2A: EtherCAT connector
MOD-WRJ88LY1G-TP+(HTK)
or equivalent
X2B: EtherCAT connector
MOD-WRJ88LY1G-TP+(HTK)
or equivalent
X3: Safety bypass plug
CIF-PB08AK-GF1R (JST)
X3: Safety function connector
CIF-HS08SS-071-TB(SN) (JST)
or equivalent
X5: Feedback scale connector
MUF-RS10SK-GKX-TB(LF) (JST)
or equivalent
X7: Analog monitor connector
53398-8605 (Molex)
or equivalent
