Panasonic MDDLN45BL - Size F 400 V

No. SX-DSV03335 - 16-
R2.0 Industrial Device Solution Business Unit, Panasonic Corporation

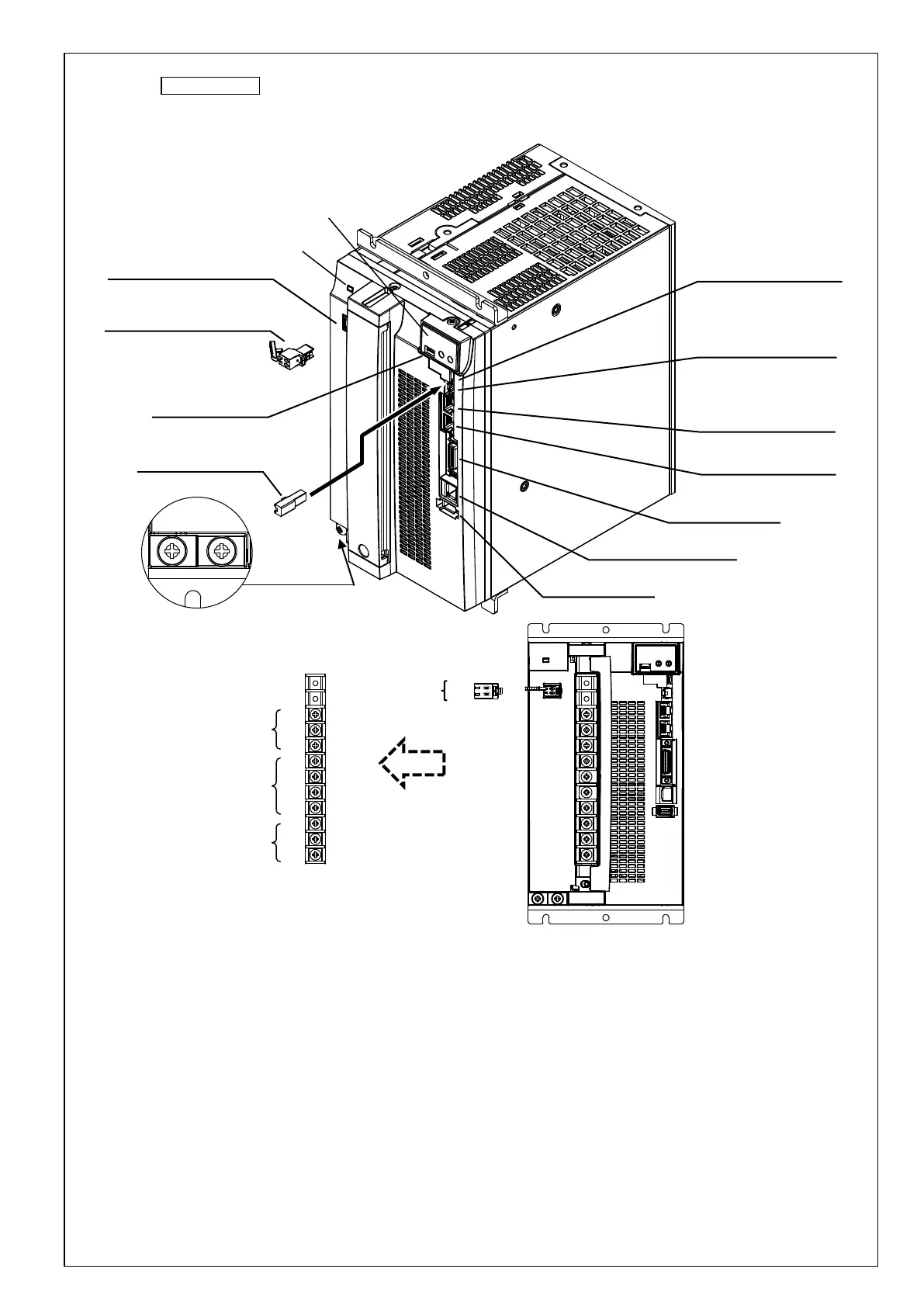

Size F 400 V
*Remove the safety bypass plug when wiring to X3.
UB-M5BR-S14-4S(LF)(SN) (JST)
or equivalent
DF02R026NA2 (JAE)
or equivalent
3E106-2230KV (3M)
or equivalent
L1
L2
L3
P
N
B
U
V
W
MOD-WRJ88LY1G-TP+(HTK)
or equivalent
MOD-WRJ88LY1G-TP+(HTK)
or equivalent
RB
CIF-PB08AK-GF1R (JST)
CIF-HS08SS-071-TB(SN) (JST)
or equivalent
MUF-RS10SK-GKX-TB(LF) (JST)
or equivalent
02MJFAT-SAGF(JST)
or equivalent
S02B-J25SK-GGR (JST)
or equivalent
24V
0V
Front panel
Charge lamp
X3: Safety bypass plug
Earth connection screw
X1: USB connector
X3: Safety function connector
X4: Parallel I/O connector
X6: CS signal connector
X2A: EtherCAT connector
X2B: EtherCAT connector
X5: Feedback scale connector
XD: Control power supply Input connector
XD: Control power supply Input connector
Motor output
Regenerative resistor connection
(Normal RB-B short circuit)
Main power supply input
Control power supply
input
XD: Control power supply Input connector
53398-8605 (Molex)
or equivalent
X7: Analog monitor connector
