Installation

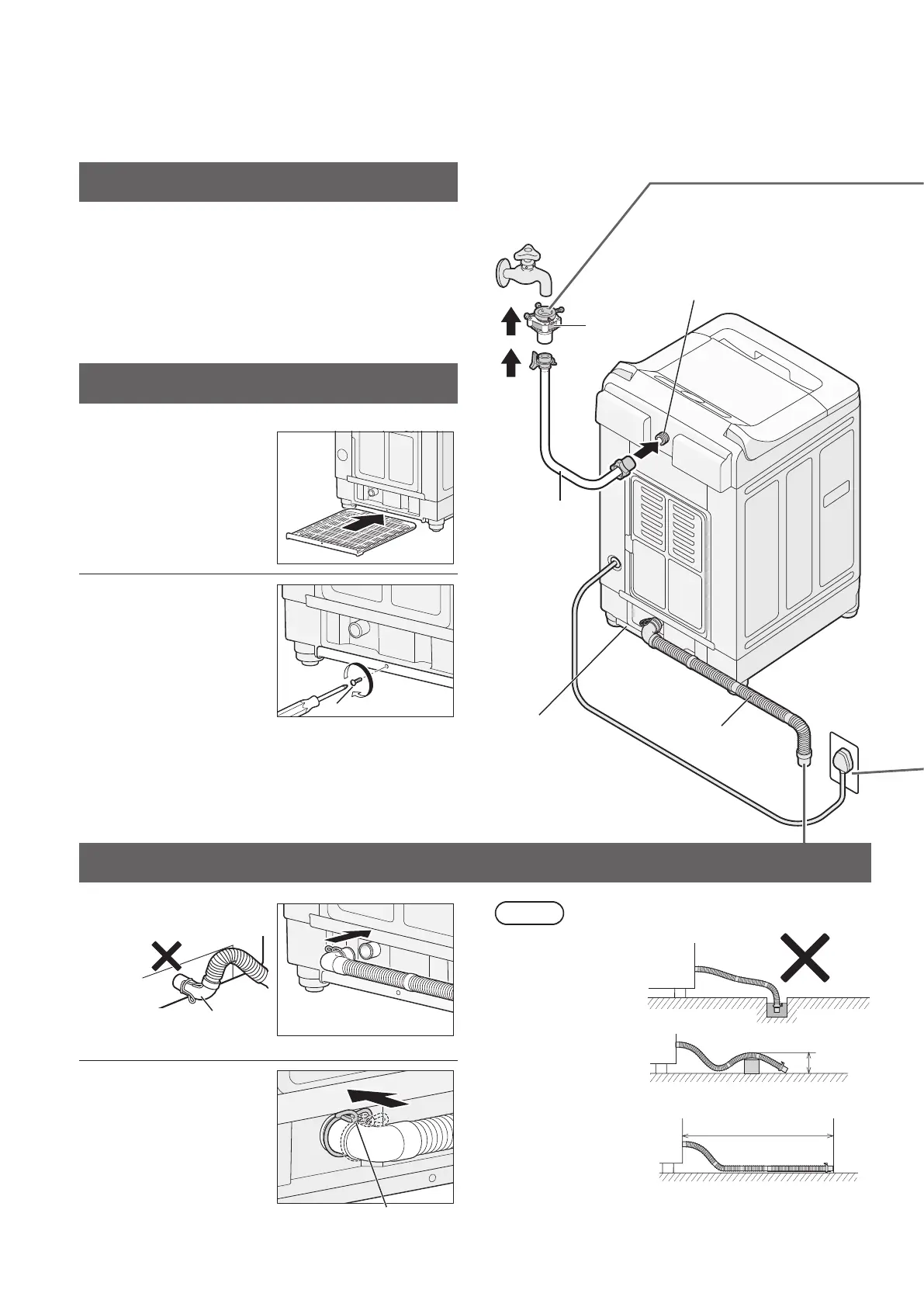

1. Check the location.
■
Avoid the following locations for installation.
•
Locations with a possibility of freezing
•
Damp locations or locations where it may be
exposed to rain, etc.
(To prevent electric shock or re)
•
Uneven or unstable locations
(on blocks, timbers, a table with wheels, etc.)
2. Attach the bottom cover.
1
Insert the
bottom
cover along
the guides.
2
Fix with a
screw.
Screw
Water supply
hose
Water tap
adaptor
Water supply
valve screw
Bottom cover
External drain
water hose
3. Attach the external drain water hose.
1
Connect.
Elbow
Do not direct the
elbow upward.
Insert all the way.
2
Slide the
hose band
in the arrow
direction.
● Slide all the way
until it stops.
Hose band
NOTE
● Do not put the
hose tip under
water.
● Do not raise the
hose higher than
10 cm above the
oor.
10 cm or
less
● Do not extend the
overall length to
more than 3 m.
3 m or less
