Panasonic NV-DV2000 - Page 101

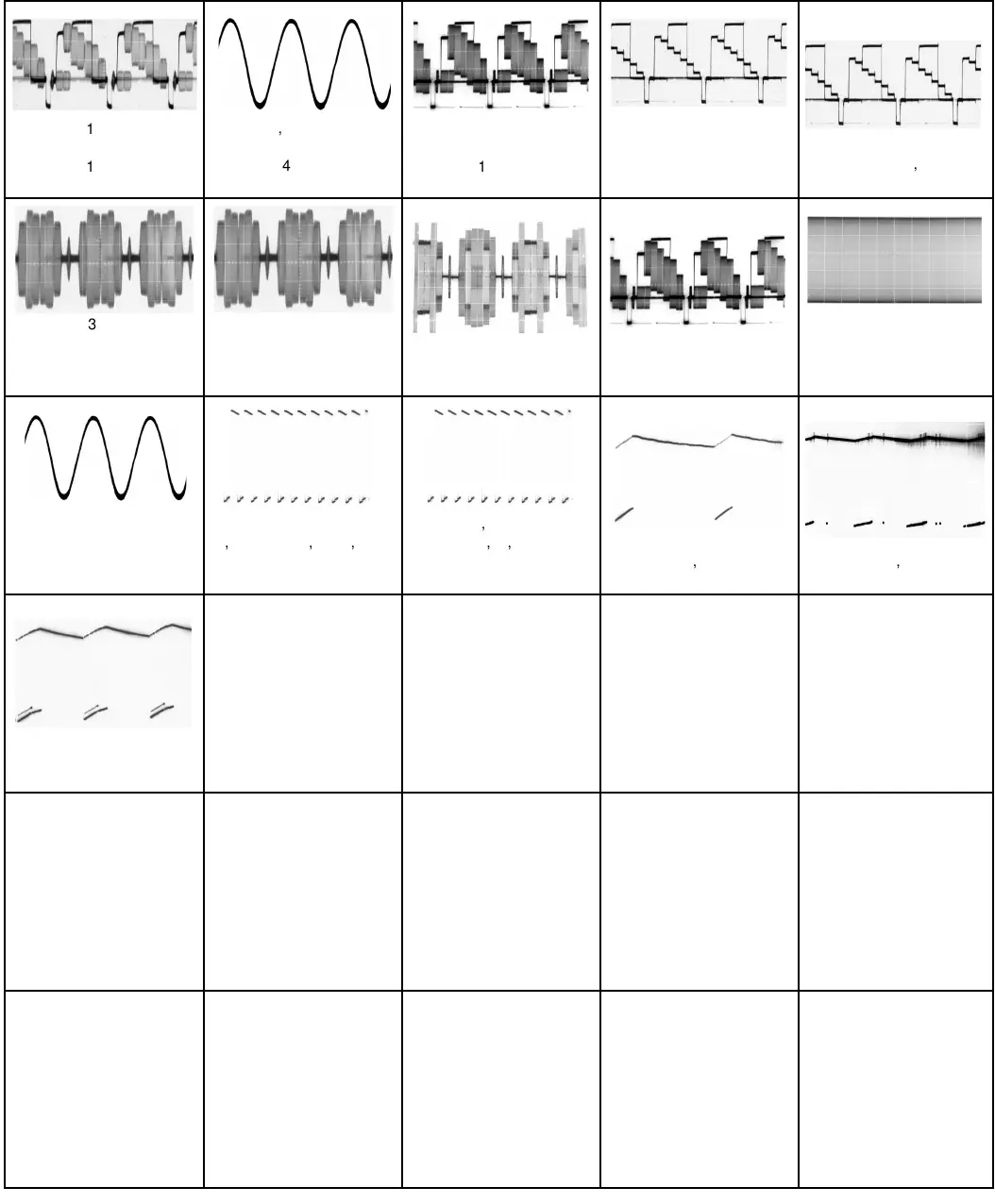

IC3901- 1,15 PLAY
1.0Vp-p ( 20usec. div.)
IC3902- 1,15 PLAY
1.0Vp-p ( 20usec. div.)
IC3901- 3,4,14 PLAY/REC
0.6Vp-p ( 0.5msec. div.)
IC3902- 3,4,14 PLAY/REC
0.6Vp-p ( 0.5msec. div.)
IC3901- 1,15 REC
1.0Vp-p ( 20usec. div.)
IC3902- 1,15 REC
1.0Vp-p ( 20usec. div.)
IC30001- 14 REC
1.0Vp-p ( 20usec. div.)
IC30002- 25 REC
1.4Vp-p ( 20usec. div.)
IC30006- 37,40,55 PLAY
1.75Vp-p ( 20usec. div.)
IC30001- 3 REC
170mVp-p ( 20usec. div.)
IC30001- 15 REC
0.5Vp-p ( 20usec. div.)
IC30006- 51 PLAY/REC
0.7Vp-p ( 20usec. div.)
IC30002- 3 REC
1.5Vp-p ( 20usec. div.)
IC7501- 5 STOP
1.1Vp-p ( 20usec. div.)
IC7501- 6 STOP
0.6Vp-p ( 20usec. div.)
IC7501- 8 STOP
0.9Vp-p ( 10usec. div.)
IC7501- 9 STOP
4.0Vp-p ( 10usec. div.)
IC7501- 16,17,18,19,20,21,
22,23,24,25,26,27,28,29,
STOP
35.0Vp-p ( 5msec. div.)
IC7501- 30,31,32,33,34,35,
36,37,38,39,40,41,42
STOP
35.0Vp-p ( 5msec. div.)
IC7501- 54,59 STOP
5.0Vp-p ( 5msec. div.)
IC7501- 60,61 STOP
5.0Vp-p ( 5msec. div.)
IC7501- 62,64 STOP
4.0Vp-p ( 5msec. div.)
IC30002- 23 REC
0.5Vp-p ( 20usec. div.)
IC30006- 45 PLAY
1.0Vp-p ( 20usec. div.)
