A
B
C
D
E
1
24
3
5
678
(COMPONENT SIDE)
Q1001 B-3 IC1001 D-5
Q1002 B-3 IC1002 B-3
Q1003 B-3 IC1003 C-5
Q1004 B-5 IC1004 A-4
Q1005 B-5 IC1006 A-3
Q1007 B-5 IC1150 C-7
Q1008 C-5 IC1200 B-8
Q1012 A-3 IC1501 B-3
Q1013 A-2 IC3602 D-2
Q1014 A-4 IC3604 D-2
Q1015 B-3 IC3605 D-3
Q1016 A-4 IC3610 C-3
Q1200 C-8 IC3612 D-4
Q1501 B-2 IC3613 D-3
Q3602 D-2 IC4301 B-1
Q3603 D-5 IC4302 C-1
Q3604 D-5 IC4303 B-2
Q3606 D-4 IC4305 D-1
Q3607 D-2 IC4309 B-1
Q3608 E-1 IC4310 C-2
Q3609 E-1 IC4311 C-1
Q3613 D-4 IC4313 B-2
Q3614 C-4 IC4314 C-1
Q3617 D-4 IC4316 B-1
Q3619 D-4 IC4701 A-5
Q3620 D-4 IC4702 B-5
Q3621 D-5
Q3622 C-4
Q3623 D-3 TL3601 C-4
Q3625 B-3 TL3602 C-4
Q3626 B-4 TL3603 D-4
Q3627 B-4 TL3604 C-4
Q3628 D-3 TL3605 D-5
Q4001 D-2 TL3606 D-4
Q4002 D-2
Q4003 D-2
Q4005 D-3 P1001 D-6
Q4301 B-1 P1101 E-7
Q4314 B-1 P7601 D-6
Q4701 A-5 P7602 D-6
Q4702 A-5 P7901 A-7
Q7601 D-6 P7902 A-1
Q7602 D-6 PP1101 A-7
PP3002 D-4
PP3401 E-4
QR1001 C-5 PP3402 E-3
QR1003 A-3 PP3403 E-2
QR1004 A-3 PP3501 D-5
QR1005 A-3
QR1006 A-3
QR3603 C-4
QR3604 C-4
QR3605 D-3
QR4001 B-2
QR4303 B-2
QR4701 A-5
QR4702 A-5
QR4703 B-5
QR4704 B-5
QR4705 B-5
QR4706 B-6
QR6202 A-2
QR6204 A-4
QR6205 A-4
QR6206 A-4
QR6207 A-4
QR6208 A-4
QR6209 A-4
ADDRESS INFORMATION
Test Land
Connector
Transistor
Transistor & Resistor
Integrated Circuit

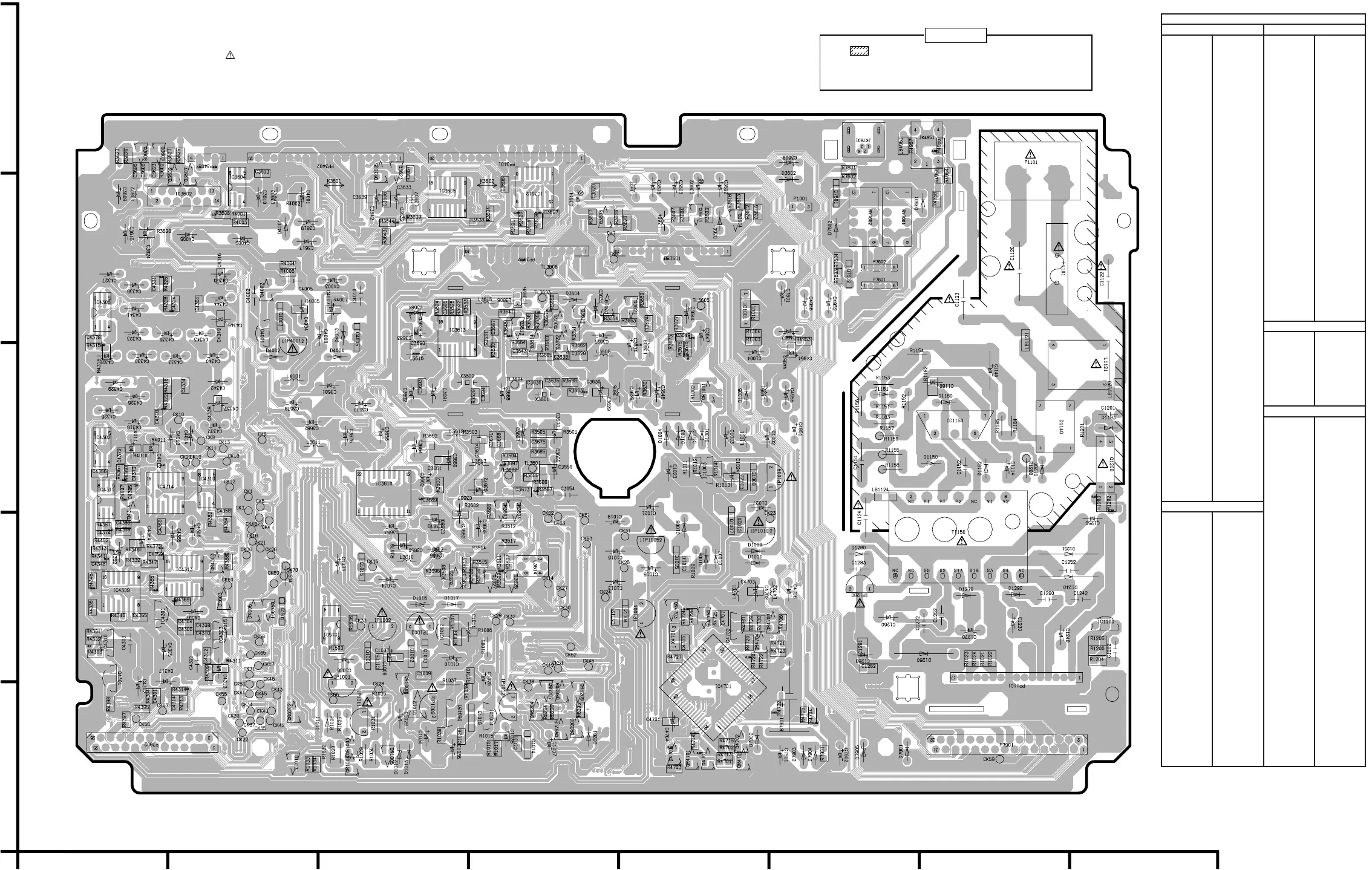

MAIN C.B.A.(COMPONENT SIDE)
THE MARK INDICATES THE PRIMARY CIRCUIT TO
DISTINGUISH THE PRIMARY FROM THE SECONDARY CIRCUIT.
PAY ATTENTION NOT TO RECEIVE AN ELECTRIC SHOCK
DURING REPAIR AND SERVICE OF THE PRODUCTS.
CAUTION
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS
FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE.
232C
HOT
R DV
To Next Page
