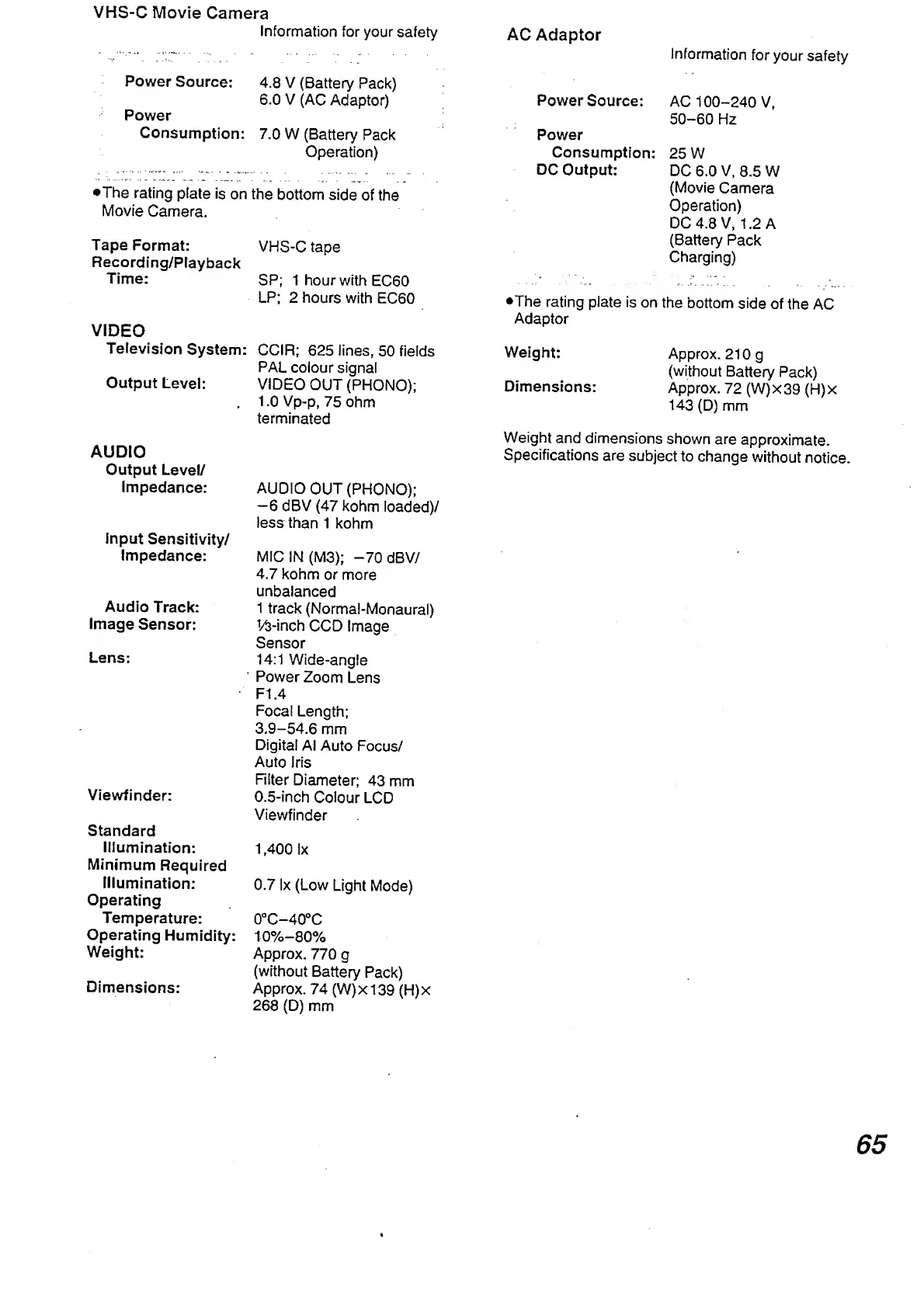

Panasonic NV-RX3A - Page 64

AC Adaptor
VHS-C Movie Camera
Information for your safety
Power Source: 4.8 V (Battery Pack)
6.0 V (AC Adaptor)
Power
Consumption: 7.0 W (Battery Pack
Operation)
•The rating ptate is on the bottom side of the
Movie Camera.
Tape Format: VHS-C tape
Recording/Playback
Time: SP; 1 hour with EC60
LP; 2 hours with EC60
VIDEO
Television System:
Output Level:
AUDIO
Output Level/
Impedance:
Input Sensitivity/
Impedance:
Audio Track:
Image Sensor:
Lens:
Viewfinder:
Standard
Illumination:
Minimum Required
Illumination:
Operating
Temperature:
Operating Humidity:
Weight:
Dimensions:
CCIR; 625 lines, 50 fields
PAL colour signal
VIDEO OUT (PHONO);
1.0 Vp-p, 75 ohm
terminated
AUDIO OUT (PHONO);
-6 dBV (47 kohm loaded)/
less than 1 kohm
MIC IN (M3); -70 dBV/
4.7 kohm or more
unbalanced
1 track (Normal-Monaural)
Vt3-inch CCD Image
Sensor
14:1 Wide-angle
Power Zoom Lens
FI .4
Focal Length;
3.9-54.6 mm
Digital Al Auto Focus/
Auto Iris
Filter Diameter; 43 mm
0.5-inch Colour LCD
Viewfinder
0.7 lx (Low Light Mode)
0°C-40°C
10%-80%
Approx. 770 g
(without Battery Pack)
Approx. 74 (W)xl39 (H)x
268 (D) mm
1,400 lx
Information for your safety
Power Source:
Power
Consumption:
DC Output:
AC 100-240 V,
50-60 Hz
25 W
DC 6.0 V, 8.5 W
(Movie Camera
Operation)
DC 4.8 V, 1.2 A
(Battery Pack
Charging)
•The rating plate is on the bottom side of the AC
Adaptor
Weight: Approx. 210 g
(without Battery Pack)
Dimensions: Approx. 72 (W)x 39 (H)x
143(D) mm
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
65
