Panasonic Omnivision PV-V4640 User Manual

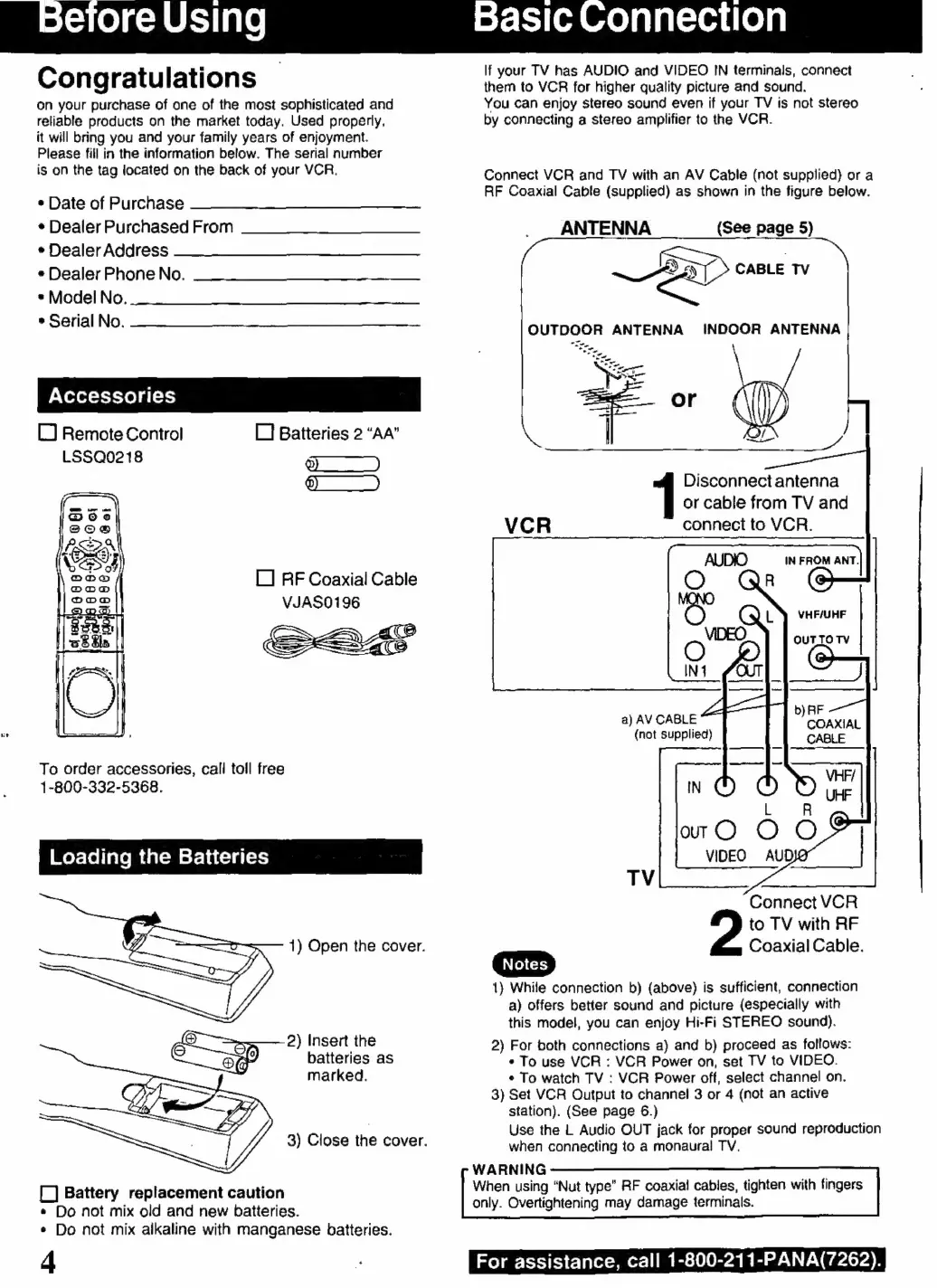

Before Using
Basic Connection
Congratulations
on your purchase of one of the most sophisticated and
reliable products on the market today. Used properly,
it will bring you and your family years of enjoyment.
Please fill in the information below. The serial number
is on the tag located on the back of your VCR.
e Date of Purchase
+ Dealer Purchased From
* Dealer Address
* Dealer Phone No.
* Model No.
* Serial No.
Accessories
O Remote Control O Batteries 2 “AA”
LSSQ0218 SD
O RF Coaxial Cable
VJAS0196
To order accessories, call toll free
1-800-332-5368.
Loading the Batteries
== 1) Open the cover.
S
2)
Inser
the
3
batteries
as
marked.
[E] Battery replacement caution
*« Do not mix old and new batteries.
* Do not mix alkaline with manganese batteries.
4
3) Close the cover.
If your TV has AUDIO and VIDEO IN terminals, connect
them to VCR for higher quality picture and sound.
You can enjoy stereo sound even if your TV is not stereo
by connecting a stereo amplifier to the VCR.
Connect VCR and TV with an AV Cable (not supplied) or a
RF Coaxial Cable (supplied) as shown in the figure below.
ANTENNA
(See page 5)
CABLE TV
~~
OUTDOOR ANTENNA
ree,
“ree,
a
e.
To,
Equ
ym
INDOOR ANTENNA
or
Disconnect antenna
or cable from TV and
connect to VCR.
VCR
b} RF
COAXIAL
a) AV CABLE
(not supplied)
TV
Connect VCR
to TV with RF
T Coaxial Cable.
1} While connection b) (above) is sufficient, connection
a) offers better sound and picture (especially with
this model, you can enjoy Hi-Fi STEREO sound).
2) For both connections a) and b) proceed as follows:
e To use VCR : VCR Power on, set TV to VIDEO.
e To watch TV : VCR Power off, select channel on.
3) Set VCR Output to channel 3 or 4 (not an active
station). (See page 6.)
Use the L Audio OUT jack for proper sound reproduction
when connecting to a monaural TV.
WARNING l
When using “Nut type” RF coaxial cables, tighten with fingers
only. Overtightening may damage terminals.
For assistance, call 1-800-211-PANA(7262).
