Connections
32 - ENGLISH
Getting Started
Before connecting to the projector
z
Before connecting, carefully read the operating instructions for the external device to be connected.
z
Turn off the power of all devices before connecting cables.
z
Acquire any connection cable necessary to connect the external device to the system that is either not supplied
with the device or not available as an option.
z
Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture. In
this case, a time base corrector (TBC) must be connected.
z
The projector accepts video signals, S video signals, analog RGB signals (synchronous signals are TTL level),
and digital signals.
z
Some computer models are not compatible with the projector.
z
Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image
may not display properly.
z
Refer to “List of compatible signals” (
page 118) for the types of video signals that can be used with the
projector.
■

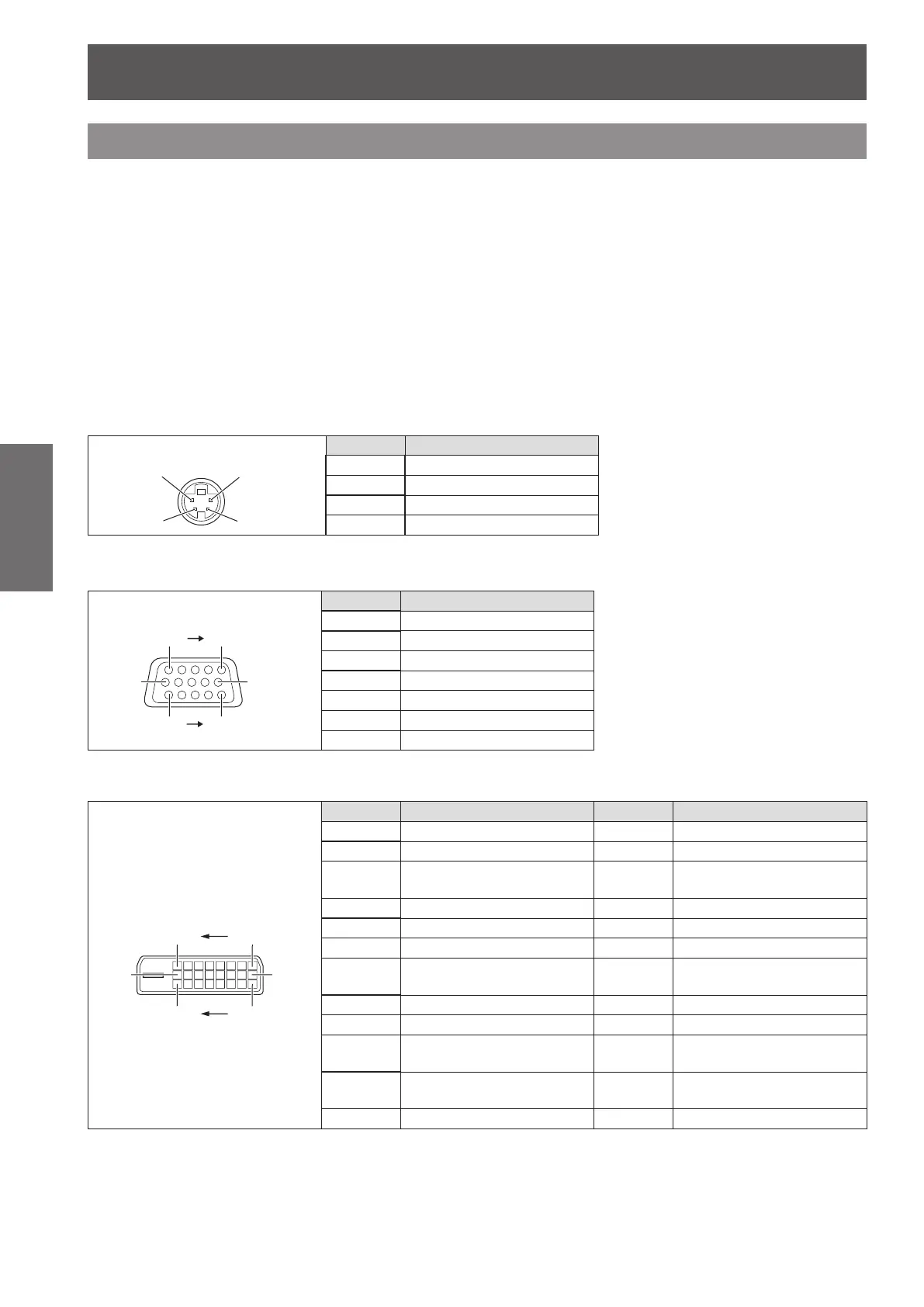

<S-VIDEO IN> terminal pin assignments and signal names
Outside view Pin No. Signal name
(1) (2)
(3) (4)
(1) Ground (luminance signal)
(2) Ground (color signal)
(3) Luminance signal
(4)
Color signal
■
<RGB 2 IN> terminal pin assignments and signal names
Outside view Pin No. Signal name
(4) and (9) are not used.
(5) - (8), (10), and (11) are GND
terminals.
(10)
(6)
(11) (15)
(1) (5)
(1) R/P
R
(2) G/Y
(3) B/P
B
(12) DDC data
(13) SYNC/HD
(14) VD
(15) DDC clock
■
<DVI-D IN> terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name
(17)(24)
(16)
(9)
(1)(8)
(1) T.M.D.S data 2– (13) ―
(2) T.M.D.S data 2+ (14) +5 V
(3)
T.M.D.S data 2/4
shield
(15) GND
(4) ― (16) Hot plug detection
(5) ― (17) T.M.D.S data 0–
(6) DDC clock (18) T.M.D.S data 0+
(7) DDC data (19)
T.M.D.S data 0/5
shield
(8) ― (20) ―
(9) T.M.D.S data 1– (21) ―
(10) T.M.D.S data 1+ (22)
T.M.D.S clock
shield
(11)
T.M.D.S data 1/3
shield
(23) T.M.D.S clock+
(12) ― (24) T.M.D.S clock–
