Connections
ENGLISH - 33
Getting Started
■

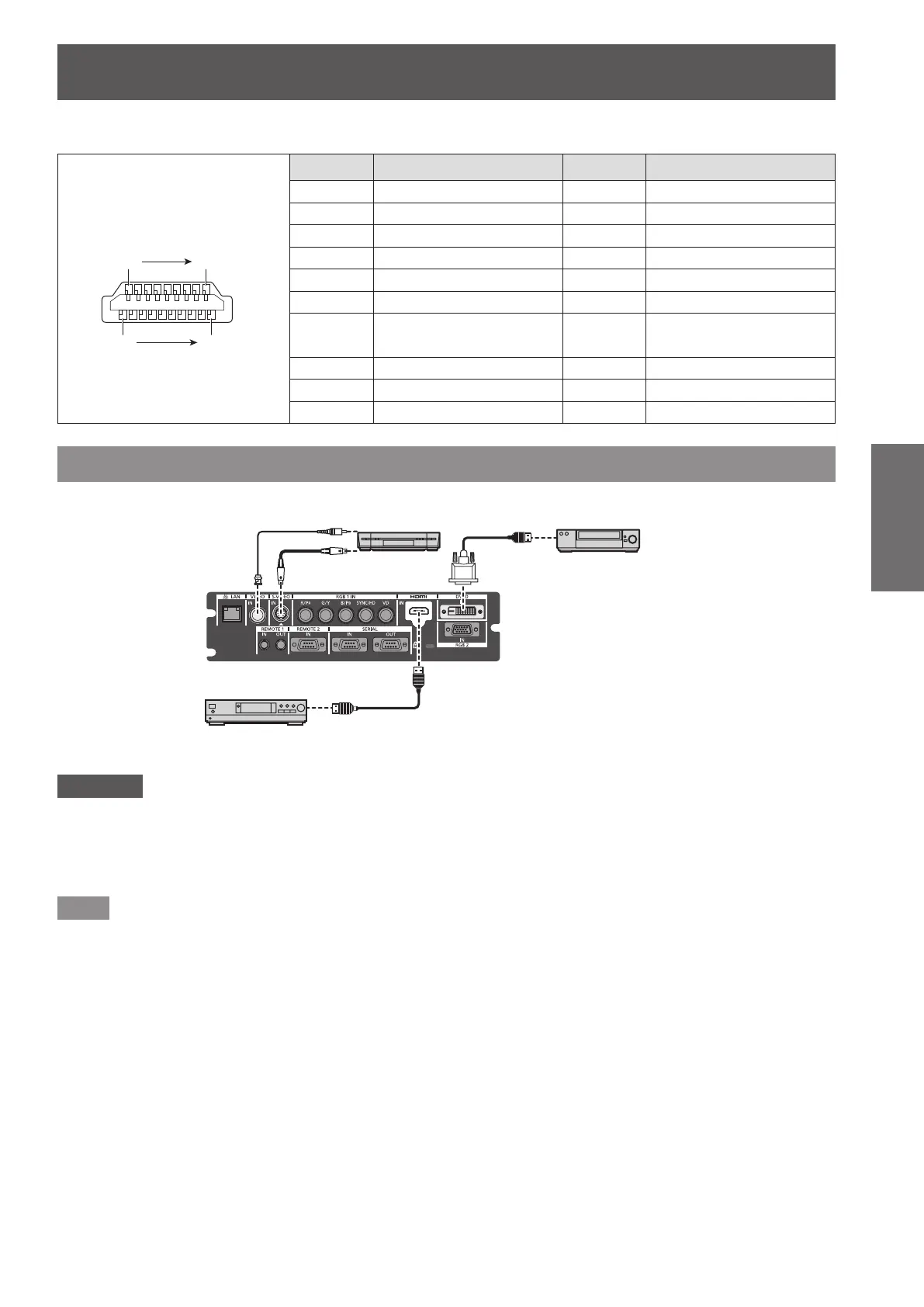

<HDMI IN> terminal pin assignments and signal names
Outside view
Pin No. Signal name Pin No. Signal name
(1) T.M.D.S data 2+ (11) T.M.D.S clock shield
(2) T.M.D.S data 2 shield (12) T.M.D.S clock–
Even-numbered pins (2) to (18) (3) T.M.D.S data 2– (13) CEC
(1) (19)
(2) (18)
(4) T.M.D.S data 1+ (14) —
(5) T.M.D.S data 1 shield (15) SCL
(6) T.M.D.S data 1– (16) SDA
(7) T.M.D.S data 0+ (17)
DDC/CEC
GND
Odd-numbered pins (1) to (19) (8) T.M.D.S data 0 shield (18) +5 V
(9) T.M.D.S data 0– (19) Hot plug detection
(10) T.M.D.S clock+
Connecting example: AV equipment
VCR (with built-in TBC)
HDMI terminal (HDCP)
or
Blu-ray disc player
Attention
z
Always use one of the following when connecting a VCR.
A VCR with built-in time base corrector (TBC)
A time base corrector (TBC) between the projector and the VCR
z
If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base
corrector (TBC) between the projector.
Note
z
The <DVI-D IN> terminal can be connected to HDMI- or DVI-D-compliant devices. However, images may not
appear or may not be displayed properly on some devices.(
page 61)
z
Use an HDMI cable that conforms to HDMI standards such as an HDMI High Speed cable. If a cable that does
not meet HDMI standards is used, video may be interrupted or may not be displayed.
z
The <HDMI IN> terminal of the projector can be connected to an external device with a DVI-D terminal by using
an HDMI/DVI conversion cable, but some devices may not project the image properly or function properly.
z
When the DVI-D signal is input, EDID setting may be required depending on the connected device. (
page 61)
z
The projector does not support VIERA Link (HDMI).
To Next Page
