Mechanical Disassembly

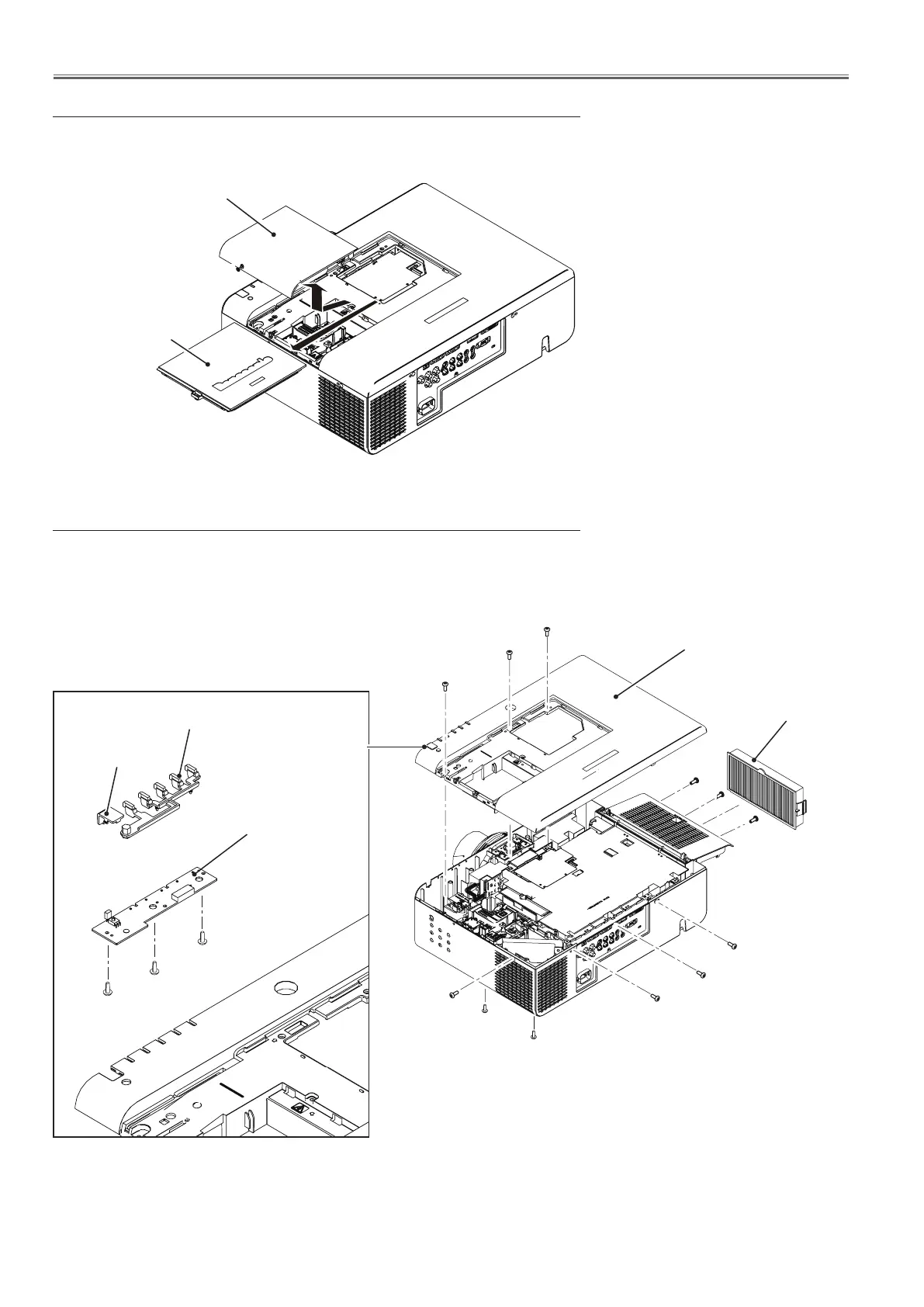

1. Lamp cover and prism cover removal
1. Loosen 1 screw-A and remove the lamp cover upward off.
2. Loosen 1 screw-B and remove the prism cover by sliding it in the arrow
direction.
Air filter unit
T3x8
T3x8
Cabinet top assy
RC front
window
LED decoration
F/T RC+LED
board
Prism cover
2. Cabinet top removal
1. Open the filter cover and remove the air filter unit.
2. Remove 12 screws-A (M3x8) to take the cabinet top assy upward off.
A
B
Lamp cover
A
A
A
A
A
A
A
A
A
A
A
A
T3x8
