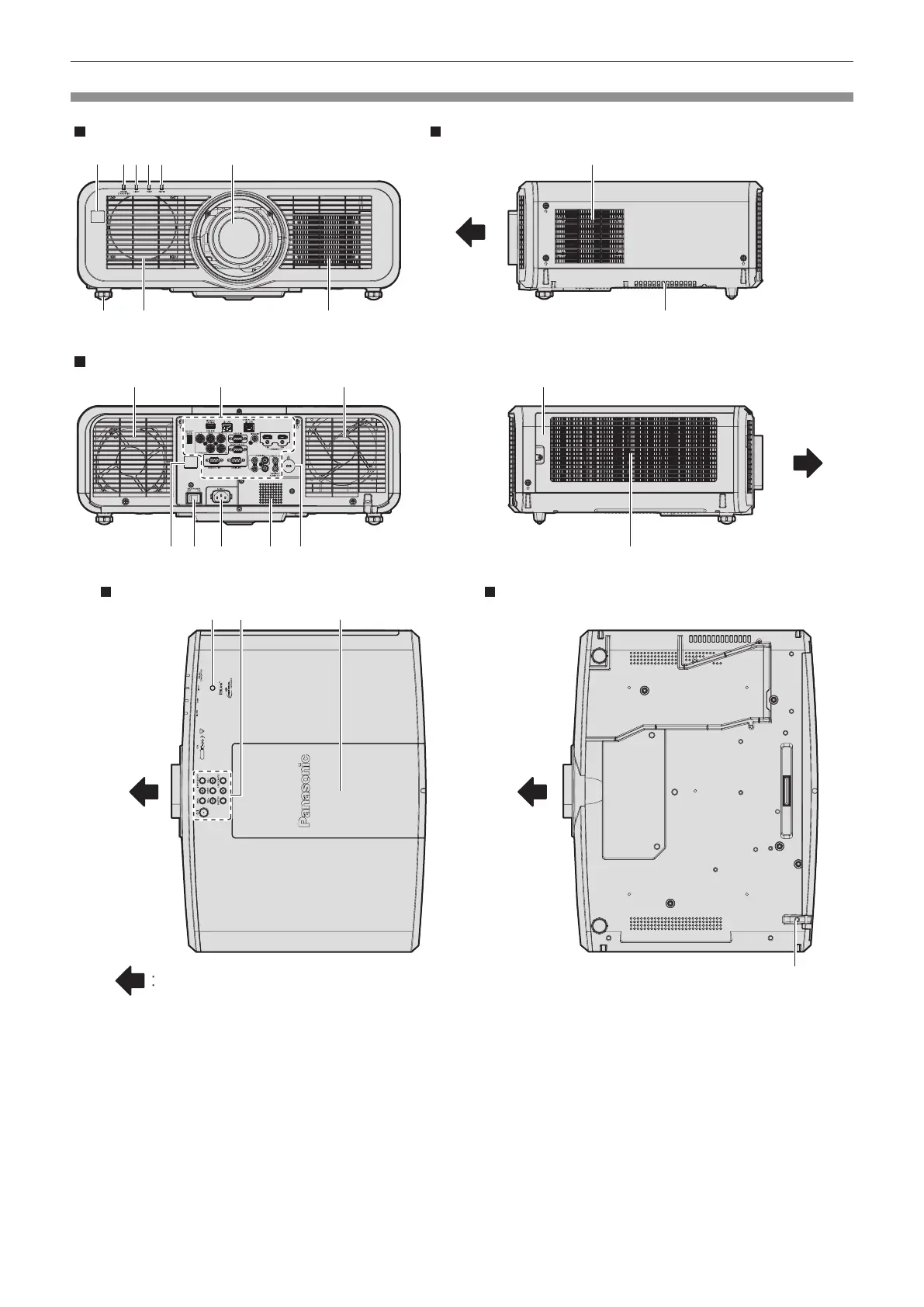

Projector body
1 2 3
4
7
9
8
5
6
8
88
16
11 12 13 14 815
10 9
Front
Side
Rear
20
17 18 19
Projection direction
BottomTop
1 Remote control signal receiver (front)
2 Power indicator <ON (G)/STANDBY (R)>
Indicates the status of the power.
3 Light source indicator <LIGHT>
Indicates the status of the light source.
4 Temperature indicator <TEMP>
Indicates the internal temperature status.
5 Filter indicator <FILTER>
Indicates the status of the air lter unit.
6 Projection lens
7 Adjustable feet
Adjusts the projection angle.
8 Air intake port
9 Air exhaust port
10 Connecting terminals (x page 32)
11 Remote control signal receiver (rear)
12 <MAIN POWER> switch
Turns on/off the main power.
Connect the supplied power cord.
14 Speaker
15 Security slot
This security slot is compatible with the Kensington security
cables.
16 Air lter cover
There is the air lter unit inside.
