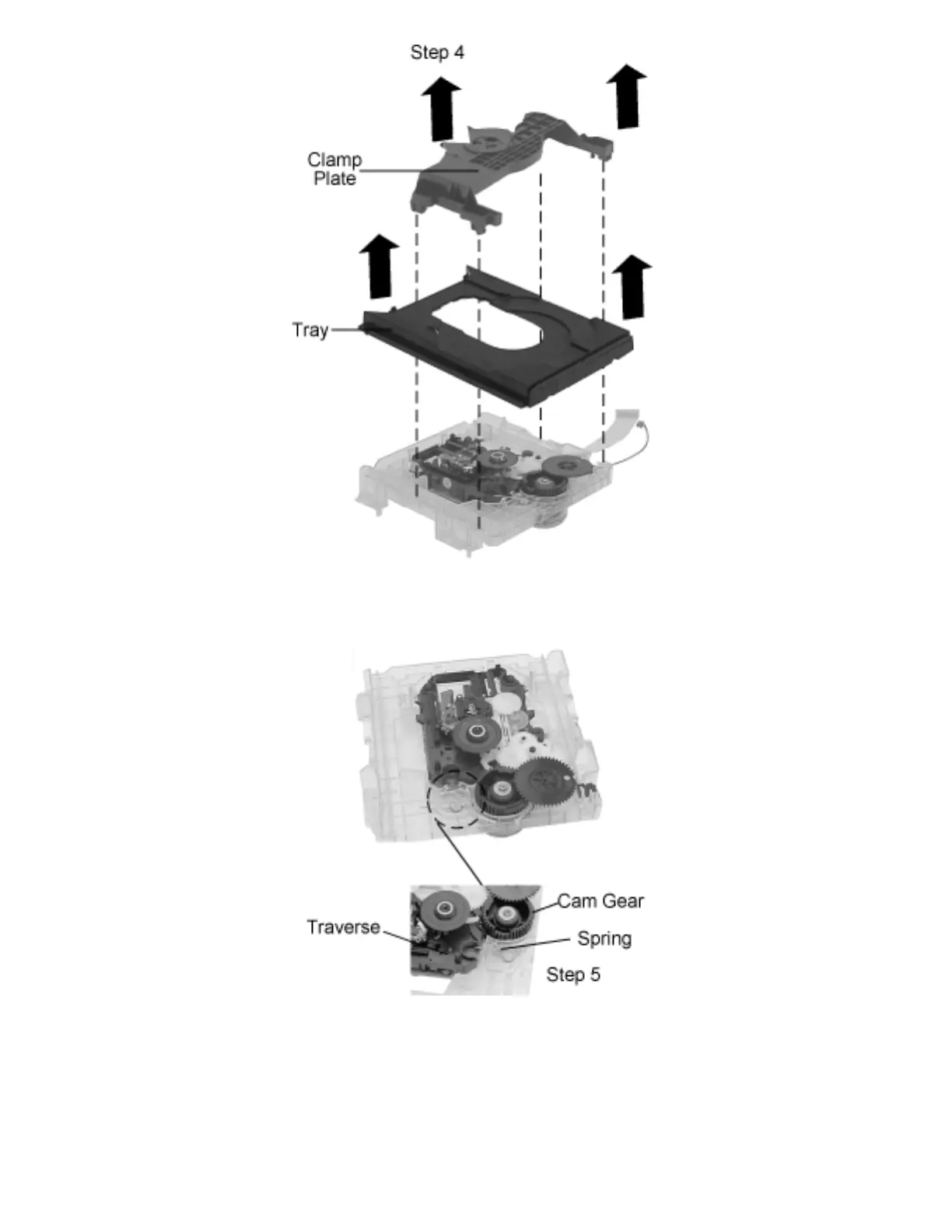

Step 4: Remove the clamp plate and tray in sequence.
Step 5: Push the cam gear drive to about 30 anticlockwise.
Shift the spring away from the traverse.
