10.3 Main Component Replacement Procedures
TOP PREVIOUS NEXT

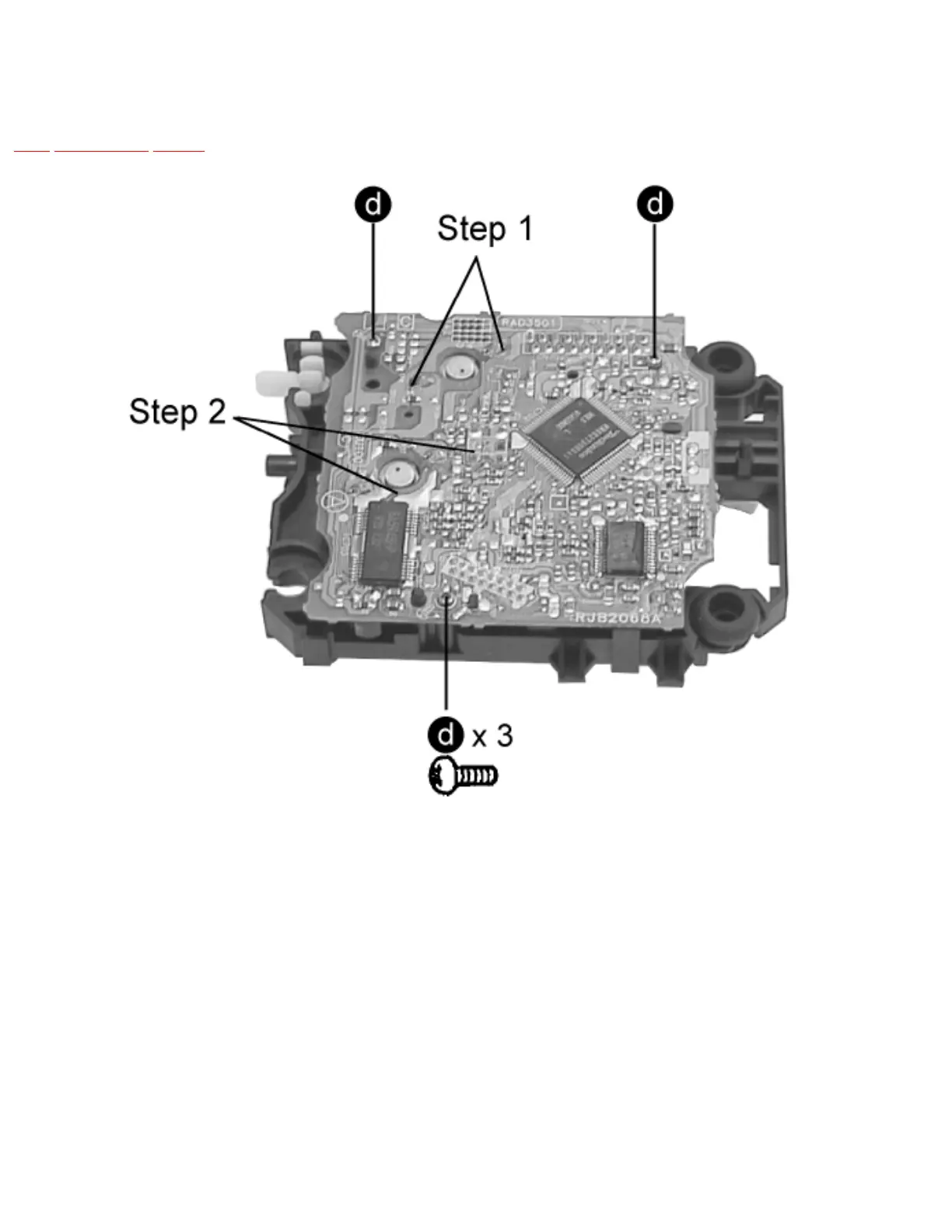

Step 1: Desolder 2 terminals of the traverse motor.
Step 2: Desolder 2 terminals of the spindle motor.
