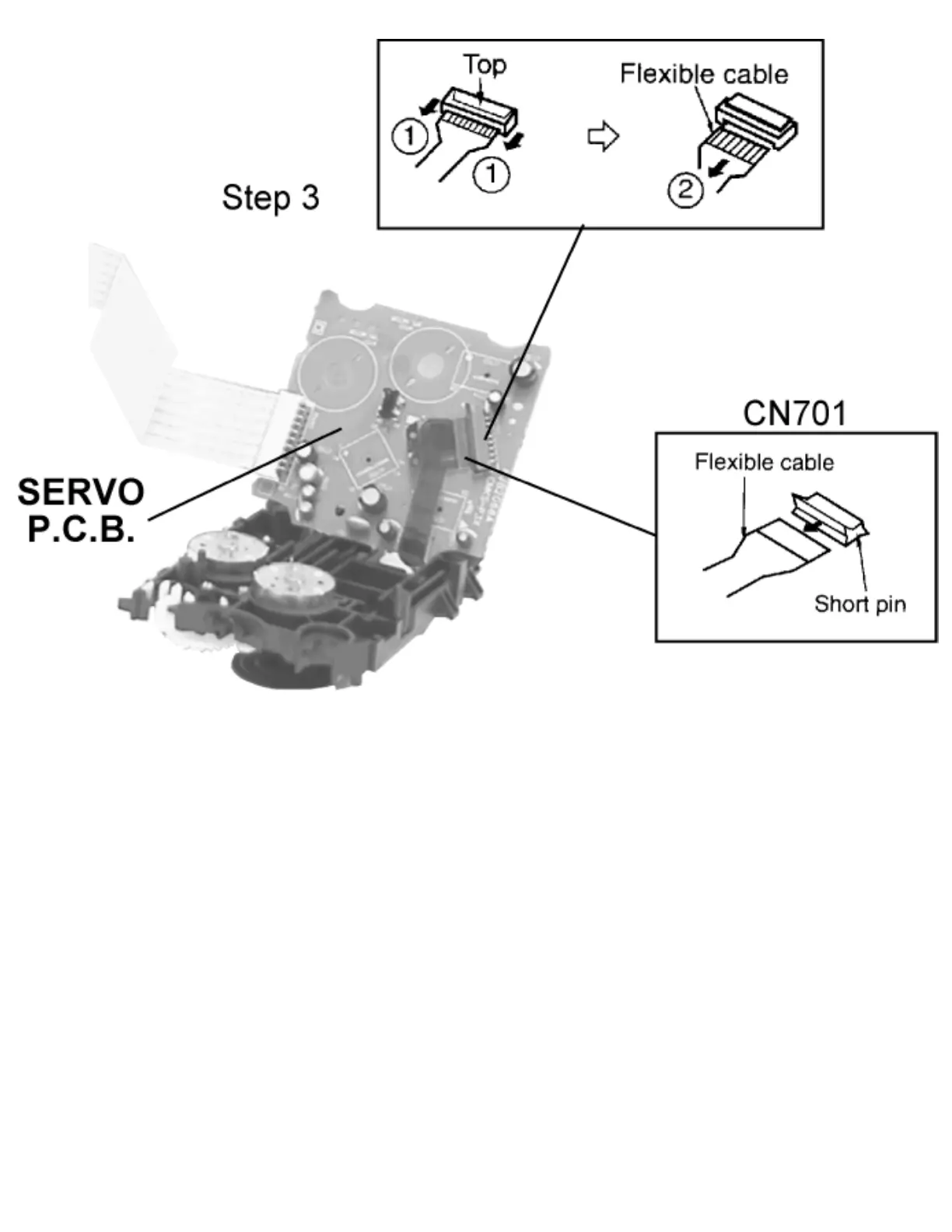

Step 3: Remove the flexible cable from CN701.
● Removal of the flexible cable.
Push the top of the connector in the direction of arrow 1 and pull out the flexible cable in the direction of arrow
2.
