Note:
1. Follow the reverse procedure to replace the CD Traverse Unit and CD Tray.

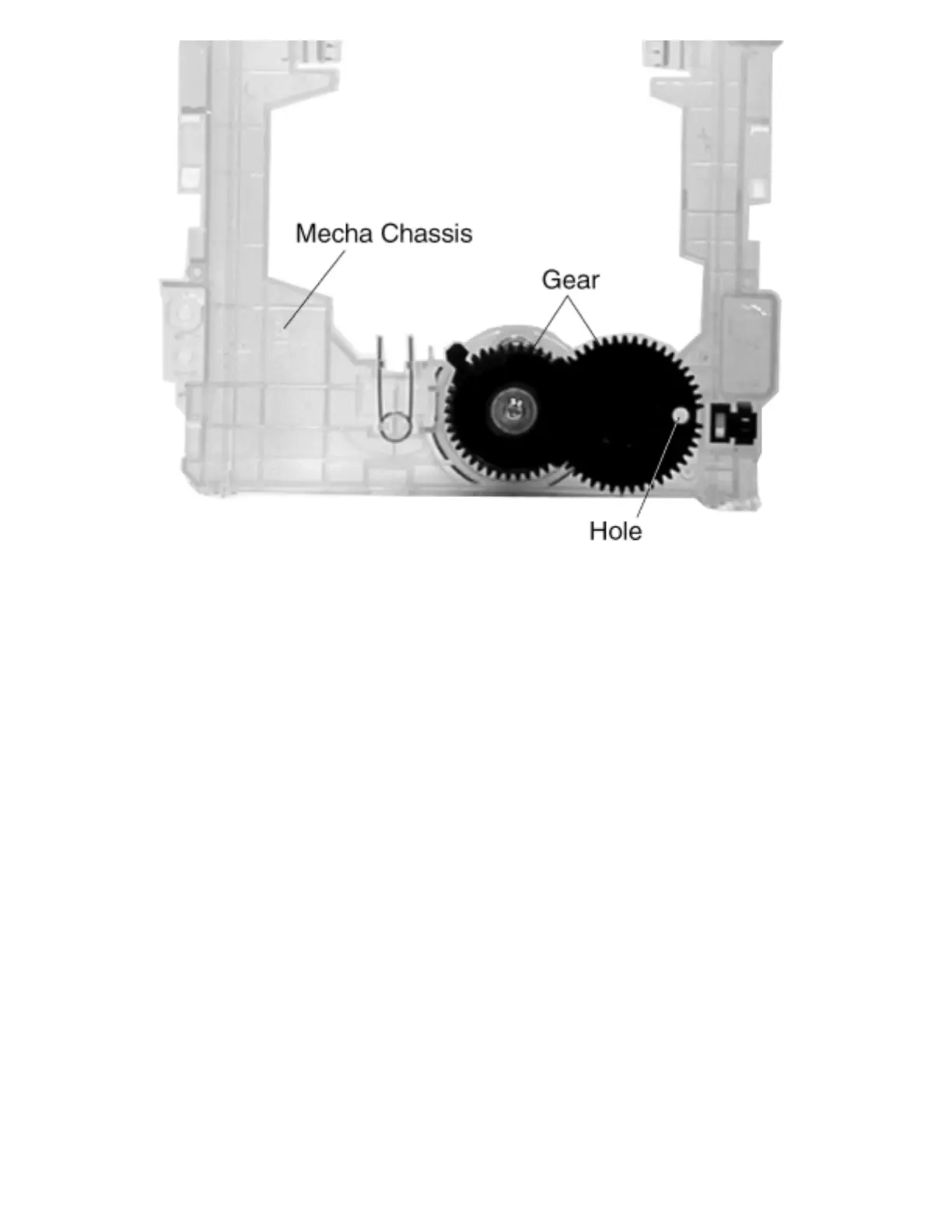

2. Make sure that the two gear is in this position and the hole on the right gear is align with the hole
below it when replacing the CD Traverse Unit and CD Tray.
