(5) Use shielded wires for inter-unit control wiring (c)
and ground the shield on both sides, otherwise
misoperation from noise may occur. (Fig. 4-4)
Connect wiring as shown in Section 4-3. “Wiring
System Diagram.”
Fig. 4-4
(6) Use the standard power supply cables for Europe
(such as H05RN-F or H07RN-F which conform to
CENELEC (HAR) rating specifications) or use the
cables based on IEC standard. (245 IEC57, 245 IEC66)
Fig. 4-3

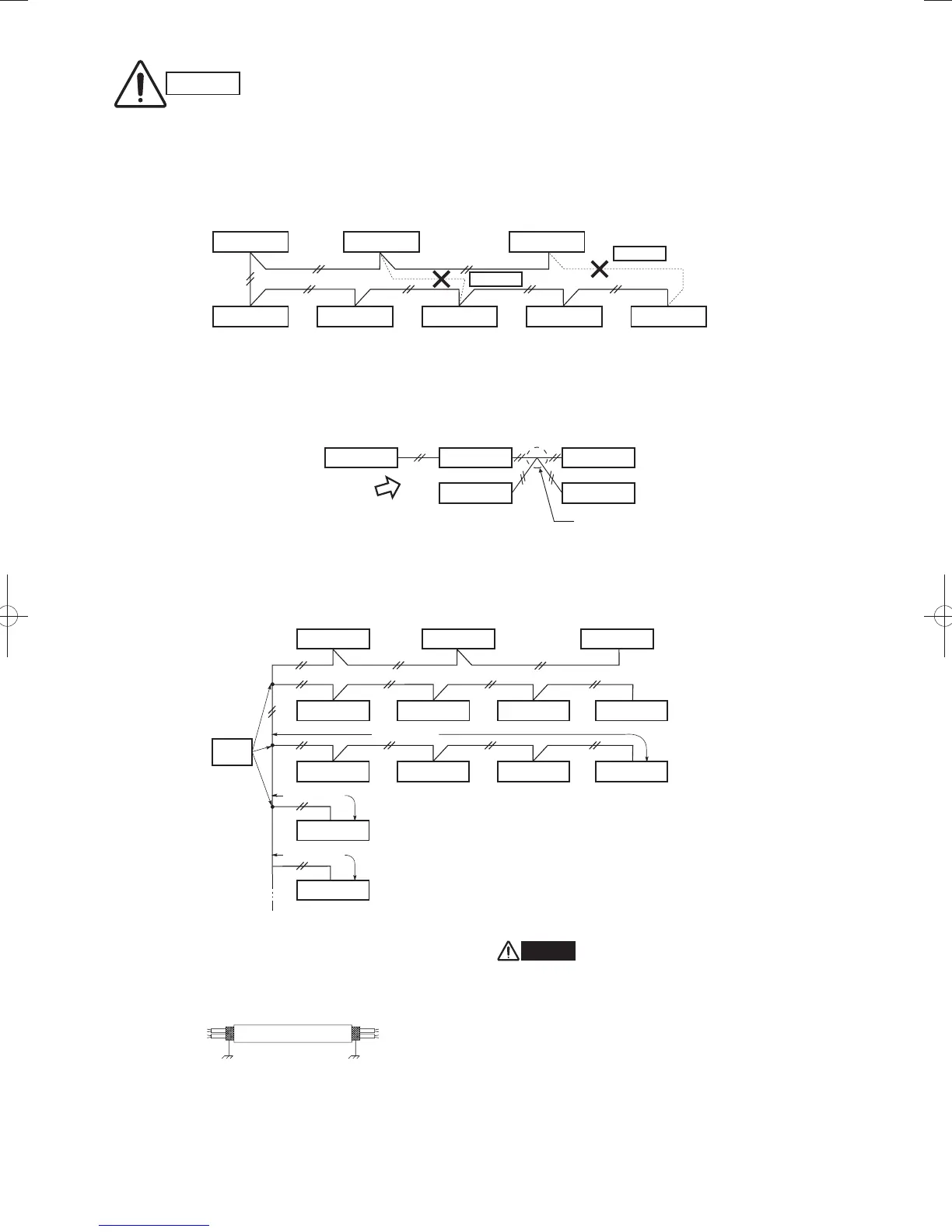

(4) If branching the inter-unit control wiring, the number of branch points should be 16 or fewer.
(Branches less than 1 m are not included in the total branch number.) (Fig. 4-3)
Fig. 4-1
Fig. 4-2
(3) Do not install inter-unit control wiring such as star branch wiring. Star branch wiring causes mis-address setting.
(2) Do not install the inter-unit control wiring in a way that forms a loop. (Fig. 4-1)
WARNING
Loose wiring may cause the terminal to overheat or result
in unit malfunction. A fire hazard may also exist. Therefore,
ensure that all wiring is tightly connected.
When connecting each power wire to the terminal, follow the
instructions in “How to connect wiring to the terminal” and
fasten the wire securely with the fixing screw of the terminal
plate.
Outdoor unit
Outdoor unit Outdoor unit
Indoor unit
Indoor unit Indoor unit
Indoor unit
Indoor unit
Prohibited
Prohibited
Outdoor unit Outdoor unit Outdoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit Indoor unit
Indoor unit
Indoor unit
Branch
point
more than 1 m
more than 1 m
less than 1 m
16 or fewer
Shielded wire
Ground
Ground
Outdoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Branch point
NO
CAUTION
(1) When linking outdoor units in a network, disconnect the terminal extended from the short plug from all outdoor units
except any one of the outdoor units.
(When shipping: In shorted condition.)
For a system without link (no connection wiring between outdoor units), do not remove the short plug.
