8.15. Disassembly of Button Right
P. C. B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Illumination Jog P.C.B.”.
• Refer to “Disassembly of BT&NFC P.C.B.”.
• Refer to “Disassembly of DJ Cabinet Unit”.

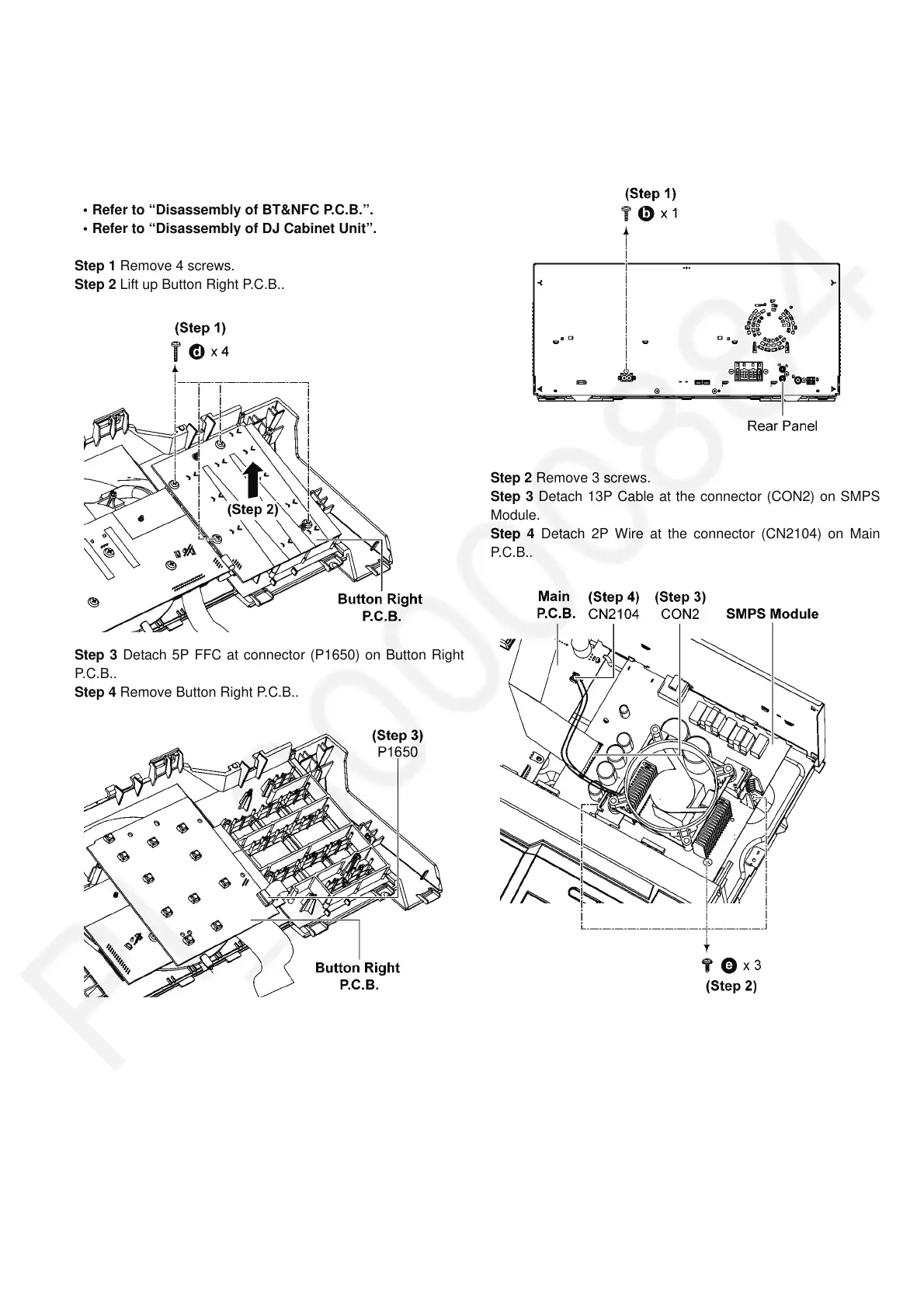

Step 1 Remove 4 screws.
Step 2 Lift up Button Right P.C.B..
Step 3 Detach 5P FFC at connector (P1650) on Button Right
P.C .B..
Step 4 Remove Button Right P.C.B..
8.16. Disassembly of SMPS Module
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove screw.
Step 2 Remove 3 screws.
Step 3 Detach 13P Cable at the connector (CON2) on SMPS
Module.
Step 4 Detach 2P Wire at the connector (CN2104) on Main
P. C .B ..
