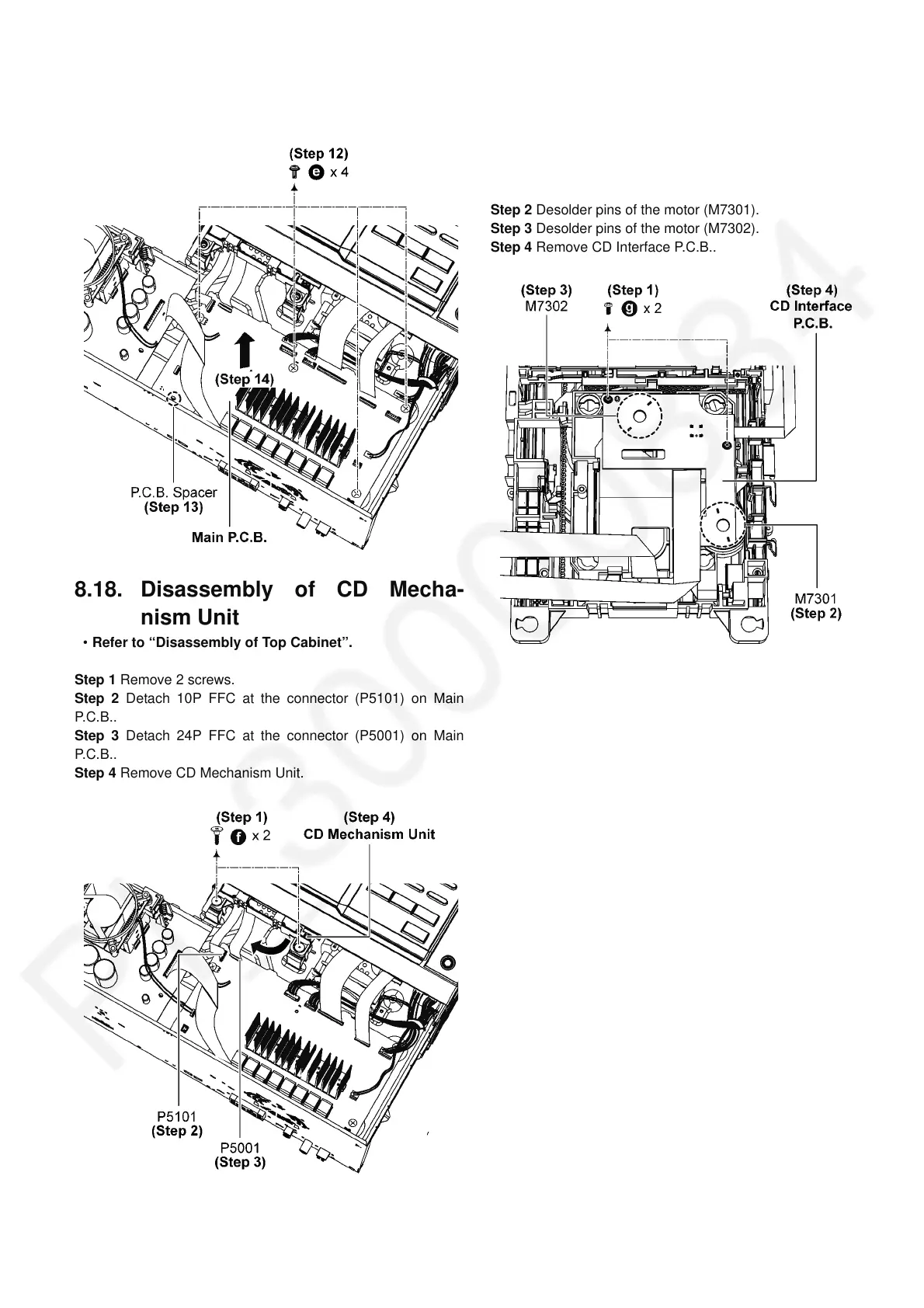

Step 12 Remove 4 screws.
Step 13 Release P.C.B. Spacer.
Step 14 Remove Main P.C.B..
8.18. Disassembly of CD Mecha-
nism Unit
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove 2 screws.
Step 2 Detach 10P FFC at the connector (P5101) on Main
P.C .B..
Step 3 Detach 24P FFC at the connector (P5001) on Main
P.C .B..
Step 4 Remove CD Mechanism Unit.
8.19. Disassembly of CD Interface
P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of CD Mechanism Unit”.
Step 1 Remove 2 screws.
Step 2 Desolder pins of the motor (M7301).
Step 3 Desolder pins of the motor (M7302).
Step 4 Remove CD Interface P.C.B..
