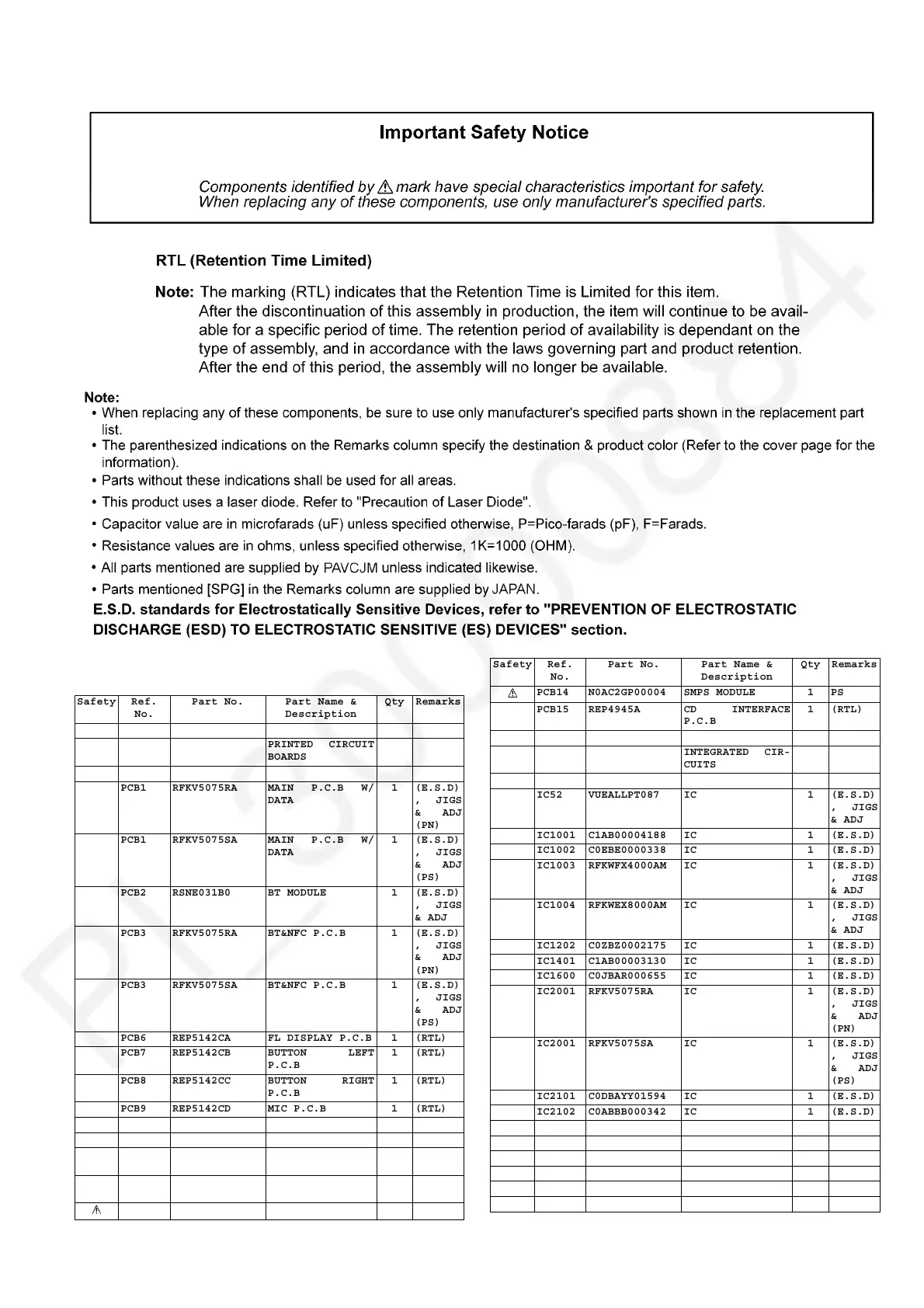

15.6. Electrical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 RFKV5075RA MAIN P.C.B W/
DATA
1 (E.S.D)
, JIGS
& ADJ
(PN)
PCB1 RFKV5075SA MAIN P.C.B W/
DATA
1 (E.S.D)
, JIGS
& ADJ
(PS)
PCB2 RSNE031B0 BT MODULE 1 (E.S.D)
, JIGS
& ADJ
PCB3 RFKV5075RA BT&NFC P.C.B 1 (E.S.D)
, JIGS
& ADJ
(PN)
PCB3 RFKV5075SA BT&NFC P.C.B 1 (E.S.D)
, JIGS
& ADJ
(PS)
PCB6 REP5142CA FL DISPLAY P.C.B 1 (RTL)
PCB7 REP5142CB BUTTON LEFT
P.C.B
1 (RTL)
PCB8 REP5142CC BUTTON RIGHT
P.C.B
1 (RTL)
PCB9 REP5142CD MIC P.C.B 1 (RTL)
PCB10 REP5142CE USB P.C.B 1 (RTL)
PCB11 REP5142CF VOLUME JOG P.C.B 1 (RTL)
PCB12 REP5142CG ILLUMINATION JOG
P.C.B
1 (RTL)
PCB13 REP5142CH MULTI CONTROL
P.C.B
1 (RTL)
PCB14 N0AB2GP00003 SMPS MODULE 1 PN
PCB14 N0AC2GP00004 SMPS MODULE 1 PS
PCB15 REP4945A CD INTERFACE
P.C.B
1 (RTL)
INTEGRATED CIR-
CUITS
IC52 VUEALLPT087 IC 1 (E.S.D)
, JIGS
& ADJ
IC1001 C1AB00004188 IC 1 (E.S.D)
IC1002 C0EBE0000338 IC 1 (E.S.D)
IC1003 RFKWFX4000AM IC 1 (E.S.D)
, JIGS
& ADJ
IC1004 RFKWEX8000AM IC 1 (E.S.D)
, JIGS
& ADJ
IC1202 C0ZBZ0002175 IC 1 (E.S.D)
IC1401 C1AB00003130 IC 1 (E.S.D)
IC1600 C0JBAR000655 IC 1 (E.S.D)
IC2001 RFKV5075RA IC 1 (E.S.D)
, JIGS
& ADJ
(PN)
IC2001 RFKV5075SA IC 1 (E.S.D)
, JIGS
& ADJ
(PS)
IC2101 C0DBAYY01594 IC 1 (E.S.D)
IC2102 C0ABBB000342 IC 1 (E.S.D)
IC2103 C0DBAYY01594 IC 1 (E.S.D)
IC2104 C0DBGYY03909 IC 1 (E.S.D)
IC2106 C0DBEYY00146 IC 1 (E.S.D)
IC2107 C0DBGYY00911 IC 1 (E.S.D)
IC2108 C0DBGYY03909 IC 1 (E.S.D)
IC2501 C0JBAZ002990 IC 1 (E.S.D)
