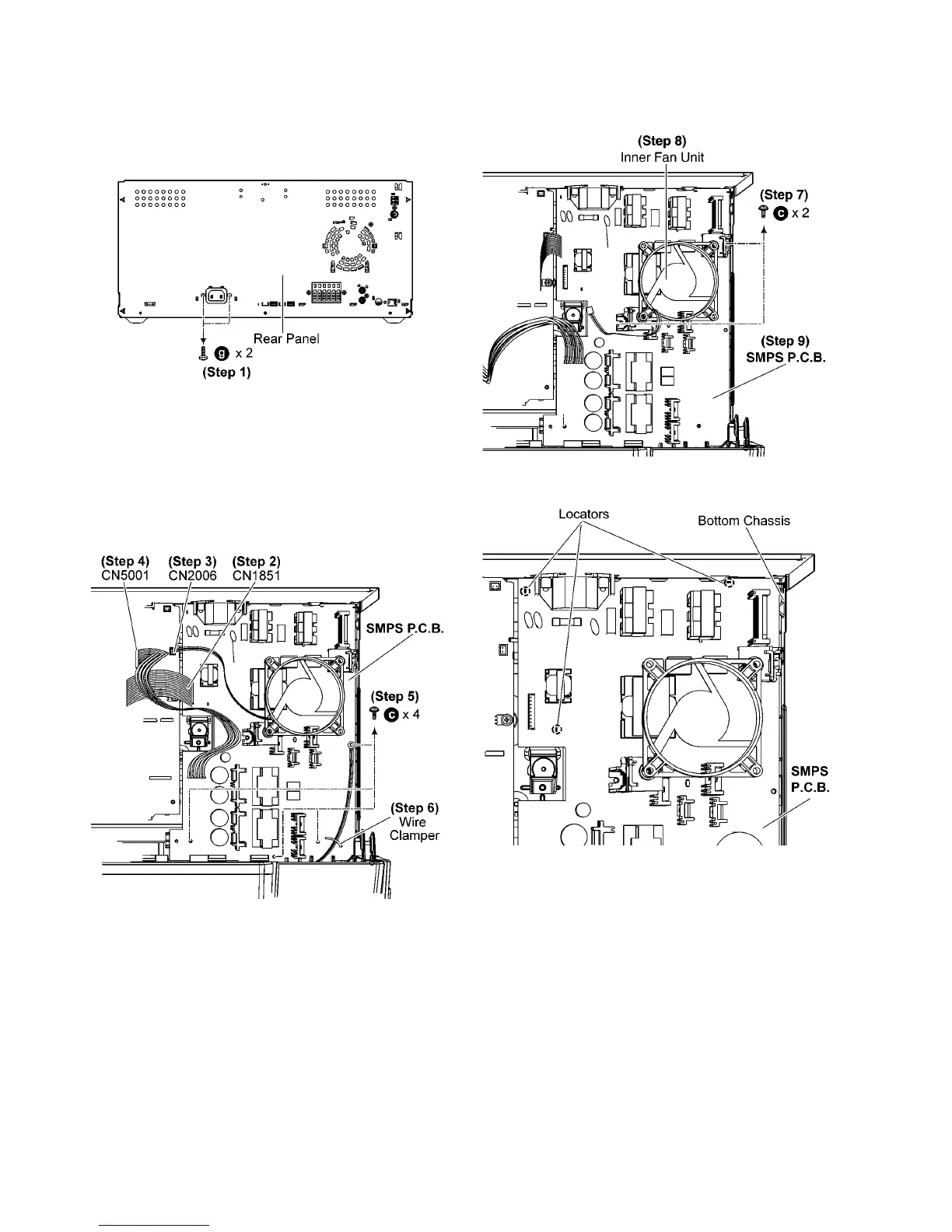

9.21. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of CD Mechanism Unit”.
Step 1 Remove 2 screws.
Step 2 Detach 11P Cable at the connector (CN1851) on SMPS
P.C.B..
Step 3 Detach 2P Wire at the connector (CN2006) on Main
P.C.B..
Step 4 Detach 12P Wire at the connector (CN5001) on Main
P.C.B..
Step 5 Remove 4 screws.
Step 6 Remove the Wire Clamper.
Step 7 Remove 2 screws
Step 8 Remove the Inner Fan Unit.
Step 9 Remove the SMPS P.C.B..
Caution: During assembling, ensure that the SMPS P.C.B.
are located properly onto the Bottom Chassis
