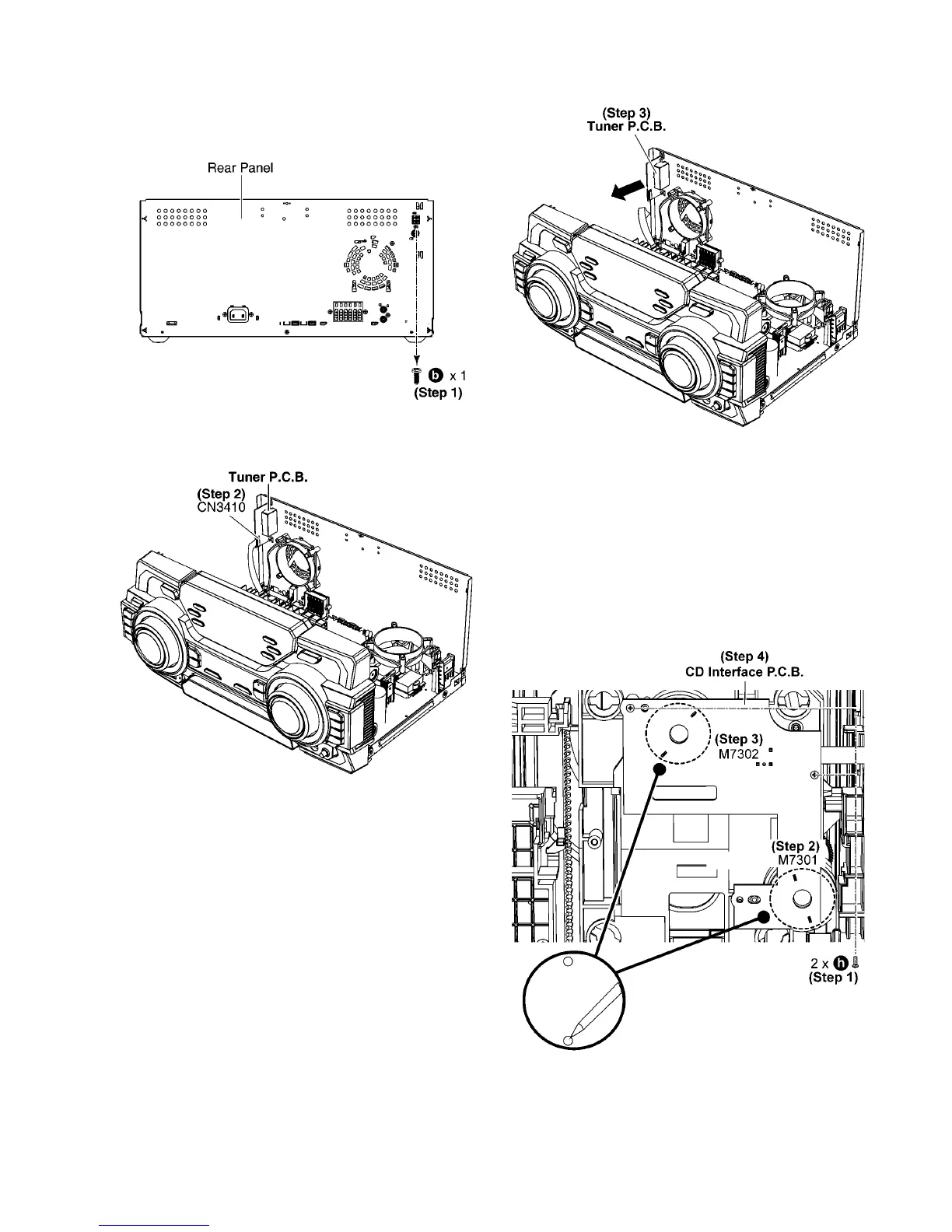

9.22. Disassembly of Tuner P.C.B.
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove 1 screw.
Step 2 Detach 12P FFC at the connector (CN3410) on Tuner
P.C.B..
Step 3 Remove the Tuner P.C.B..
9.23. Disassembly of CD Interface
P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of CD Mechanism Unit”.
Step 1 Remove 2 screws.
Step 2 Desolder pins of the motor (M7301).
Step 3 Desolder pins of the motor (M7302).
Step 4 Remove the CD Interface P.C.B..
