Panasonic SA-PM30MD - Page 10

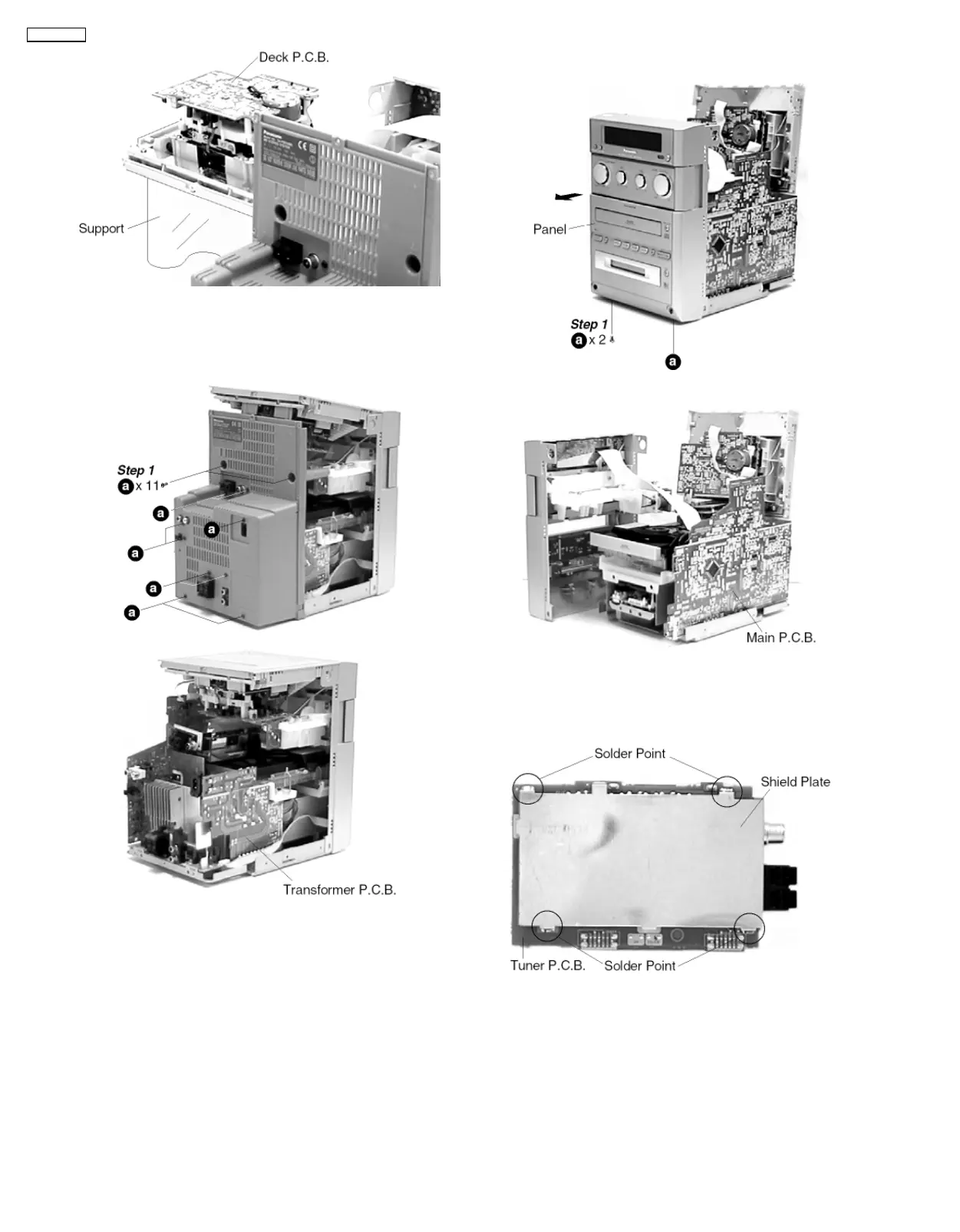

• Check the Deck P.C.B. as shown.
8.1.2. Checking for the Transformer
P.C.B.
• Check the Transformer P.C.B. as shown.
8.1.3. Checking for the Main P.C.B.
Step 2
Remove the panel in the direction of arrow.
• Check the Main P.C.B. as shown.
8.1.4. Checking for the Tuner and FL
P.C.B.
Step 1
Desolder 4 points and remove the shield plate.
