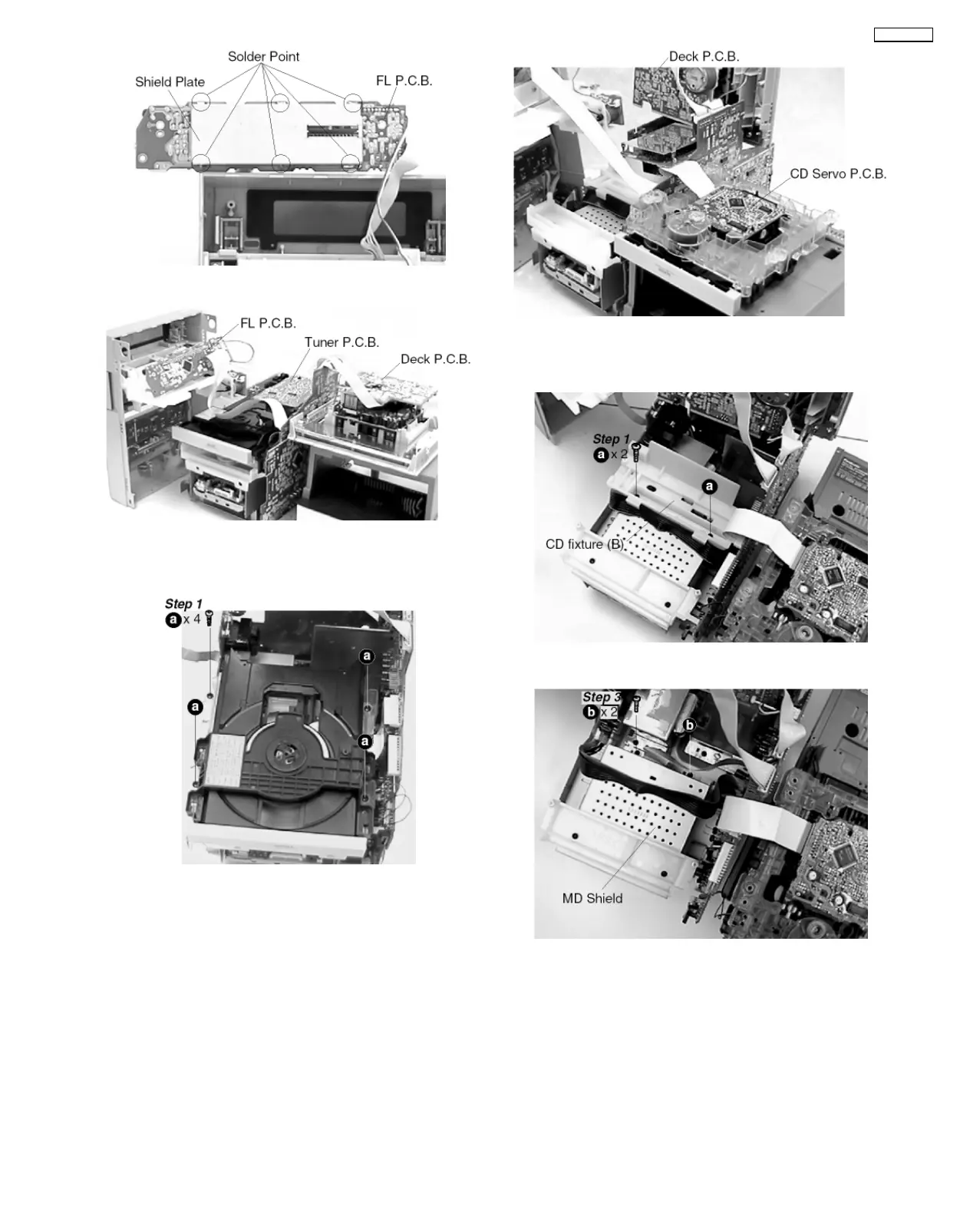

Step 2 Desolder 6 points and remove the shield plate.
• Check the Tuner and FL P.C.B. as shown.
8.1.5. Checking for the CD Servo P.C.B.
Step 2 Lift up the CD unit and place it as shown in the following
figure.
• Check the CD Servo P.C.B. as shown.
8.1.6. Checking for the MD Servo P.C.B.
Step 2 Remove the CD fixture (B).
Step 4 Remove the MD shield and place the MD Servo unit as
shown in the following figure.
• Check the MD Servo P.C.B. as shown.
• When checking the IC1 on the MD Servo P.C.B., it can be
measured with test point on the MD Servo P.C.B.
11
SA-PM30MD
