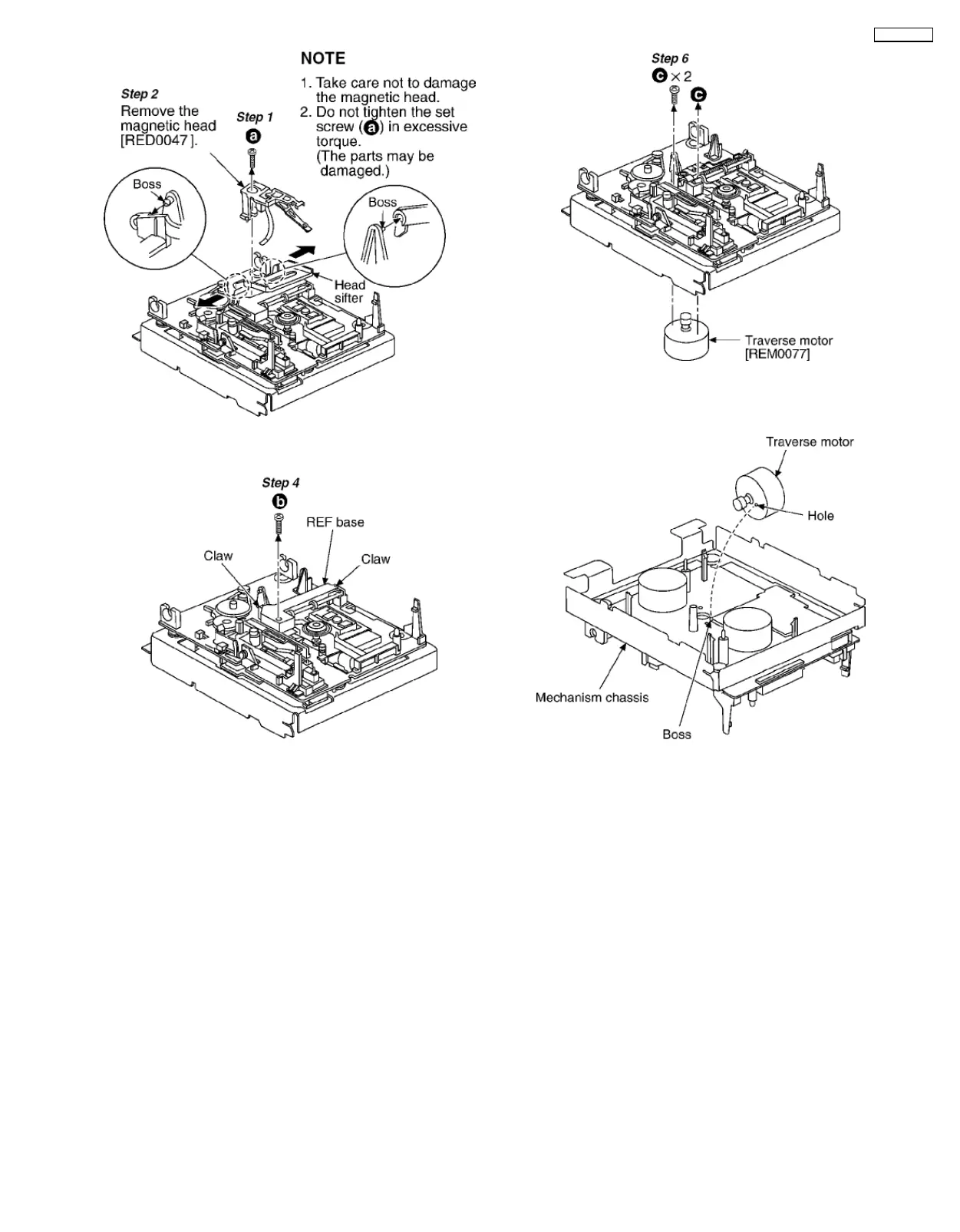

Step 3 Spread the lugs of head shifter and then release the
lugs from boss.
Step 5 Release the 2 claws and then remove the REF base.
This unit is equipped with a self-diagnostic function which, in
the event of a malfunction, automatucally display a code
indication the nature of the malfunction. Use this self-diagnostic
function when servicing the unit.
9.1. Entering self-diagnostic Mode
1. Turn the power on.
2. Press CD play button with no CD, cassette or MD loaded.
3. Press and hold the STOP button for at least 2 seconds, and
while still pressing the STOP button, press the Forward
Skip/Search button for at least 2 seconds. The unit enters
Self-Diagnostic Mode and display “TEST”. Then an error
code (e.g. H01) is displayed, if any. In the case of no error,
“TEST” is displayed on FL.
4. If more than 1 error exists, the display will sequentially show
the respective error codes each time the STOP button is
pressed.
Notice for installing the traverse motor
• Align the hole of traverse motor with the boss of mechanism
chassis and then install the traverse motor.
9.2. Cassette Mechanism Test (For
error code H01, H02, H03, H06,
F01, F02)
1. Load a cassette tape with the erasure prevention tab,
remove from left side only and close the cassette holder.
2. Press "Forward Skip/Search" (Tape will be stop after 2
seconds).
3. Load a cassette tape with the erasure prevention tab,
remove from right side only and close the cassette holder.
4. Press "Reverse Skip/Search" (Tape will be stop after 2
seconds).
5. Load a pre-recorded tape with both side record tabs intact
and close the cassette holder.
6. Press "Tape Play" (After TPS function, tape will stop
automatically).
7. Press "Tape Record" (Tape will not move).
9 Self-Diagnostic Display Function
19
SA-PM30MD
