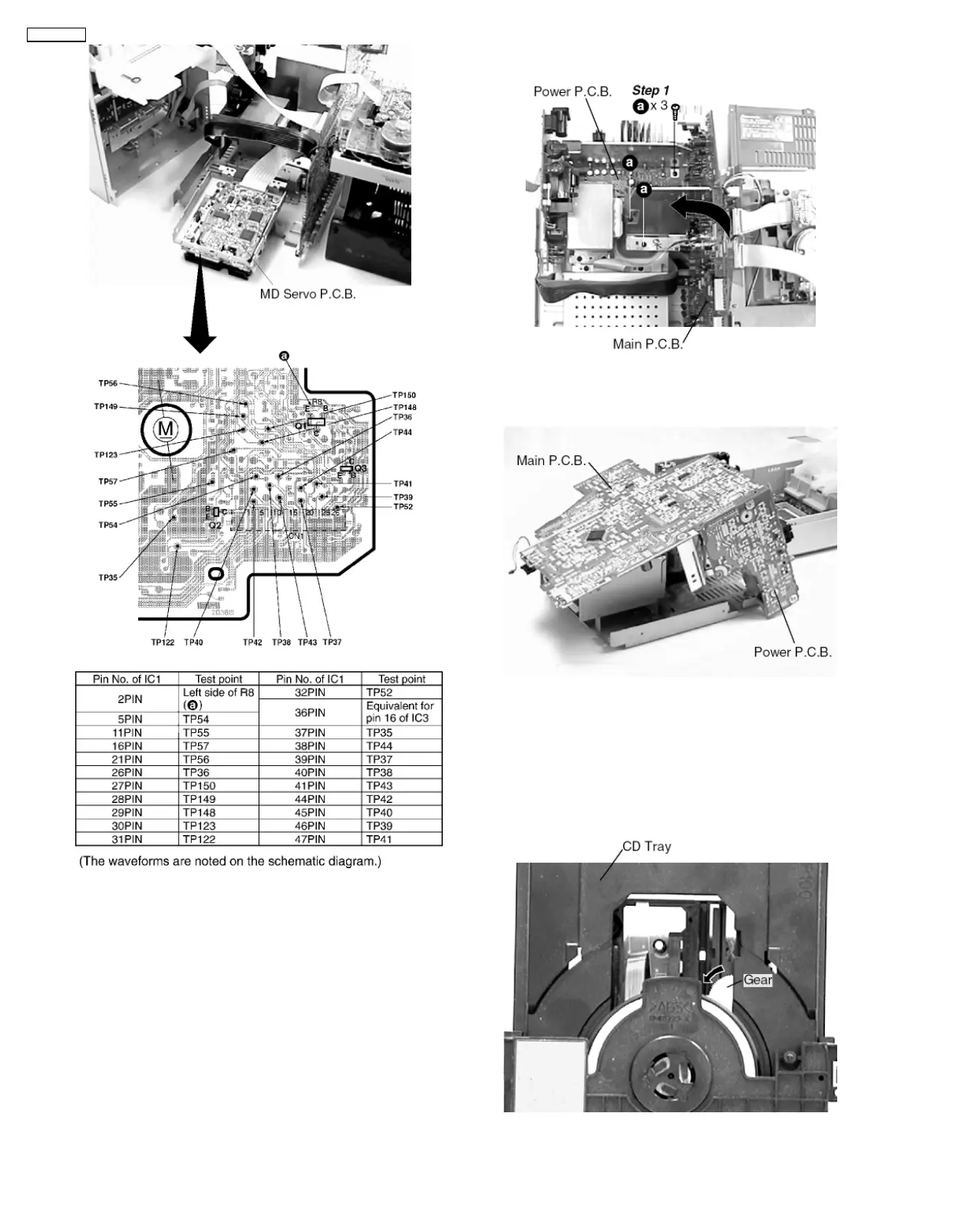

8.1.7. Checking for the Power P.C.B.
Step 2
Lift up the Main P.C.B. together with the Power P.C.B.
and rotate left then place the P.C.B. as shown in the following
figure.
• Check the Power P.C.B. as shown.
8.2. Disassembly and Assembly of
the Disc Tray and CD Traverse
Unit
8.2.1. Disassembly of the Disc Tray.
Step 1
Turn the gear counter clock wise until the CD Tray starts
to move out.
12
SA-PM30MD
