Panasonic SA-PM35MD - Page 16

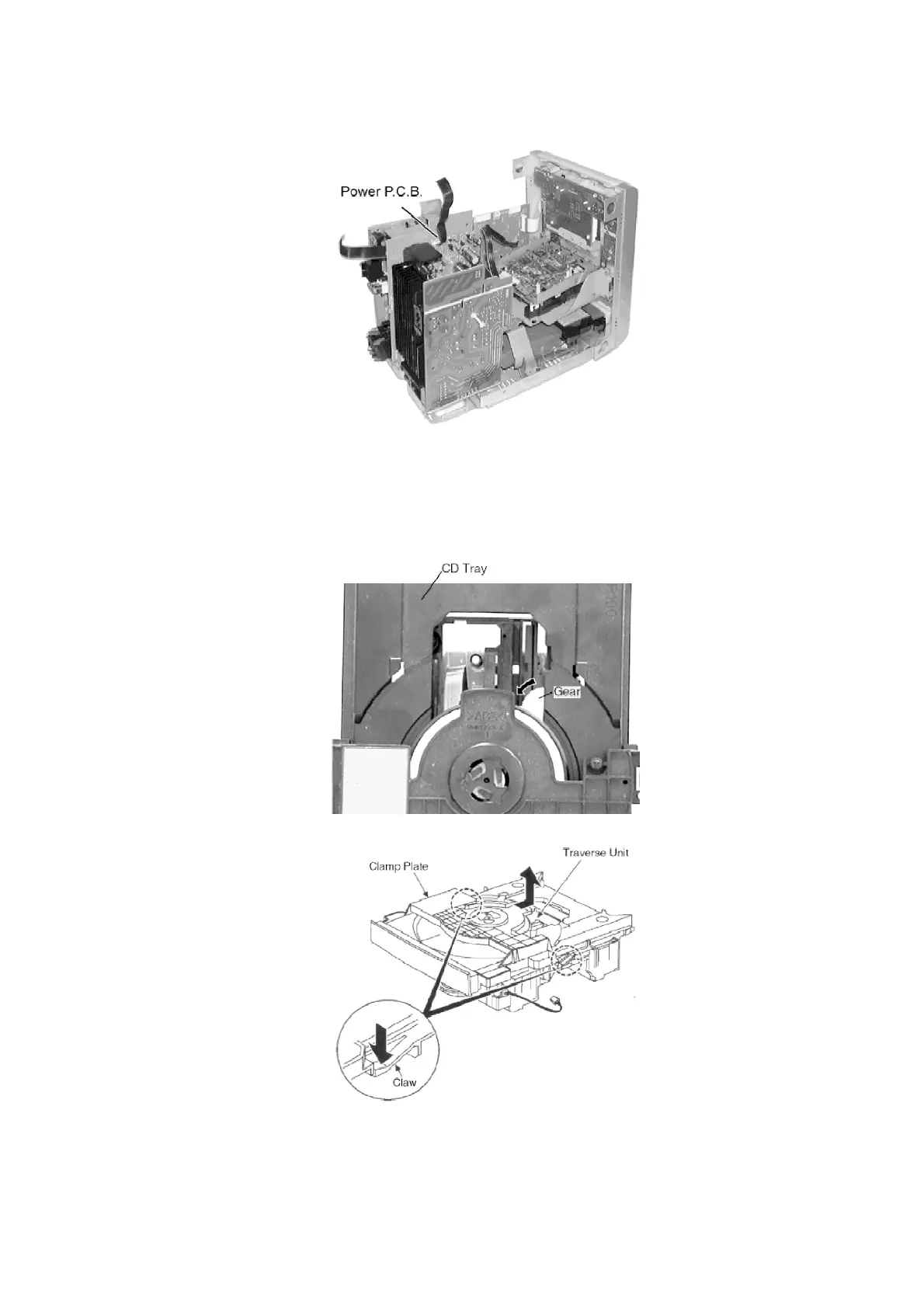

- Check the Power P.C.B. as shown.
7.2. Disassembly and Assembly of the Disc Tray and CD Traverse
Unit
7.2.1. Disassembly of the Disc Tray.
Step 1 Turn the gear counter clock wise until the CD Tray starts to move out.
Step 2 Release the 2 claws and remove the clamp plate in the direction of the arrow.
16
