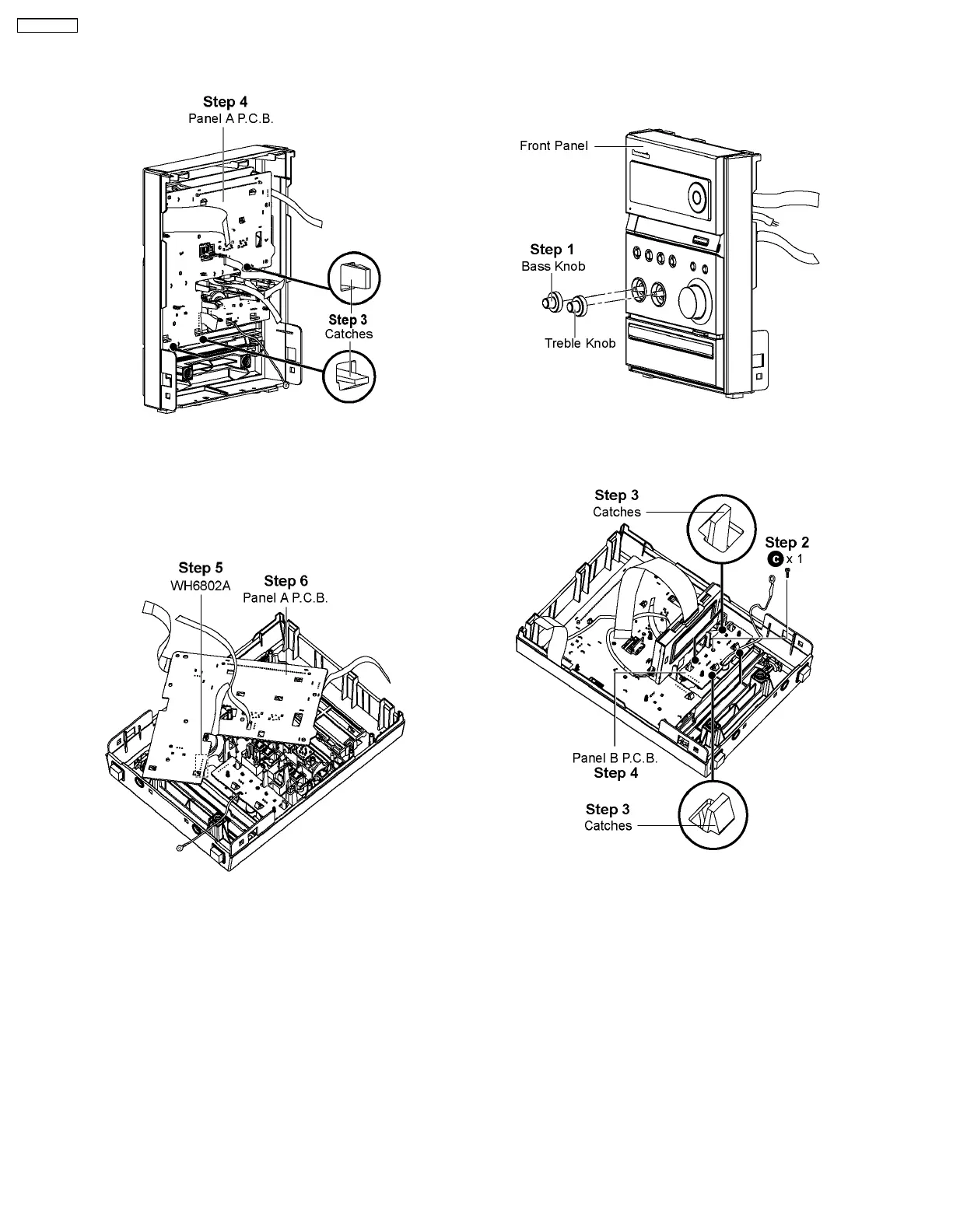

Step 2 : Remove 7 screws on the Panel A P.C.B..
Step 3 : Release all the catches.
Step 4 : Release Panel A P.C.B..
Note: During reassembling procedures, ensure Panel A
P.C.B. is fully catched onto Front Panel.
Step 5 : Desolder 6P cable (WH6802) at Panel A P.C.B..
Step 6 : Remove Panel A P.C.B..
Note: During reassembling procedures, ensure 6P cable
(WH6802) are soldered on Panel A P.C.B..
8.7. Disassembly of Panel B P.C.B.
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
Step 1 : Remove the Bass Knob and Treble Knob.
Step 2 : Remove 1 screw from Panel B P.C.B..
Step 3 : Release all the catches.
Step 4 : Release Panel B P.C.B..
Note: During reassembling procedures, ensure Panel B
P.C.B. is fully catched onto Front Panel.
