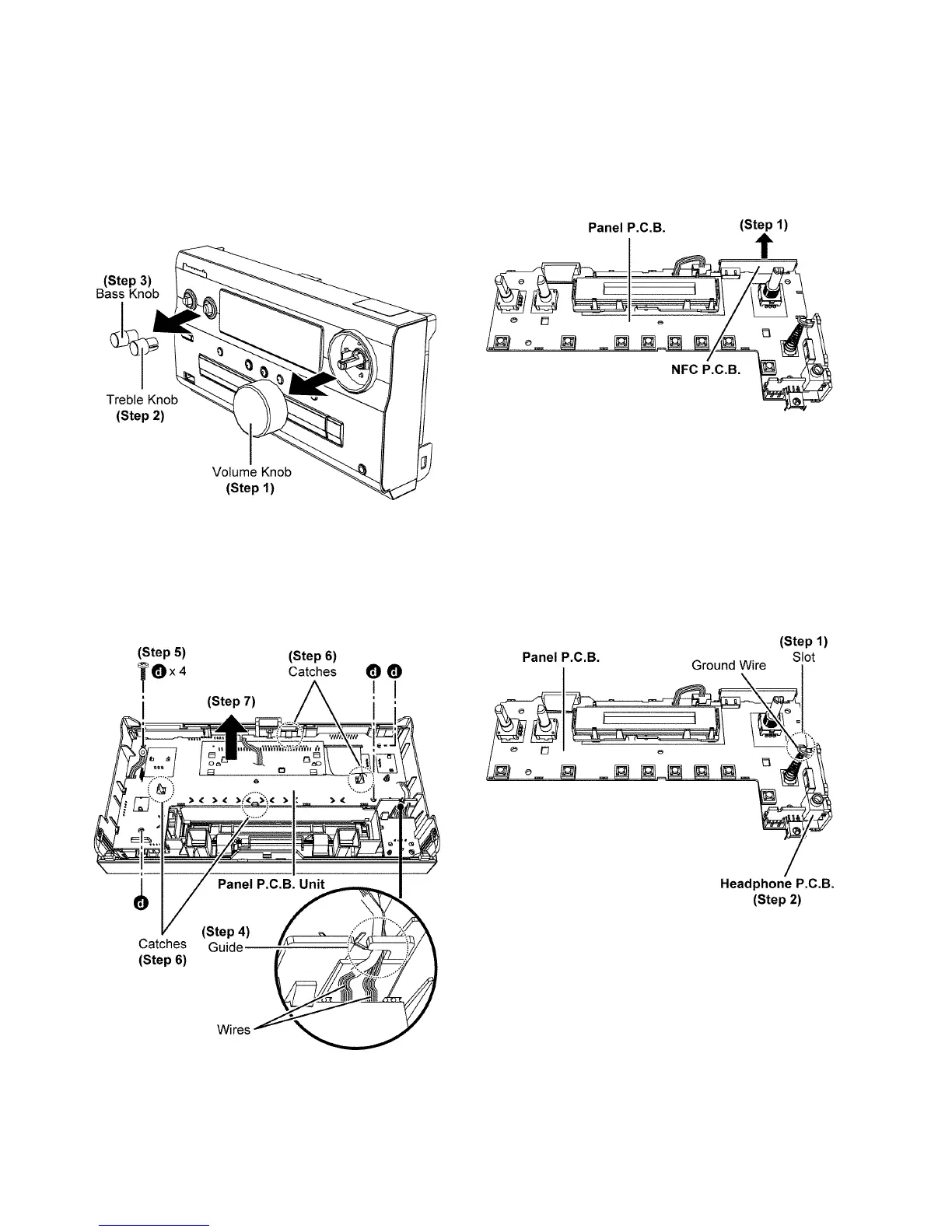

8.6. Disassembly of Panel P.C.B.
Unit
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove Volume Knob.
Step 2 : Remove Treble Knob.
Step 3 : Remove Bass Knob.
Step 4 : Release wires from the guide.
Step 5 : Remove 4 screws.
Step 6 : Release catches.
Step 7 : Remove Panel P.C.B. Unit.
8.7. Disassembly of NFC P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel P.C.B. Unit”
Step 1 : Remove NFC P.C.B. from Panel P.C.B..
8.8. Disassembly of Headphone
P. C. B .
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel P.C.B. Unit”
Step 1 : Release ground wire from slot.
Step 2 : Remove Headphone P.C.B. from Panel P.C.B..
