Step 8 : Connect 15P wire at connector (CN1100) on Main

P. C. B ..

Step 9 : Check SMPS P.C.B. according to the diagram shown.

9.3. Checking of Main and CD Inter-

face P.C.B.

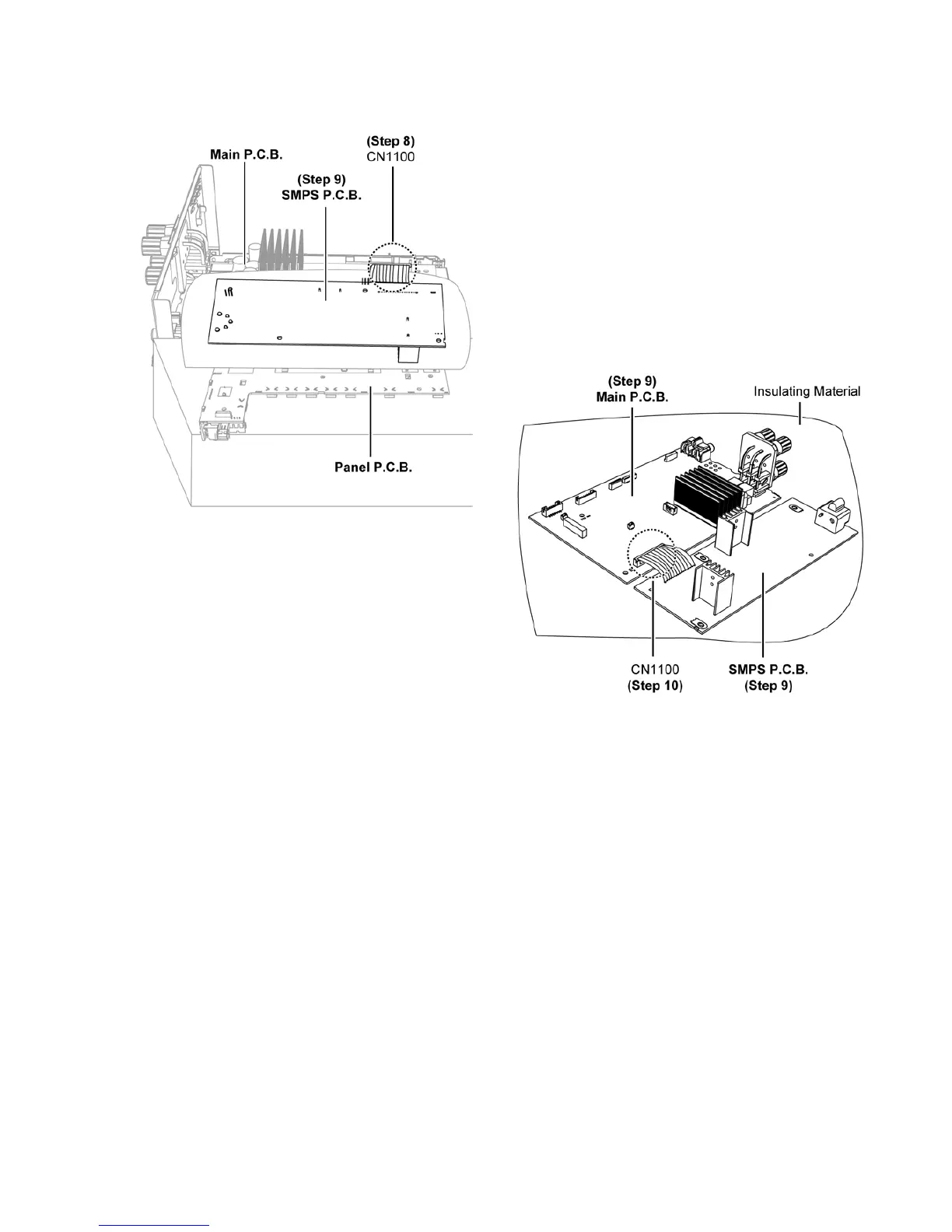

Step 1 : Remove Top Cabinet.

Step 2 : Remove Front Panel Unit.

Step 3 : Remove Panel P.C.B..

Step 4 : Remove SMPS P.C.B..

Step 5 : Remove Main P.C.B..

Step 6 : Remove Inner Chassis.

Step 7 : Remove Tuner P.C.B..

Step 8 : Remove CD Mechanism Unit.

Step 9 : Place Main P.C.B. & SMPS P.C.B. on an insulated

material.

Step 10 : Connect 15P wire at connector (CN1100) on Main

P. C .B ..
