40

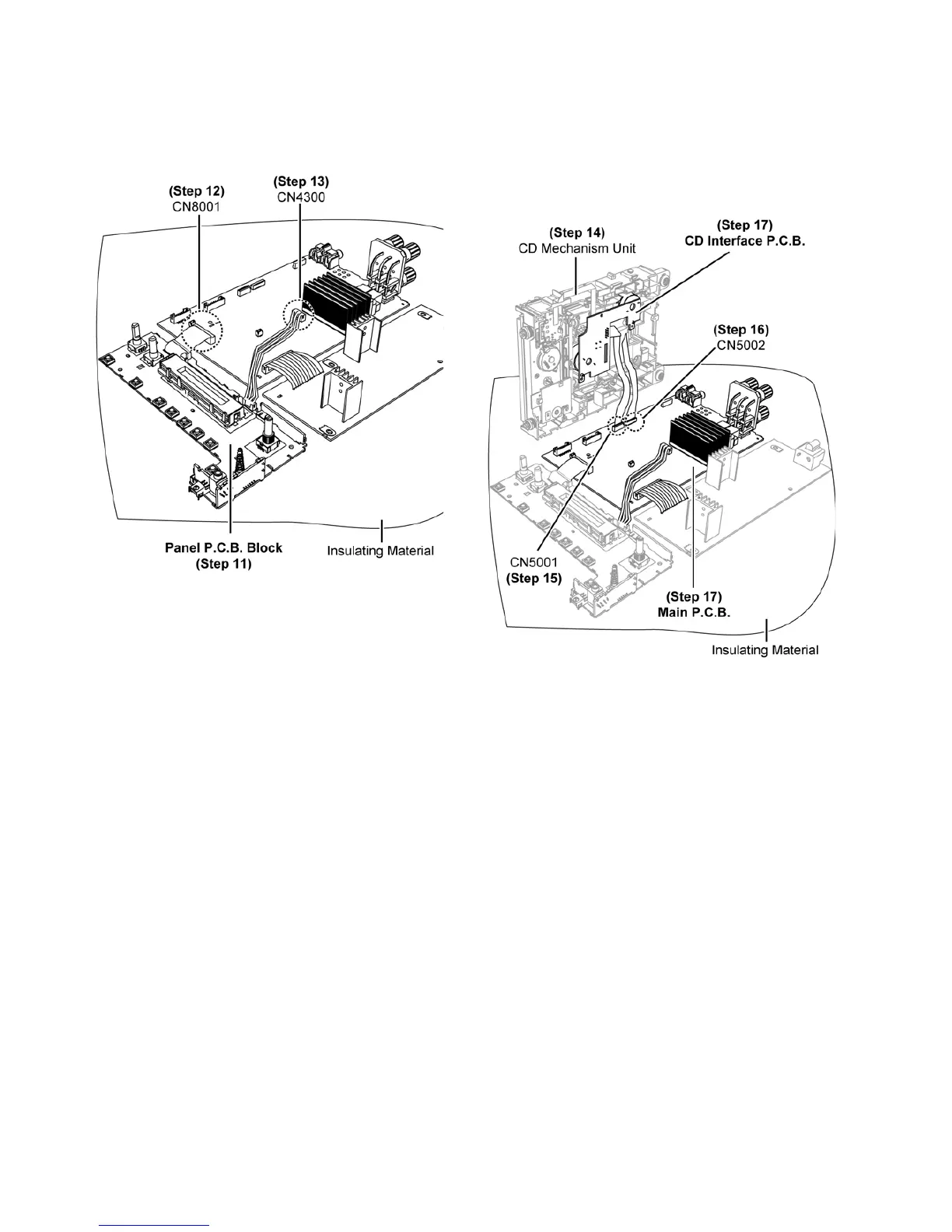

Step 11 : Place Panel P.C.B. on an insulated material.
Step 12 : Connect 21P FFC at connector (CN8001) on Main
P. C.B . .
Step 13 : Connect 5P wire at connector (CN4300) on Main
P. C.B . .
Step 14 : Place CD Mechanism Unit on an insulated material.
Step 15 : Connect 10P FFC at connector (CN5001) on Main
P. C. B ..
Step 16 : Connect 24P FFC at connector (CN5002) on Main
P. C. B ..
Step 17 : Check Main and CD Interface P.C.B. according to the
diagram shown.
