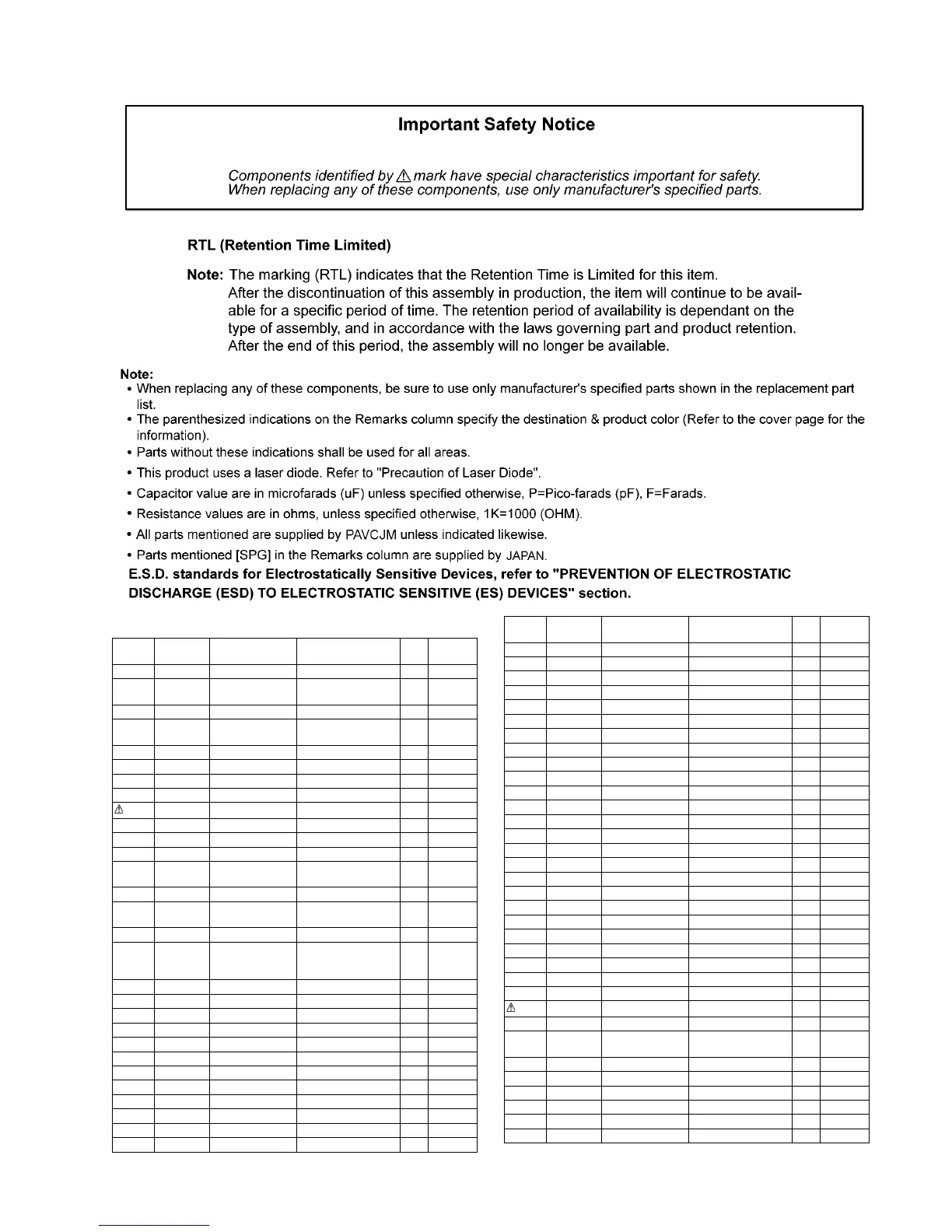

15.4. Electrical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 RFKB5159AA MAIN P.C.B W/
DATA
1
PCB2 REP5159AB NFC P.C.B 1
PCB3 REP5159AC TUNER P.C.B 1 (RTL)
PCB4 REP5159AD BLUETOOTH P.C.B 1
PCB5 REP5159AE USB P.C.B 1 (RTL)
PCB6 REP5160AA SMPS P.C.B 1 (RTL)
PCB7 REP5160AB PANEL P.C.B 1 (RTL)
PCB8 REP5160AC IR SENSOR P.C.B 1 (RTL)
PCB9 REP5160AD HEADPHONE P.C.B 1 (RTL)
PCB10 REP4945A CD INTERFACE
P.C.B
1 (RTL)
INTEGRATED CIR-
CUITS
IC52 VUEALLPT094 IC 1 (E.S.D)
JIGS &
ADJ
IC2900 C0DBAYH00005 IC 1 (E.S.D)
IC5701 C0DAAYY00064 IC 1 (E.S.D)
IC5801 C0DAAYY00072 IC 1 (E.S.D)
IC5823 C0DBGYY05244 IC 1 (E.S.D)
TRANSISTORS
Q5720 B1BABG000007 TRANSISTOR 1 (E.S.D)
Q5760 B1ADCF000001 TRANSISTOR 1 (E.S.D)
Q5761 B1ABCF000176 TRANSISTOR 1 (E.S.D)
Q5863 B1ABGC000001 TRANSISTOR 1 (E.S.D)
Q5864 B1ABGC000001 TRANSISTOR 1 (E.S.D)
Q9300 B1HFCDE00002 TRANSISTOR 1 (E.S.D)
QR5762 B1GBCFJA0006 TRANSISTOR 1 (E.S.D)
QR5862 B1GBCFGG0030 TRANSISTOR 1 (E.S.D)
DIODES
D2907 B0JCPG000005 DIODE 1 (E.S.D)
D5701 B0EDNR000001 DIODE 1 (E.S.D)
D5702 B0EAKT000063 DIODE 1 (E.S.D)
D5704 DZ2J200M0L DIODE 1 (E.S.D)
D5705 DZ2J200M0L DIODE 1 (E.S.D)
D5706 DA2J10100L DIODE 1 (E.S.D)
D5707 DZ2W22000L DIODE 1 (E.S.D)
D5710 DA2J10100L DIODE 1 (E.S.D)
D5712 B0EAMM000057 DIODE 1 (E.S.D)
D5713 DZ2J30000L DIODE 1 (E.S.D)
D5760 DA2J10100L DIODE 1 (E.S.D)
D5802 B0HBSM000054 DIODE 1 (E.S.D)
D5804 DA2J10100L DIODE 1 (E.S.D)
D5807 DA2J10100L DIODE 1 (E.S.D)
D5812 DA2J10100L DIODE 1 (E.S.D)
D9300 B0ADDH000009 DIODE 1 (E.S.D)
D9301 B0ADDH000009 DIODE 1 (E.S.D)
D9303 DZ2J051M0L DIODE 1 (E.S.D)
D9304 DZ2J051M0L DIODE 1 (E.S.D)
DZ5701 ERZV10V511CS SURGE ABSORBER 1 (E.S.D)
VARIABLE RESIS-
TORS
VR9200 EVEKE2F3024B VOLUME JOG 1
VR9201 K9AA012Y0002 BASS JOG 1
VR9202 K9AA012Y0002 TREBLE JOG 1
VARISTOR
