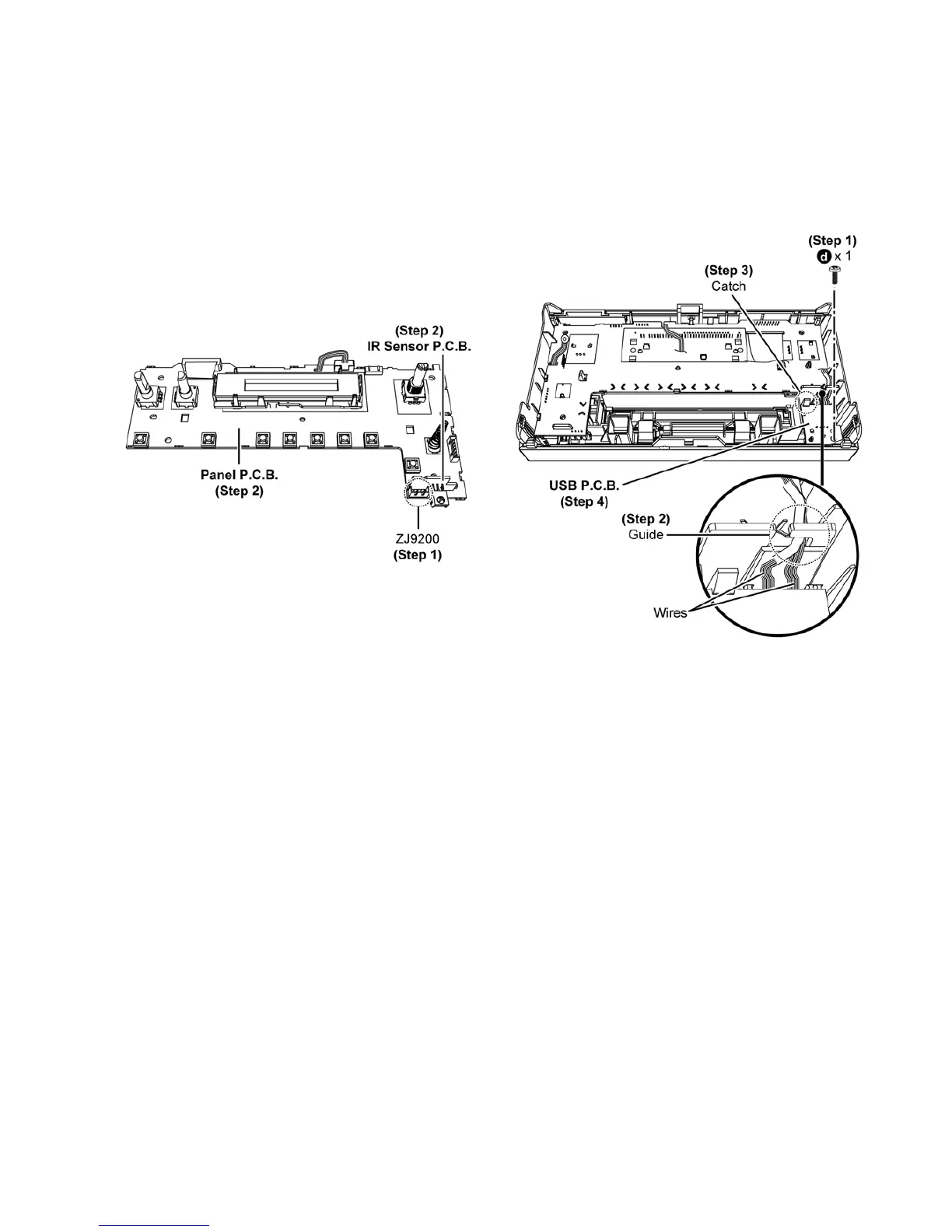

8.9. Disassembly of Panel & IR Sen-
sor P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel P.C.B. Unit”
• Refer to “Disassembly of NFC P.C.B.”
• Refer to “Disassembly of Headphone P.C.B.”
Step 1 : Detach IR Sensor P.C.B. at connector (ZJ9200) from
Panel P.C.B..
Step 2 : Remove IR Sensor P.C.B. and Panel P.C.B..
8.10. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove screw.
Step 2 : Release wires from the guide.
Step 3 : Release catch.
Step 4 : Remove USB P.C.B..
