Panasonic SA-PMX70 - Disassembly of Inner Chassis

29
8.13. Disassembly of Inner Chassis
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”

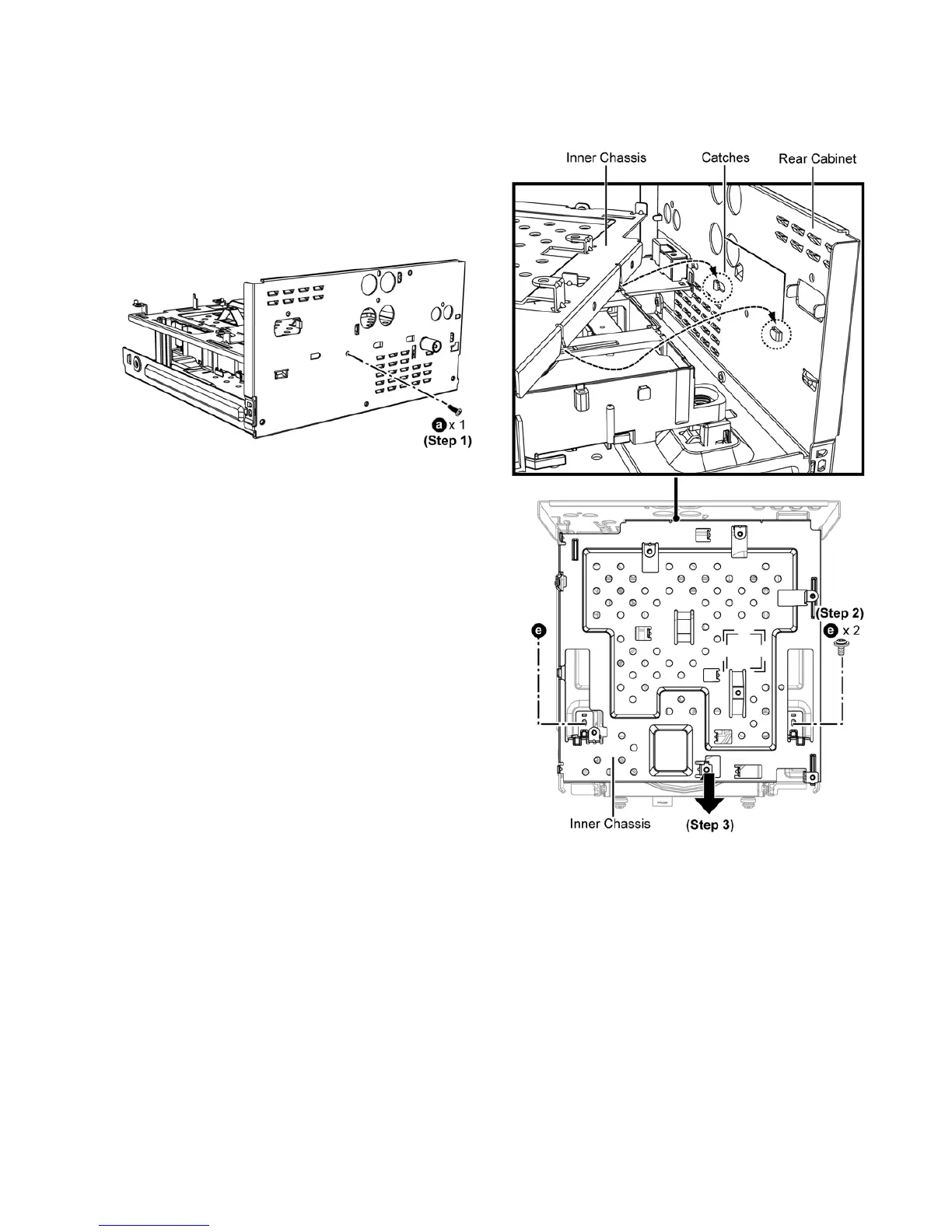

Step 1 : Remove screw.
Step 2 : Remove 2 screws.
Step 3 : Lift up to release Inner Chassis from Rear Cabinet.
Caution : During assembling, ensure the Inner Chassis is
fully inserted & properly seated onto the catches
