28

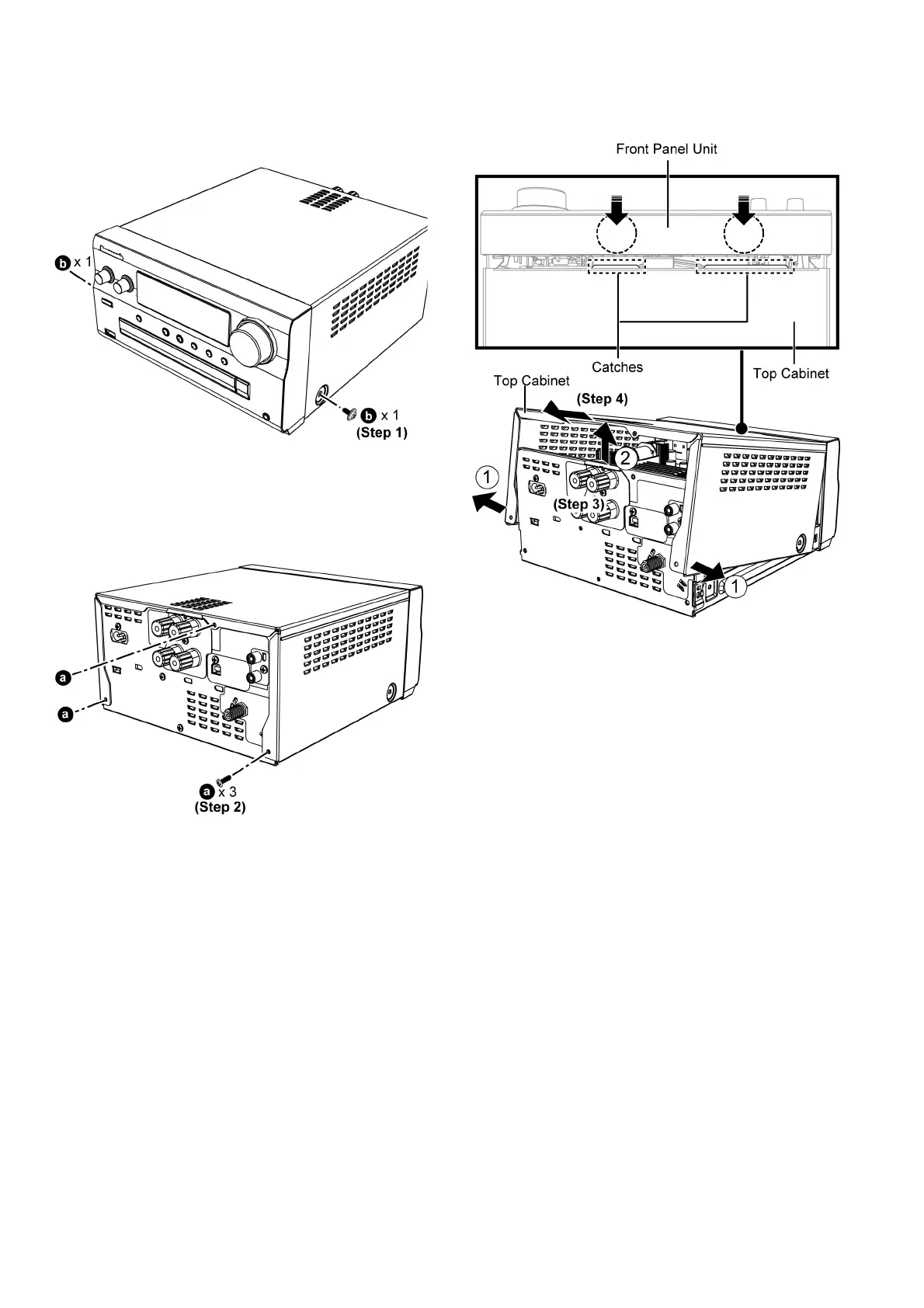

8.4. Disassembly of Top Cabinet
Step 1 : Remove 2 screws.
Step 2 : Remove 3 screws.
Step 3 : Lift up Top Cabinet as arrow shown.
Step 4 : Remove Top Cabinet.
