Panasonic SA-PT460 - Disassembly Procedures (Cradle PCB and AC Inlet); 9.13. Disassembly of Ipod Cradle P.C.B.; 9.14. Disassembly of AC Inlet P.C.B.

9.13. Disassembly of Ipod Cradle
P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Follow (Step 1) to (Step 8) of Item 9.7.
•
• •
• Follow (Step 1) to (Step 5) of Item 9.12.

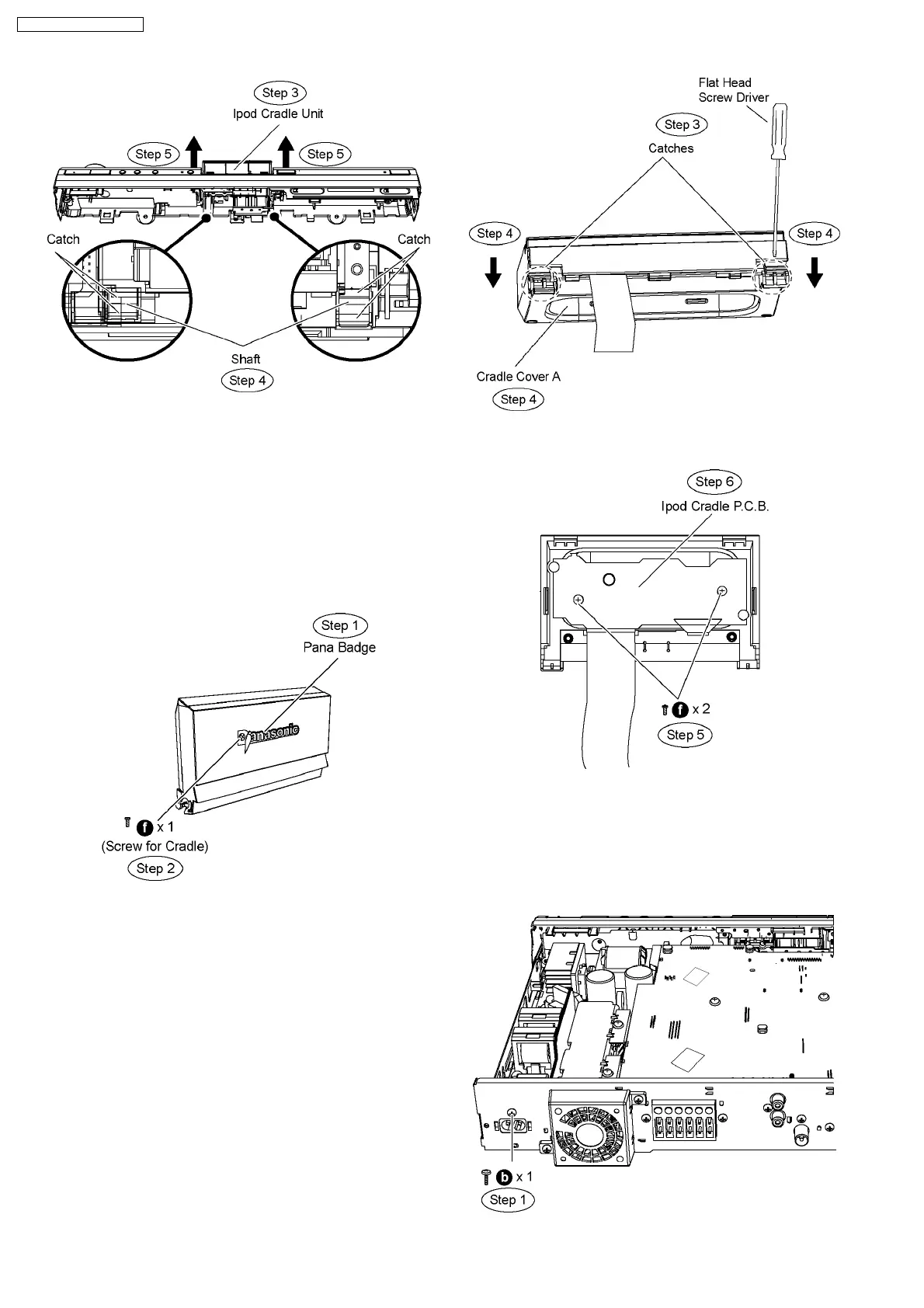

Step 1 Peel off the portion of the pana badge (paste type).
Step 2 Remove the screw for cradle.
Caution Note: Keep the screw in safe place. Place it back
during assembling.
Step 3 Use a flat head screw driver to release the catches.
Step 4 Remove the Cradle Cover A in the direction of Arrows.
Step 5 Remove 2 screws on the Ipod Cradle P.C.B.
Step 6 Remove Ipod Cradle P.C.B.
9.14. Disassembly of AC Inlet P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Disassembly of AC Inlet Shield Plate Unit.
Step 1 Remove 1 screw at the rear panel.
46
