9.30. Disassembly of Coprocessor
P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Follow (Step 1) to (Step 8) of Item 9.15.

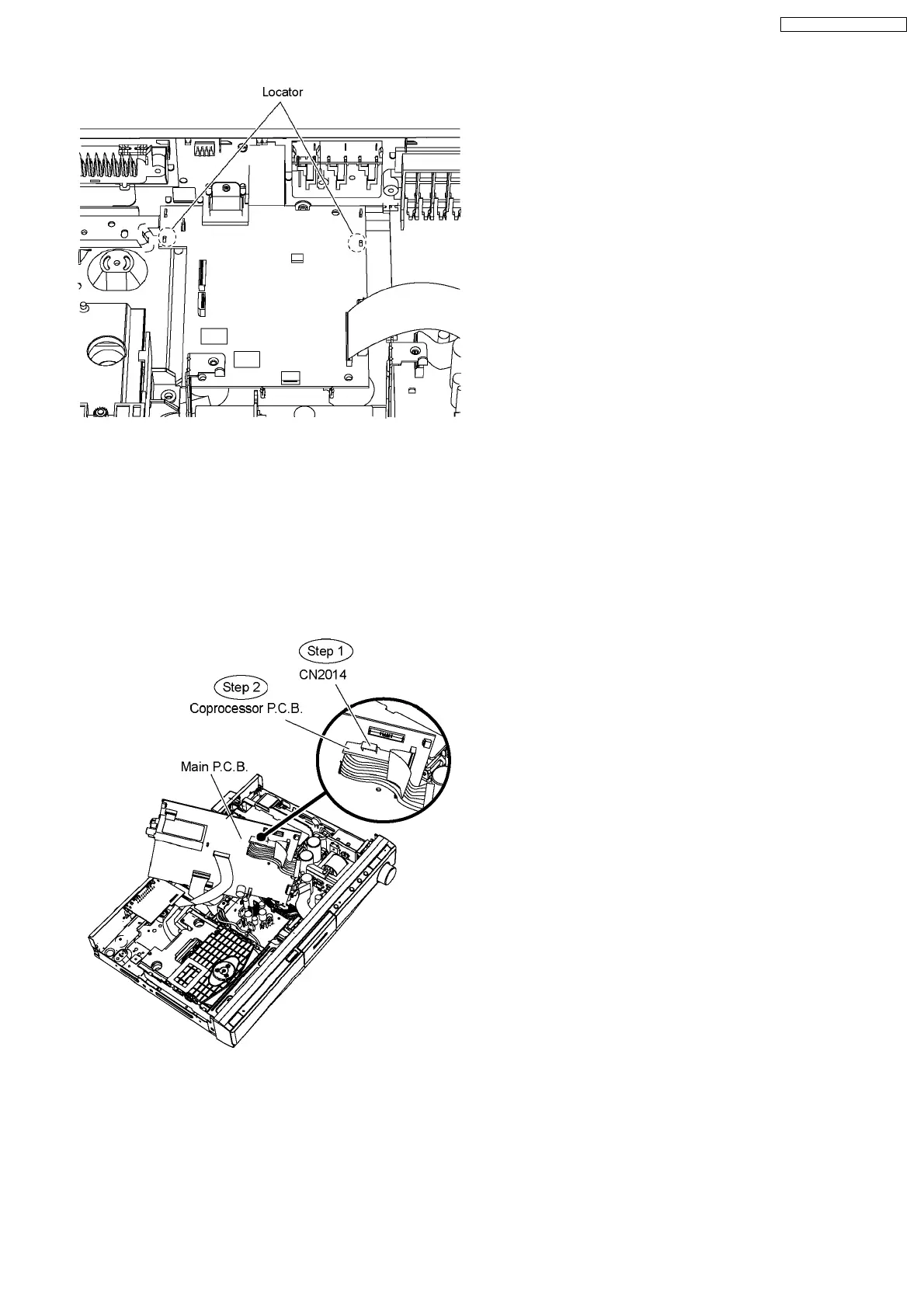

Step 1 Detach Coprocessor P.C.B. at the connector (CN2014)
on Main P.C.B.
Step 2 Remove Coprocessor P.C.B.
