Panasonic SA-PT460 - 9.15. Disassembly of Main P.C.B.; Main P.C.B. Disassembly Steps

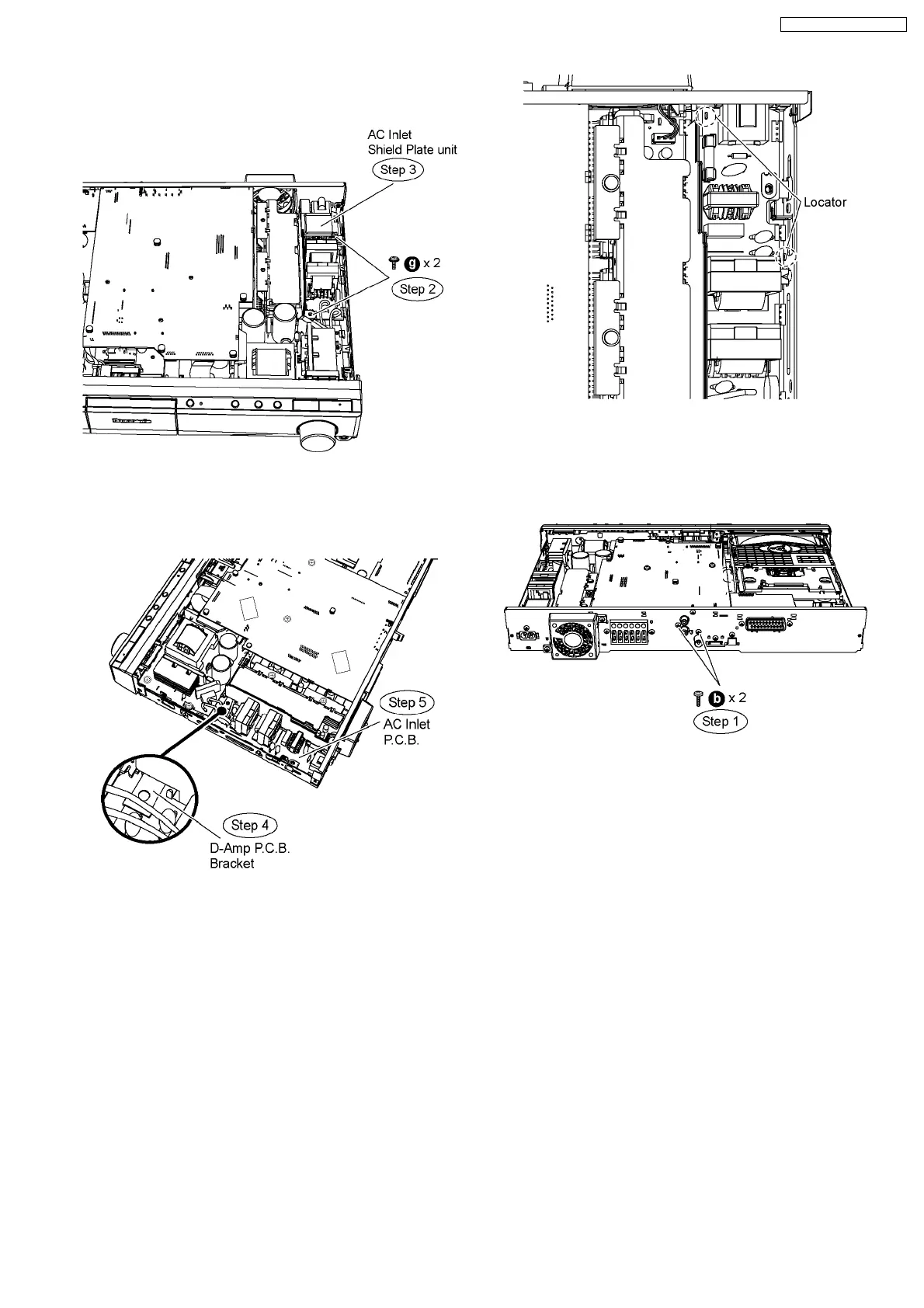

Step 2 Remove 2 screws from the AC Inlet shield plate unit.
Step 3 Remove the AC Inlet shield plate unit.
Caution Note: Keep the AC Inlet shield plate unit in safe
place. Avoid denting it. Place it back during assembling.
Step 4 Remove the D-Amp P.C.B. bracket.
Step 5 Remove AC Inlet P.C.B.
Caution Note: Keep the D-Amp P.C.B. bracket in safe
place. Avoid denting it. Place it back during assembling.
Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.
9.15. Disassembly of Main P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Remove 2 screws at the rear panel.
Step 2 Remove2screwsonMainP.C.B.
Step 3 Detach 17P FFC cable at the connector (CN2007) on
the Main P.C.B.
Step 4 Detach 4P FFC cable at the connector (CN2013) on the
Main P.C.B.
Step 5 Detach 13P cable at the connector (CN2016) on the
Power Supply P.C.B.
Step 6 Detach 28P cable at the connector (CN6001) on the
Power Supply P.C.B.
47
SA-PT460EB / SA-PT460EG
