Panasonic SA-PT460 - 10.2. Assembling Procedure; 10.2.1. Assembly of CD traverse

10.2.1. Assembly of CD traverse

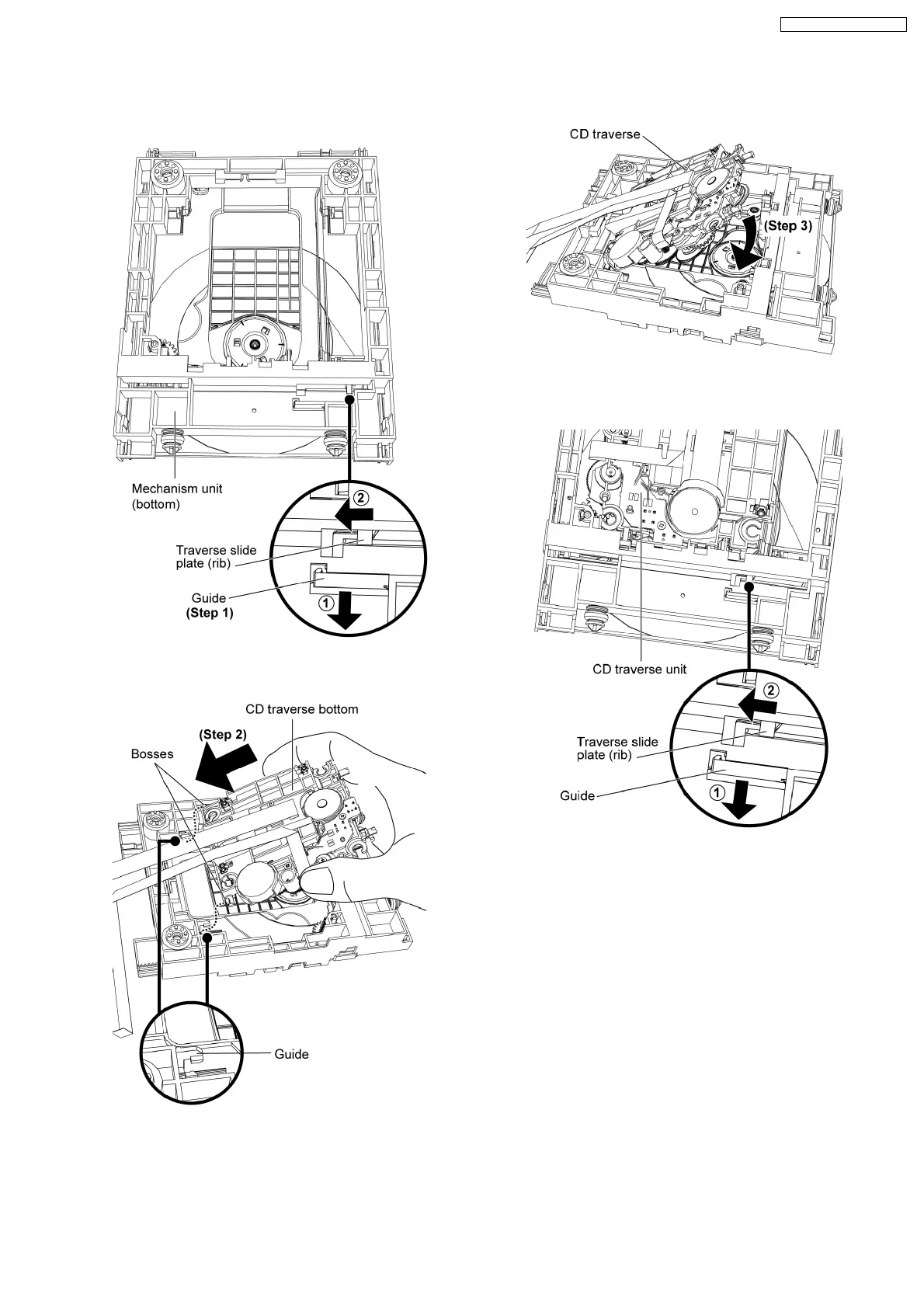

Step 1: Release the guide and slide the traverse
slide palte (rib) as arrows shown.
Step 2: Slot the CD traverse approximately 45°
into the mecha chassis as arrow shown.
Note: Ensure the bosses fix exactly onto the
guides.
Step 3: Place down the CD traverse as arrow
shown.
Step 4: Release the guide and slide the traverse
slide plate (rib) in the direction of arrows shown to
lock in the CD traverse unit.
